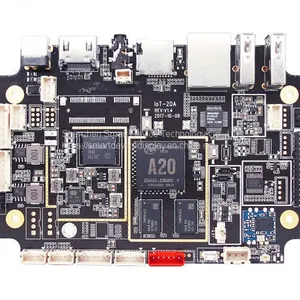

IoT Mainboard IoT-20A
Tablet Motherboard,Android Mini Pc Pcb Board
Production Features
1.High Definition. Maximum supporting 1080P decoding and variable LCD screens with LVDS signal.
2.Support remote、SD card/TF card、PC etc variety of upgrade mode
Main Hardware Index | |
Size | 124MM * 88MM |
CPU | Allwinner A20 , dual-core，main frequency 1.0 GHz |
Internal Memory | 1G DDR3 |
Built-inMemory | EMMC 8G(16/32G optional) |
LVDS Output | 1，can drive 50/60Hz LCD panel directly |
HDMI Output | 1,Support 1080P Output |
Video Playing | Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 etc |
Audio format support | MP3、MP2、ACC、WAV、WMA, etc |
Power amplifier output | Support left and right channel output, built-in dual 4R/20W, 8R/10W power amplifier |
Earphone output | Support 1-way headphone interface |
USB2.0 Ports | 2 USB HOST |
serial port | 2 channels available serial port |
Other extended interfaces | 1 IIC, 4 IO interface, ADC and key interface |
WIFI | built-in WIFI |
Ethernet | 1，10M/100M self-adapting Ethernet |
Image Format | Support BMP、JPEG、PNG、GIF etc |
RTC Real Time Clock | Support |
Timing Switch | Support |
Power supply | 12V/3A |
IR/LED | Gongyang LED |
System Upgrade | Support USB/T card/network upgrade |
Other | / |
