General information:

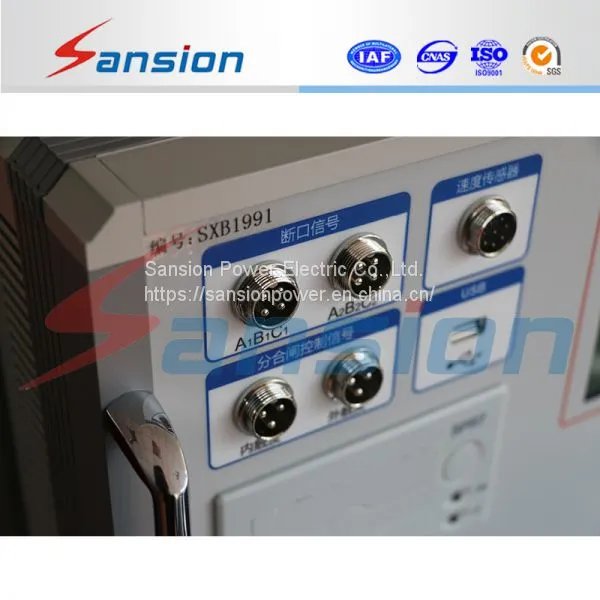

SXGK-F is designed to test the dynamic characteristics various voltage degree vacuum, SF6, with oil and etc high voltage and low voltage circuit breakers.
Features:
√ Auto identify open or close status. To give correspondent close or open prompt according to channel's status.
√ Can detect and prompt connection status of 6 channels (12 channels for option), it's convenient to detect connection.
√ 100 groups data storage.
√ Large LCD, can read clearly even in direct sunlight.
√ Friendly English interface, easy to operate.
√ Graphical analysis function, to realize waveform and measuring processed data to displayed at same screen.
√ Delay protection, auto switch off coil voltage after breaker acting, to protect breaker and HV tester.;
√ Open-closed test by auto or manual is selectable.
√ High/low voltage test is all available.
Specifications:
| Time test: | 6 channels (12 channels is for option) |
| Open(Close)time | |
| Open(Close)one phase no- synchronism | |
| Open(Close)phase to phase no-synchronism | |
| Close(Open)bounce time(bounce numbers) | |
| Test range: | 0.1ms~999.99ms |
| Accuracy: | 1%±(1% read+2digits) |
| Velocity test: | Open(Close)velocity |
| Pointed periods of time(travel period or angle period)average speed | |
| Open(Close)max.velocity. | |
| Range: | 1mm Sensor:0.01~25.00m/s |
| 0.1mm sensor: 0.001~2.50m/s | |
| 0.5°angle sensor: 1cycle/ 0.5° | |
| Accuracy: | 1mm Sensor ±(1% reading+1digit) |
| 0.1mm sensor ±(2% reading +1digit) | |
| 0.5°angle sensor ±(1% reading+1digit) | |
| Travel test: | Active contactor travel |
| Contactor travel (open distance) | |
| Overshoot travel or bounce travel (amplitude) | |
| Sensor:50mm,Resolution:0.1mm | |
| Sensor:300mm(option),Resolution:1mm | |
| 360line sensor:360,resolution:0.5 ,accuracy: ±1% | |
| Screen: | 320×240LCD |
| Data Storage: | 100 groups |
| Printer: | Build-in thermal printer |
| AC source: | AC 220V ± 10%;50Hz ± 2% |
| DC source: | Output voltage:30~245V continuous adjustment,output current:≤ 15A(short time) |
| Control unit oversize: | 380×280×140mm |
| Working Conditions: | Temperature:-10ºC~+50ºC RH:≤90% |
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
