High and Low Voltage Circuit Breaker Testing Equipment
General Information:

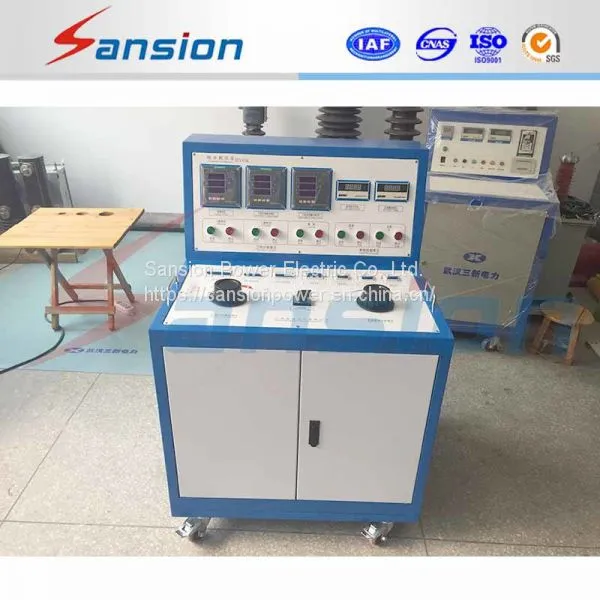

SXGK Series HV/LV Switch Cabinet Test Bench is mainly applied for ex-work energized testing for high voltage and low voltage cabinet manufacturers. The test bench could provide various AC/DC power source, in order to detect switch cabinet.
Features:
√ Reading directly: Digital meters to display current, voltage, power factor test value.
√ Measuring accurately: High precision, test value is accurate.
√ Full protections: Each circuit is with air switch protection.
√ Portable: Small size, light weight, easy to move.
Main Technical specifications:
√ Input: 3 phase 4 line AC 380V
√ Output voltage and current:
3 phase AC 0-50A output (10V, adjustable) one group
3 phase AC 100V output (fixed value) one group
√ AC operating voltage output is AC 0-380V, 220V, the current is conventional and adjustable.
√ DC operating voltage output DC 0-300V adjustable.
√ Single phase AC 220V output (fixed value, plug type) two groups.
√ 3 phase 4 line AC 380V output (fixed value, wiring port) one group.
√ Necessary output units to be increased output protection, and equipped with air switch.
√ Power supply: AC 110V/115V/120V/127V/220V/230V/240V is optional
√Input frequency: 50Hz/60Hz is optional
Please kindly contact with Sansion Power Elctric for details information, we can select correctly designed test system for you.
