Help Center50dB Max Noise Level DC Gear Motor , Door Lock Actuator Planetary Gear Motor GM20-130SH
Related Products
-
Precision High Torque Gear Motor Stable Performance for Office Automatic Equipment GM16-050SHUS$ 5.6 - 6.3MOQ: 2000 Pieces -
Waterproof DC Gear Motor 16mm Diameter With 60RPM Rated Load Speed GM16-030SAUS$ 4.3 - 4.8MOQ: 2000 Pieces
-
DC Gear Motor 6 Volt Mental for Fully Automatic Electronic Door Lock GM1024-N10VAUS$ 4.3 - 4.8MOQ: 2000 Pieces
-
Gearbox Motor 5V 6V 12V Small High Torque DC Motor GM12-N10VA for Door LockUS$ 3.5 - 4.2MOQ: 2000 Pieces
-
10mm 4.5V / 1.5V Metal Gear DC Gear Motor Low Noise and Large Torque GM10F-M10VAUS$ 11.5 - 12.2MOQ: 2000 Pieces
Detailed Product Description
| Voltage Range: | 3V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 20mm | No Load Speed: | 43RPM |
| No Load Current: | 80mA | Rated Load Torque: | 725g.cm |
| Rated Load Speed: | 34RPM | Rated Load Current: | 200mA |
| Gear Ratio: | 125:1 |
20mm 3V / 5V / 6V Metal Gear-box motor DC Gear Motor For Door Lock
- DC Gear-Box Motor
- Diameter : Φ20.0mm
- Output : APPROX 0.1~10.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Household application
electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
- Automotive products
conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
- Medical equipments
blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
- Electric power tools
electric drill, screwdriver and etc.
- cosmetic tool
eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
- Office automation equipments
OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
- Toys and models
radio control model, automatic cruise control, ride-on toy and etc.
- Industrial automation
display, flow control valves and etc.
- Precision instruments
monitor, optics instruments,automatic vending machine and etc.
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 25 | 1 : 31 | 1 : 53 | 1 : 78 | 1 : 125 | 1 : 156 | 1:195 | 1:250 | 1:390 | / | / | / | |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM20F-130SH-15210-125 | 2.0-4.5 | 3.0V | 43 | 0.080 | 34 | 0.200 | 71 | 725 | 0.60 | 343.1 | 3500 | 0.65 | |
| GM20F-130SH-11340-78 | 6.0-9.0 | 8.0V | 83 | 0.060 | 70 | 0.160 | 83.3 | 850 | 1.28 | 392.2 | 4000 | 0.65 | |
| GM20F-130SH-11340-125 | 4.5-7.0 | 6.0V | 39 | 0.050 | 31 | 0.150 | 133.5 | 1362 | 0.90 | 549 | 5600 | 0.46 | |
| GM20F-130SH-11340-250 | 4.5-7.0 | 6.0V | 19 | 0.050 | 15 | 0.150 | 267 | 2724 | 0.9 | 1098 | 11200 | 0.46 | |

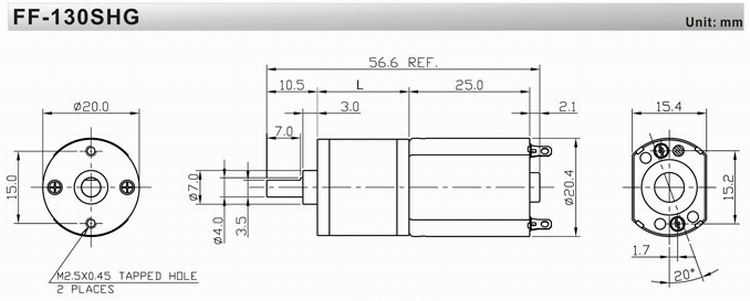

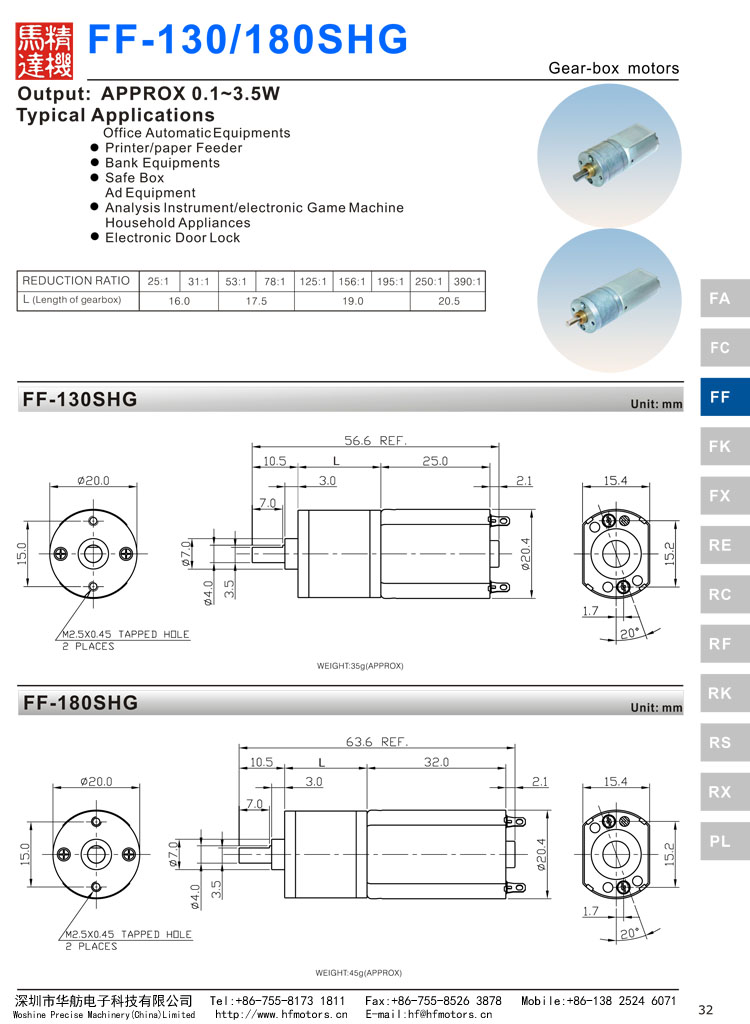

Drawing
Product Details Show
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
