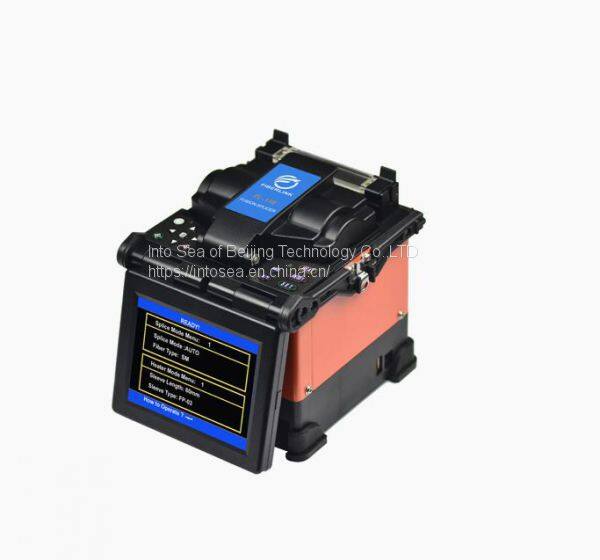

Fusion Splicer FL-118 Product Description
● Used for FTTH and ordinary fiber project
●Core to core alignment by PAS technology
● 8 sec splicing time and 30 sec heat time
●With 7200 mAh Ultra-large capacity Li battery
● 350 X or Y view, 280 X and Y view
●Large amplification and clear core
● 5 inch digital high-quality LCD screen, observe X and Y view at same time
● Three in one fixture, splicing single fiber, cable indoor and pig tail
● Built in large capacity lithium battery of 200 times splicing and heating
● Small size and light weight, 1.98KG including battery
●V type high power automatic heater with steel based thick film;high thermal efficiency, fast heating and long life
Fusion Splicer FL-118 Specifications
Model |
FL-118 Fusion Splicer |
Splicing Type |
SM, MM, DS, NZDS |
Splicing Loss |
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS) |
Return Loss |
>60dB |
Splicing Mode |
Manual, Half Auto, Auto |
Fiber Alignment |
Core to Core Alignment by PAS technology |
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
Splicing Time |
≤9s |
Heat Time |
≤30s |
Cleaved Length |
8～16mm |
Fiber Image/ Magnification |
350/280 |
View Display |
5 inch digital high-quality LCD screen |
Tension Test |
Standard 2N (option) |
Heat Shrinkable Sleeve |
60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity |
200 cycles splicing and heating, 3 hours charging time |
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
Electrodes Life |
3000, easy to replace electrodes |
Power Source |
≤20W |
Interface |
USB Convenient data download and software update |
Construction Lighting |
Built in high brightness, wide range of lights, easy to operate at night |
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, |
Weight (including battery) |
1.98 KG (including battery) |
Dimension (LxWxH) |
135mm(L)×158mm(W)×155mm(H) |

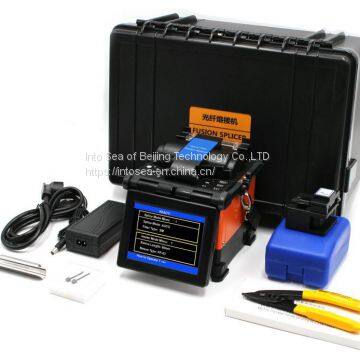

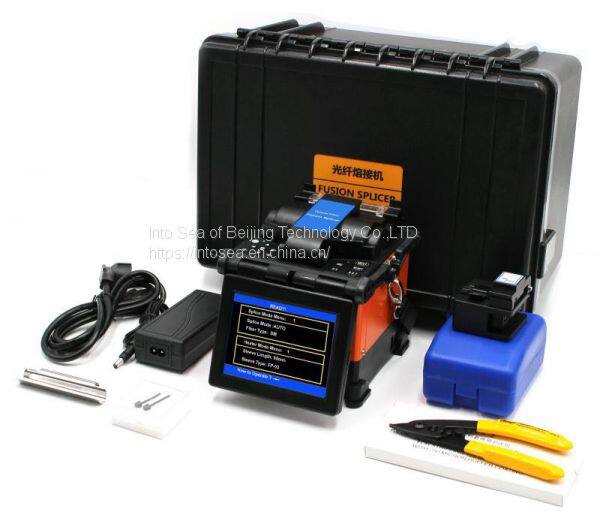

Fusion Splicer FL-118 Standard Configuration
Standard Configuration | ||
No |
Items |
Qty |
1 |
Fusion Splicer (FL-118) |
1 set |
2 |
Fiber Cleaver |
1 pc |
3 |
Fiber Stripper |
1 pc |
4 |
AC Adaptor |
1 pc |
5 |
Li Battery |
1 pc |
6 |
Charger |
1 pc |
7 |
Spare Electrodes |
1 pair |
8 |
Cooling Tray |
1 pc |
9 |
User Manual CD |
1 pc |
10 |
Carrying Case |
1 pc |
