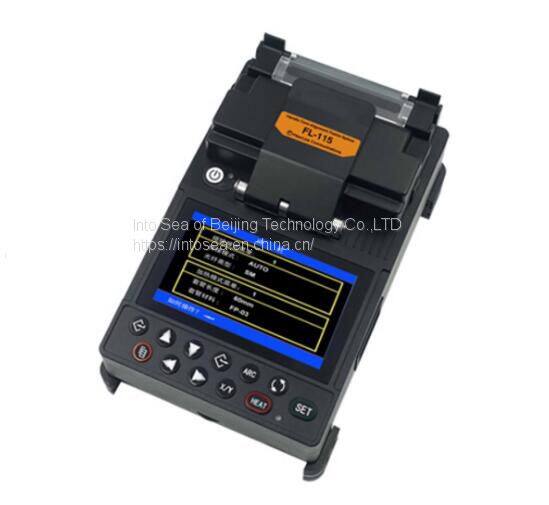

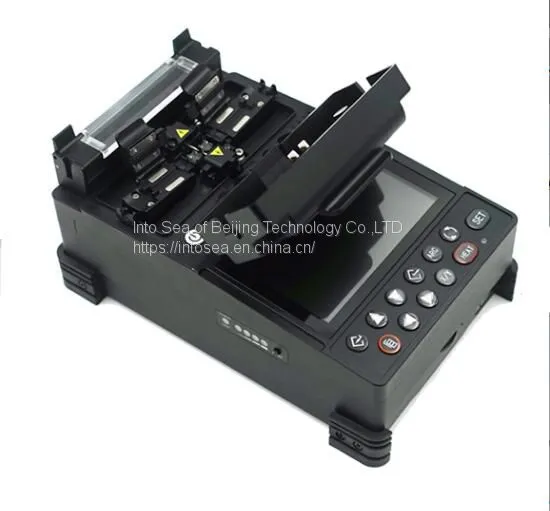

Fusion Splicer FL-115 Product Description
FL-115 Handheld Fusion Splicer is with high performance price ratio. With smart appearance, reliable quality, FL-115 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Fusion Splicer FL-115 Features
- Used for FTTH and ordinary fiber project
- Core to core alignment by PAS technology
- 8 sec splicing time and 30 sec heat time
- 300 X or Y view, 150 X and Y view
- 4.3 inch digital high quality LCD screen, observe X and Y view at same time
- Three in one fixture, splicing single fiber, cable indoor and pigtail
- Built in large capacity lithium battery of 200 times splicing and heating
- Small size and light weight, 1.6KG including battery
Fusion Splicer FL-115 Specifications
Splicing loss |
0.01dB(MM) 0.02dB(SM) 0.05dB(DS/NZDS/G/G.655/G.657) |
Fiber cleaver length |
8 to 16mm with 250um coating diameter, 16mm with 900um coating diameter |
8s |
|
Tube heat time |
30s |
Protection sleeve length |
25mm, 40mm, 50mm |
Dimension |
200*130*98cm |
Display |
Color 3.5Inch TFT |
Interface |
USB suitable for download and update |
Splicing memory |
10000 |
Electrode Span |
at least 5000times |
Operation Tem |
-18~50 |
Storage Tem |
-40~80 |
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, |
Weight (including battery) |
1.98 KG (including battery) |
Dimension (LxWxH) |
135mm(L)×158mm(W)×155mm(H) |

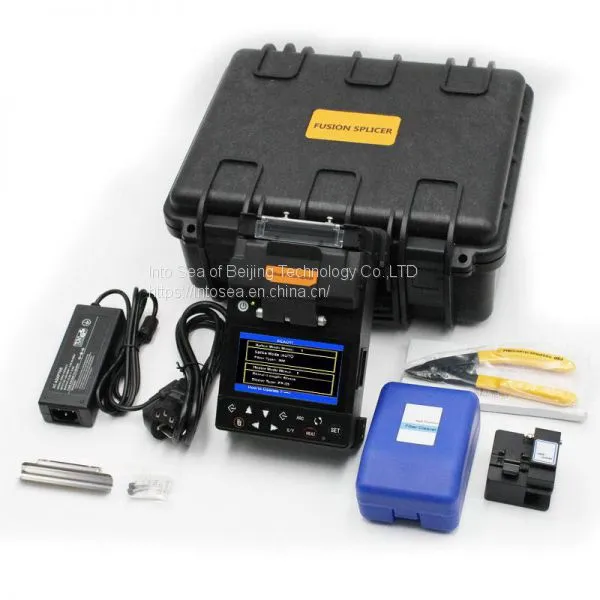

Fusion Splicer FL-115 Standard Configuration
Standard Configuration | ||
No |
Items |
Qty |
1 |
Fusion Splicer (FL-115) |
1 set |
2 |
Fiber Cleaver |
1 pc |
3 |
Fiber Stripper |
1 pc |
4 |
AC Adaptor |
1 pc |
5 |
Li Battery |
1 pc |
6 |
Charger |
1 pc |
7 |
Spare Electrodes |
1 pair |
8 |
Cooling Tray |
1 pc |
9 |
User Manual CD |
1 pc |
10 |
Carrying Case |
1 pc |
