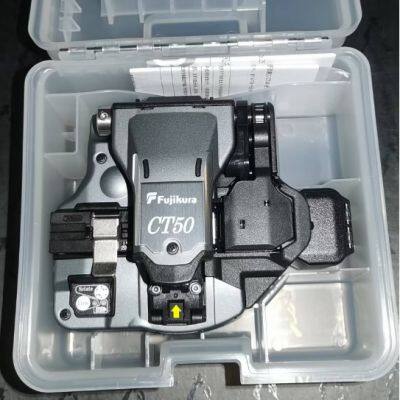

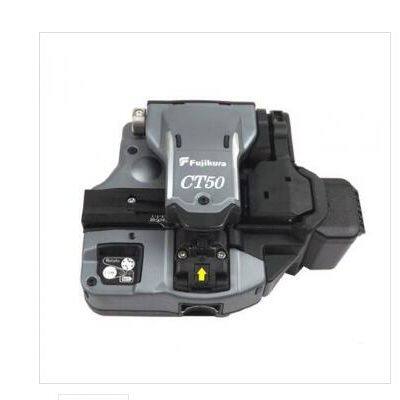

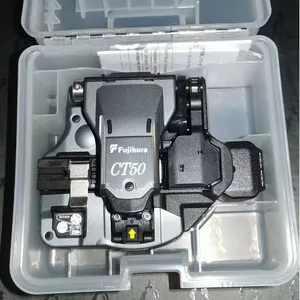

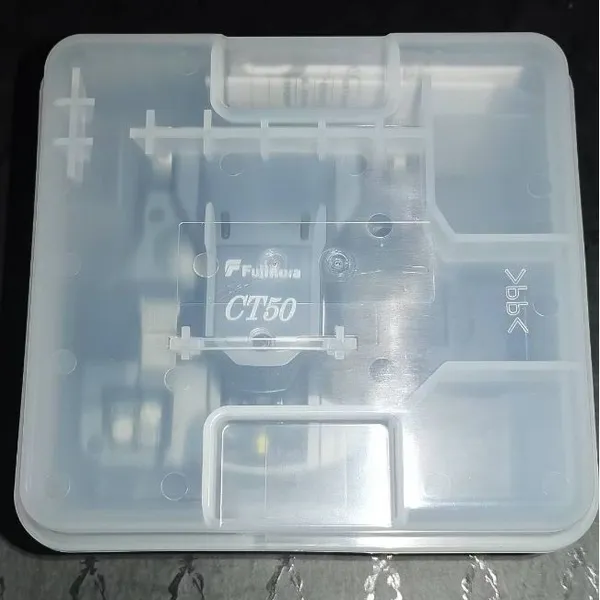

CT50 Fiber Optical Cleaver

US$ 600 ≥1 Piece

Key Specifications

Specification:

CT50

Origin:

JAP

Into Sea Of Beijing Technology Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

3 days

Specification CT50

Origin JAP

CT50 Fiber Optical Cleaver Specifications

Item	Specification
Applicable fiber	Fiber type	Single mode optical fiber
Multi mode optical fiber
Fiber count	Single and up to 16 fiber ribbon
Cladding dia.	Approx. 125μm
Applicable coating	Fiber setting plate	AD-10-M24 : Max. 900µmcoating diameter
AD-50 : Max. 3mm coating diameter
AD- 16A : Max. 900µmcoating diameter 1 fiber + Max. 250µmcoating diameter 1 fiber
Fiber holder	Coating shape. : Refer to splicer options
Cleave length	Fiber setting plate	AD-10-M24 : 5 to 20mm *1
AD-50 C.D. : coating diameter C.D. = 250µmor less : 5 to 20mm 1 250µm 900µm
AD- 16A : 5 to 20mm *1
Fiber holder	Approx. 10mm
Cleave angle *2	Single fiber	Avg. 0.3 to 0.9 degrees
Fiber ribbon	Avg. 0.3 to 1.2 degrees
Blade life *3	Approx. 60000 fiber cleaves
Physical description	Dimensions W	Approx. 117mm without projection *4
Dimensions D	Approx. 94mm without projection *4
Dimensions H	Approx. 59mm without projection *4
Weight	Approx. 306g including battery and AD-10-M24
Environmental condition	Temperature	Operate : - 10 to 50°C
Storage : -40 to 80°C
Humidity	Operate : 0 to 95%RH non-condensing
Storage : 0 to 95%RH non-condensing
Battery	2 pieces of LR03, AAA dry battery
Wireless interface *5	Bluetooth 4.1 LE
Screw hole for tripod	1/4-20UNC
Holding mechanism for the fiber holder	Equipped
Other features	Blade rotation	Motorized rotation
Manual rotation dial
Replaceable parts	Blade
Clamp arm

CT50 Fiber Optical Cleaver Options：

Item	Model	Remark
Fiber Setting Plate	AD-50	Max. 3mm coating diameter
AD- 16A	Max. 900µmcoating diameter 1 fiber + Max. 250µmcoating diameter 1 fiber
Blade	CB-08	Blade for replacement
Clamp Arm	ARM-CT50-01	Clamp arm with anvil for replacement
Fiber Scrap Collector	FDB-05	Spare scrap collector
Side cover	SC-CT50-01	Side cover instead of scrap collector
Spacer	SPA-CT08- 10	Cleave length 10mm
SPA-CT08-09	Cleave length 9mm
SPA-CT08-08	Cleave length 8mm
