Summary:
ST3100 is new designed fiber splicing equipment. The powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX: Because of the compact configuration and precise mechanism, it can adapt to execrable environment; the novel fiber imaging system make the image clearer and more exquisite; the real-time embedded OS provide friendly man-machine interface and abundant functions.
The built-in large capacity Li-Ion battery can support long-time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.
Main Features:
5 inches high Resolution colorful LCD display
Average splice time: 10 second
Average tube-heat time: 30 second
Lithium battery: up to 180 times of continuous splice and heat
Simultaneous X and Y views with 180 times magnification
New developed technology providing wind and dust resistance
Splicing mode:Auto & Manual & Full-Automation
USB Port
Storing 6,000 groups of splice results.
Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications
Main Technical Parameter | |
Applicable Fiber |
SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splicing Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss |
≥60dB |
Tension Test |
2.0N(200gf)(Standard) |
Splicing Program |
50 groups |
Protection Sleeve Length |
20mm, 40mm, 60mm |
Language |
Chinese, English |
Environmental Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions |
155(W)*165(D)*150(H) |
Weight |
2.5kg |

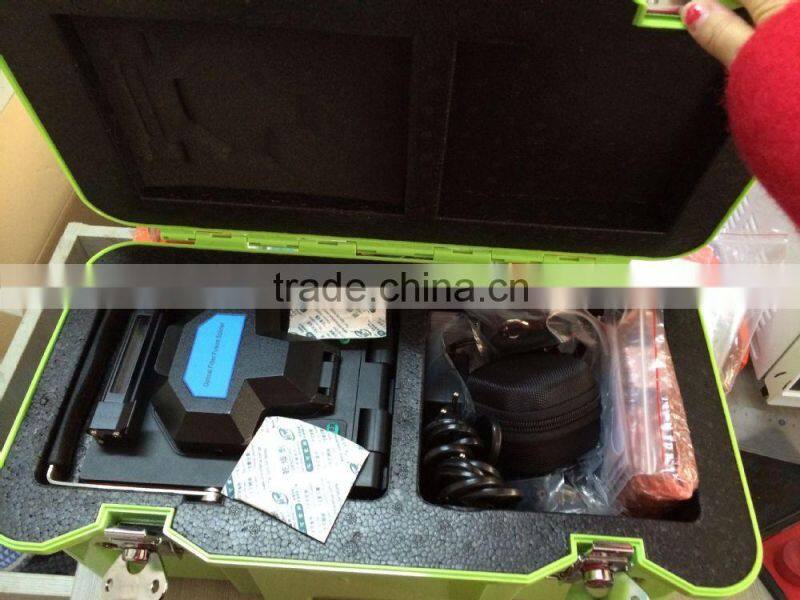

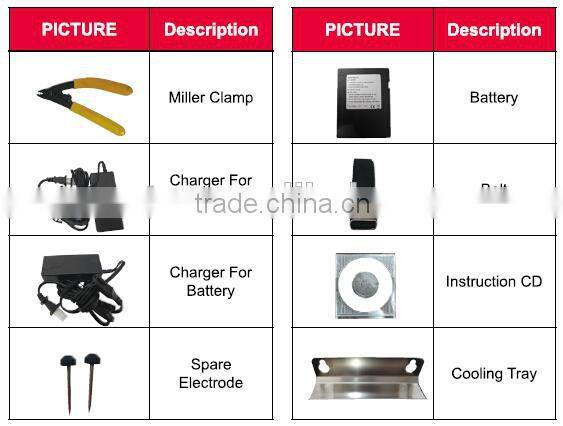

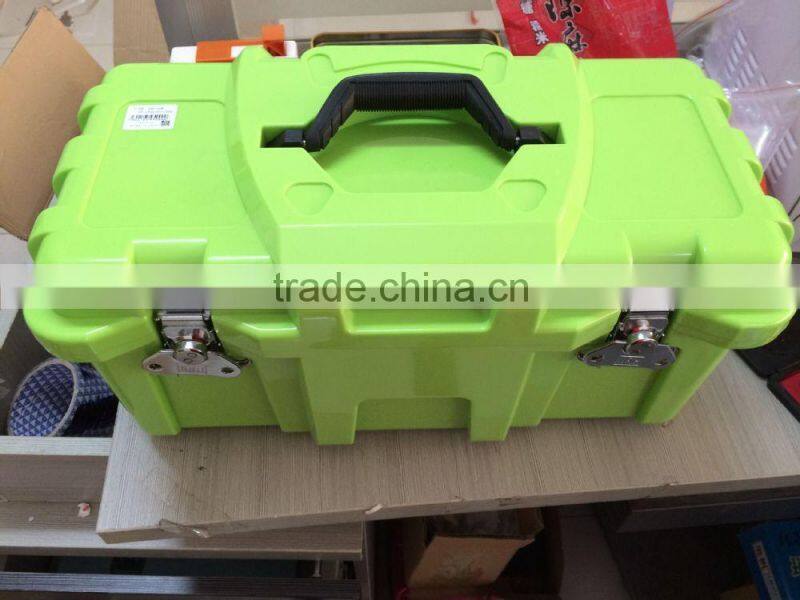

Packing List
Standard Equipment Parts:
