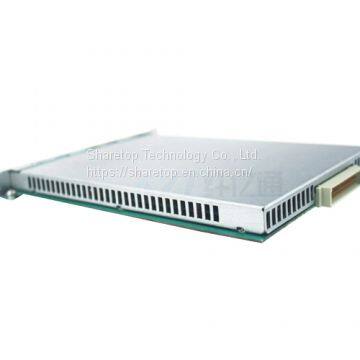

Help CenterFiber Optical Bypass Protection System OBP Interface Board
Related Products
-
40km DCM Long-distance Transmission System Dispersion CompensationUS$ 1 - 710MOQ: 1 Piece -
Gain 25dB Max Output 18dB BA Booster DWDM EDFAUS$ 1250 - 1400MOQ: 1 Piece
-
Gain 25dB Output 15dB Line LA EDFA AmplifierUS$ 1250 - 1400MOQ: 1 Piece
-
Use for Dwdm Long Hual Distance System PA Pre-amplifier DWDM EDFAUS$ 1250 - 1400MOQ: 1 Piece
-
C-band Erbium Doped Fiber Amplifier Amplifying Optical Signals in Optical Transmission SystemsUS$ 1325 - 1485MOQ: 1 Piece
Product introduction
Fiber optical bypass protection system(OBP)provides Node protection for LSPs,it can bypass the failed link as well as node through next-next-hop(NNH)backup tunnels.It adds bypass relay functionality to any network node,can automatically switch by detecting the nodes optical power supply or signal failure.Therefore to ensure that traffic from an LSP traversing a neighboring router can continue to reach its destination even if the neighboring router fails.
.
Features
1.1:1,1+1 and 1-1 protection for optional
2.Less than 15ms automatic switch time
3.SNMP Remote network management
4.Real-time monitoring nodes from nodes failure
5.Dual hot redundancy power supply and hot-pluggable
6.Supports Fast,Gigabit and 10 Gigabit Ethernet fiber connections in SC/ST/FC/LC connectors
7.Switching threshold power and alarming threshold power can be set up by LCD screen or network management access
8.The main equipment at receiving site have three modes for switching:automatic,forced manual and remote control
Application
1.The base station in local network
2.Local transmission network of single station
3.The network computer room
Performance |
Parameter |
Wavelength Range |
1310±50nm&1550±50nm |
Dynamic Range of Optical Power |
-50～+25dBm |
Return Loss |
≥45dB |
Insertion Loss |
|
4.5dB(1+1 protected) | |
Optical Power Resolution |
≤0.01dB |
Optical Power Measurement Accuracy |
≤0.5dB(-40~+25dBm) |
≤1.0dB(-50~-40dBm) | |
Wavelength Dependent Loss |
≤0.25dB |
Polarization Dependent Loss |
≤0.1dB |
Switching Time |
≤15ms(Typical:5ms) |
LCD Displaying |
160×32 Pixels |
Power Consumption |
≤5W |
Power Supply |
A C 220V(Range:100V~276V) |
DC 48V(Range:-35V~70V) | |
Operating Temperature |
-10~50°C |
Storage Temperature |
-40~+85°C |
Operating Humidity |
5%~95%no condensation |
Dimensions(unit:mm) |
440(W)*220(D)*44.5(H) |
Management Mode |
Console,Telnet,Network management Button&LCD |
Equipment interface |
1x RJ45 Ethernet Port |
1x RS232 Console Port | |
8x Optical Port(LC-UPC by default) | |
Networks Capability |
EMS GUI interface |
Remote Upgrading |
