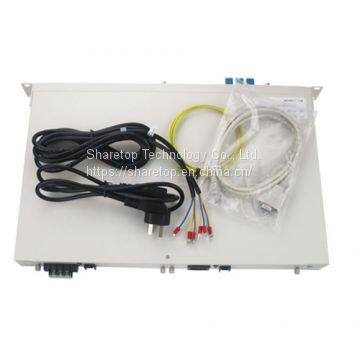

WDM System Optical Line Protection OLP 1+1 power supply backup system
OLP(Optical Line Protection) is a device used in pairs, one at each end of the optical signal to protect network transmission line. It can realize optical power monitoring and automatic switching. In optical communication network, OLP monitors optical power of optical fiber and standby optical fiber at real time. In case the current optical power of optical fiber is less than pre-set switching threshold value, then alarm is on and it would switch to standby optical fiber automatically to protect optical transmission system line.
OLP 1+1 adopts the mode of dual transmitting and selective receiving. It is widely used in Optical Line Protection System like PDH, SDH system, C/DWDM system, electric telecommunication exclusive net as well as CATV optical net.
Specification
Parameter |
Specification |
Adjustment Wavelength |
1310 &1550nm |
Sender insertion loss |
|
Receiver insertion loss |
|
Return loss |
≥ 45dB |
Crosstalk |
> 55dB |
PDL |
|
Optical power monitoring |
-50~20dBm |
Switching time |
|
Automatic switch threshold power |
-30dBm |
Switch mode |
Automatic, manual, remote |
Input/Output optical interface |
SC/APC、SC/PC、FC/APC、FC/PC |
Network management jack |
RJ45、RS232 |
Network management mode |
CLI 、WEB 、SNMP |
Dimension |
19”1U case |
Operating Temperature |
-10℃ ~ 60℃ |
Storage Temperature |
-40℃ ~ 80℃ |
Humidity |
5% ~ 95% |
Power |
220V/AC，50Hz；-48V/DC |
Order information
Item |
Name |
Model |
Specification |
1 |
OLP(1+1) |
OLP-S-1-1 |
1+1 mode OLP, single mode LC/PC interface |
2 |
OLP(1:1) |
OLP-S-3-1 |
1:1 mode OLP, with the preparation of fiber detection, single mode LC/PC interface |
