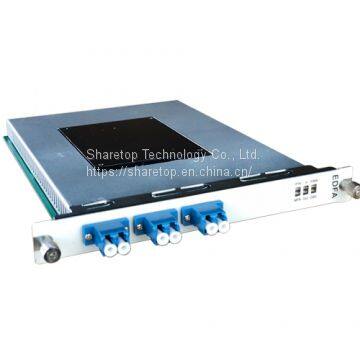

C-band Erbium Doped Fiber Amplifier amplifying optical signals in optical transmission systems
Product description:
EDFA business board is a series of erbium-doped optical amplifier amplifiers introduced by our company. It can directly regenerate multi-wavelength optical signals without optical-electrical-optical conversion, thus prolonging the transmission distance of signals and supporting C / DWDM multiplexing / solution The multiplexer can realize wavelength division multiplexing transmission, which is especially suitable for long-distance trunk network, metropolitan area network, access network and various SDH / PDH transmission systems.
Features:
Support C-band DWDM system optical amplification
Support power amplification, line amplification (two optical amplification), pre-amplifier.
Support the maximum saturated output power 21dBm, the minimum input power -32dBm
Support network management functions, support for Telnet management, Web management and SNMP management
Can be monitored: pump drive current, pump output power, pump switch, pump temperature, output optical power, module temperature;
Pump switch can be set
Support light monitoring port (MON)
Parameters
Operating wavelength |
16 |
1546 |
1561 |
nm |
||
32 |
1535 |
1562 |
||||
40 |
1528 |
1565 |
||||
Input power |
Booster Amplifier |
-15 |
7 |
dBm |
||
Line Amplifier |
-30 |
0 |
||||
Pre-Amplifier |
-32 |
-7 |
||||
Output Power |
21 |
dBm |
||||
Gain |
14 |
30 |
dB |
|||
Noise index |
Booster Amplifier |
7.5 |
dB |
|||
Line Amplifier |
7 |
|||||
Pre-Amplifier |
7 |
|||||
Gain flatness |
1.0 |
dB |
||||
Input/output isolation |
30 |
dB |
||||
Output pump leakage |
-30 |
dBm |
||||
Input/output return loss |
45 |
dB |
||||
Polarization loss |
0.5 |
dB |
||||
Noise figure |
5.0 |
dB |
||||
Polarization mode dispersion |
0.5 |
ps |
||||
