Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Communication Equipment 2x32 ABS Module Type PLC Splitter FC APC Connector Optical Fiber Splitter 1.5m

Communication Equipment 2x32 ABS Module Type PLC Splitter FC APC Connector Optical Fiber Splitter 1.5m

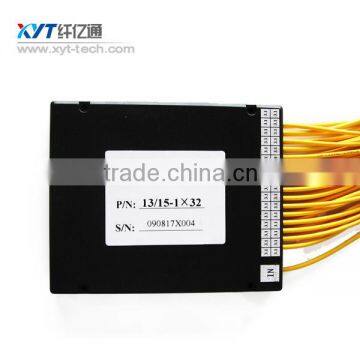

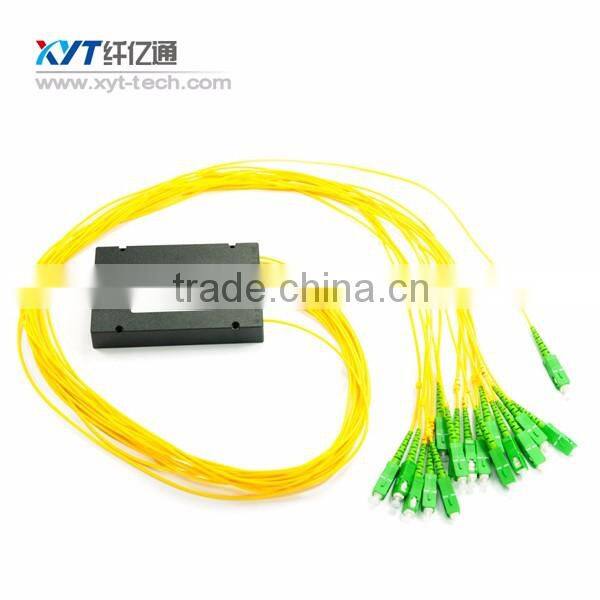

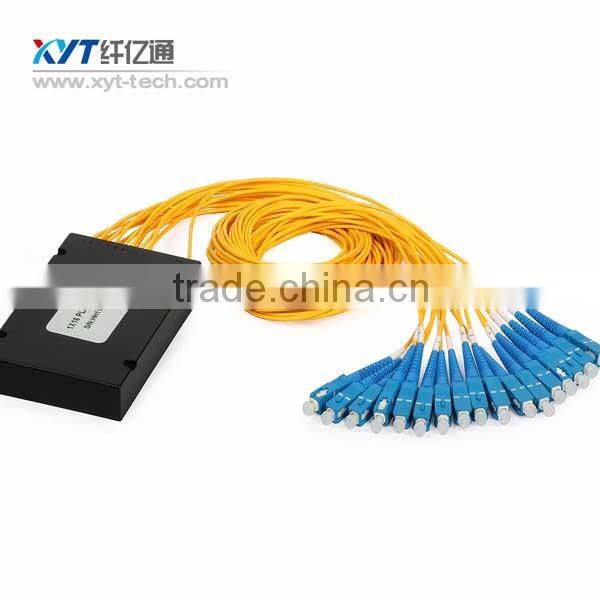

Communication Equipment 2x32 ABS Module Type PLC Splitter FC APC Connector Optical Fiber Splitter 1.5m photo-1

Communication Equipment 2x32 ABS Module Type PLC Splitter FC APC Connector Optical Fiber Splitter 1.5m photo-2

US$ 70 - 72 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

XYT

Model Number:

XYT-A-2x32 -2008

Contact Supplier Request Quote Chat Now

Sharetop Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name XYT

Model Number XYT-A-2x32 -2008

2x32 ABS Module Type PLC Splitter FC APC Connector Optical Fiber Splitter 1.5m

Description

Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.

We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

1.Low insertion loss and low PDL

2.High channel counts

3.Exceptional reliability and stability

4.Wide operating wavelength

Applications

1.FTTX Systems

2.LAN, WAN and metro networks

3.Analog/Digital passive optical networks

4.CATV networks

5.Other applications in fiber optic systems

Specifiation

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	≤4.4	≤7.7	≤10.8	≤14.1	≤17.1	≤20.7
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	50×4×4			50×7×4	60×7×4	60×12×4
Module Dimension (mm)	100×80×10			120×80×18	120×80×18	140×115×18
Mini-Module Dimension (mm)	60×7×4			60×12×4	80×20×6	100×40×6

1. Specified without connectors.

2. Add an additional 0.15dB loss per connector.

Advantages

Why you choose us?

Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.

Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.

Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.

Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.

Terms of Payment :

Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.

Delivery Time and Shippment:

3-5 workdays,customized products excepted.

Warranty:

All products have 3 years after-sale service During your first year’s usage,

free replacement or repair will be your right unless it is man-made problem.

If you still have doubts about our company or our products, please feel free to inquire us. We will be very delighted to answer all your question.
