Product Application

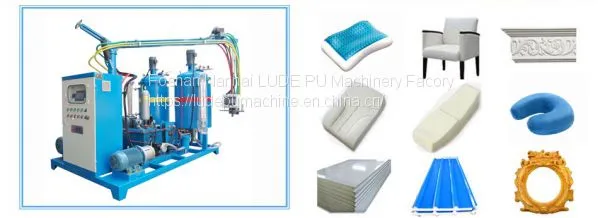

GL907 High Pressure Engineers service machinery overseas pu foam injection machine have two material tanks,can makeseveral kinds of PU production.For examples,PU car seat mat,foaming,PU wood-like furniture,cornice,moulding, low resilient pillow,mattress,toy,fitness equipment,furniture,auto equipment,low and high resilient components,etc.For more information about the production making,please feel free contact us:0086-18138372196(shirly)1) Easy to maintain and operate; highly efficient under any production condition;
2) simple, highly efficient; self cleaning;saving costs;
3) direct material calibration at measurement; high mixing precision;
4) good repeatability and evenness; accurate material mixing ratio control.
5) material tank have 3 layer,U304 stainless steel,foaming and water.Keep the temperat of the raw material and save more power.

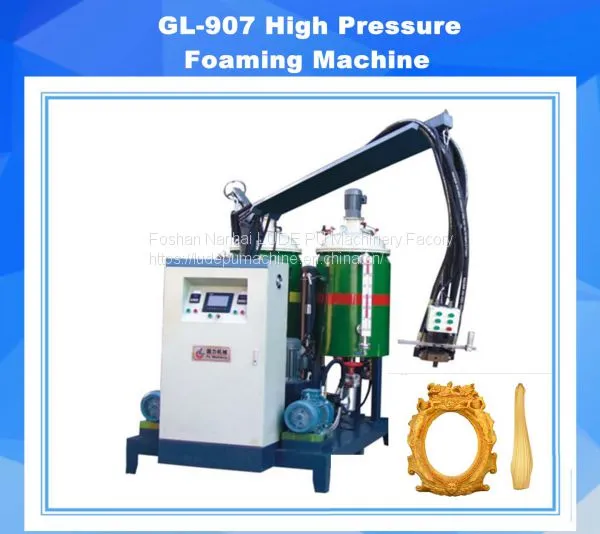

| SPECIFICATIONS FOR GL907 HIGH PRESSURE FOAM MACHINE | ||||
| Model | Output Volume(g/s) | Material Pot Volume(L) | Mixing Ratio(P:I I:P) | Total Power(kw) |
| GL907A | 80-420 | 250 | 100:35-65 | 22 |
| GL907B | 120-850 | 250 | 100:35-65 | 26 |
| GL907C |
275-2000 | 250 | 100:35-65 | 38 |
| GL907D | 540-3800 | 250 | 100:35-65 | 72 |
Machine Parts

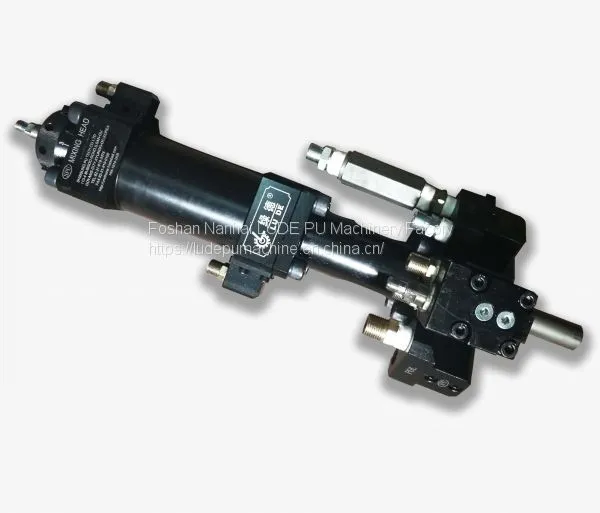

Name: injection head
Brand: LUDE GL907
Original:China
Thrice repeat mixing prevent blocking, Prevent strand material, Life of the machine: inject more than 600,000 times.
self-clean type L mixing head of LUDE and the needle adjustable nozzle. Use the V shape collocation spraying nozzle to ensure the mixing effect and the tank mix adequately.
Machine Parts
Name: Touch screen
Brand: Delta
Original:Taiwan China
7"wide screen/Resolution 800x480 of touch screen;
Button operation for convenient operation;
switching to a different density of color at any time;easy to maintain and operate;
Machine Parts

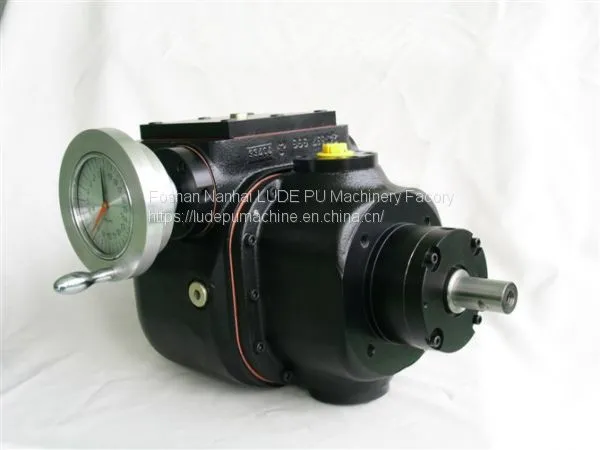

Name: metering pump
Brand: Gelanrex
Original:Sino-foreign joint venture
The magnetic coupling pump,metering measure precision is ≤1%.
The material output changed by adjusting the rotate speed of the metering pump.
Machine Parts
Name: material tank
Brand: LUDE
Original:China
250L,lining is SU304 stainless steel;3 layers,water, foaming and stainless steel.
Max working pressure:0.60MPa;
with liquidometer,have material protection.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
