name: 1A1 vitrified diamond grinding wheel
Brief Introduction: Our vitrified Diamond Grinding Wheels Have High Speed, High Efficiency, High Precision, Low Grinding Cost Performance. It Is Used For Grinding, sharpening and regrinding PCD And PCBN Tools.
application: surface grinding of PCD grooving tool
Details

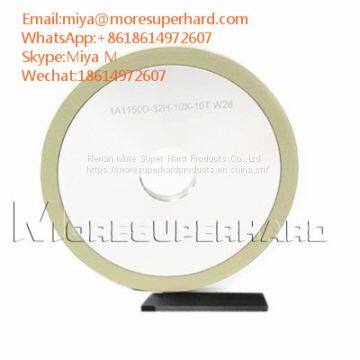

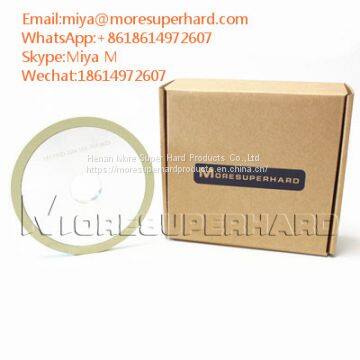

1A1 Vitrified diamond grinding wheel is used for surface grinding of PCD grooving tools.
Advantages of vitrified diamnd grinding wheels:
* Good self-sharpening with less dressing
* High cutting ability with high profile retention
* Excellent dynamic balance control with no vibration for working
* long life, less heat and blocking generated, easy control the precision and easy dressing
* service life is 2.5-3 times than that of resin bond diamond grinding wheel
Features of vitrified diamnd grinding wheels：
1. high speed,
2.high efficiency,
3.high precision,
4.low grinding cost performance,
The specifications of vitrified diamond wheel:
Model |
D (mm) |
H (mm) |
X (mm) |
T (mm) |
|
150 |
32 |
10 |
10 |
|
workpiece
| ||||
Grain Size |
Machining Type |
Application |
W40 (500#, D35),W28 (600#, D20) |
Rough |
Regrinding A Blade Edge Profiling And Sharpening Of Much Worn Inserts |
W14 (1200#,D15) |
Universal |
Standard Grain Size-Can Also Getting A High Sharpening Efficiency, Good Quality Machined Surfaces . |
W10 (1500#, D15) |
Finish |
Finishing Grinding – Getting A Very Good Quality Of Machined Surfaces. |
W5 (4000#, D3) W3.5 (5000#,D1) |
Super Finish |
Super Finish Grinding – Getting A Brilliant Quality Of Machined Surfaces. |
Others Grit Can Be Made According To Customer’s Requirements | ||
Grain Size Selection Of Vitrified Diamond Grinding Wheel:
Our products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine
Please don't hesitate to contact me if you have any needs:miya AT
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
