Shape: cup, bowl and silent wheel

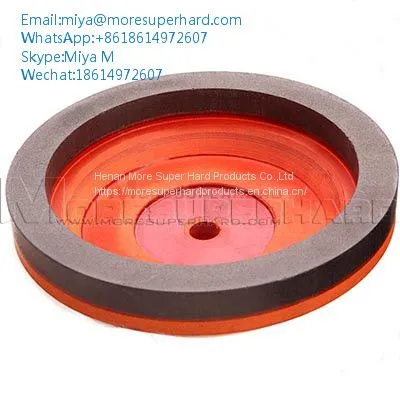

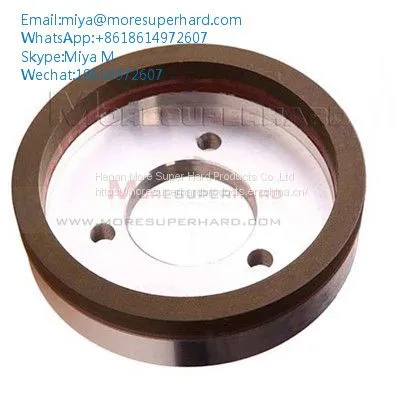

Brief introduction : resin diamond wheels for glass .Resin silent beveling wheel is resin bond, cup shaped diamond grinding wheel, mainly used for glass edge grinding, working silently.
Application: straight edging machine and beveling
Details
Applicable machine of resin diamond wheels:
glass straight edging machine, glass double edging machine, Beveling machine ( such as Deway, ZXM, BOTTERO, BAVELLONI, bovone, Schiatti angelo and Glassline )
Advantages of Resin Diamond Grinding Wheel：
light weight and low noise,
better wear resistance,
long service life,
grinding glass with a variety of thickness.
Model and type of resin diamond wheels for glass:
applicable machine |
shape |
D (mm) |
W (mm) |
T (mm) |
H (mm) |
Grit (#) |
straight line edger |
resin diamond cup wheel |
100 |
10 |
10 |
12, 22, 50 |
180 / 240 |
130 |
10, 15 |
10 |
||||
150 |
10, 15 |
10, 12 |
||||
beveling machine |
resin diamond bowl wheels |
150 |
10, 15 |
15, 10 |
12, 22, 50 |
240 |
silent resin diamond wheels |
150 |
15 |
10 |
12, 22, 50 |
240 |
|
other specification can be made according to customers requirements | ||||||
Size:
outside diameter(mm) |
work rim size(mm) |
hole size(mm) |
grit |
150 |
10*10 |
12/50 |
180#/240#/320# |
130 |
10*10 |
12/50 |
180#/240#/320# |
150 |
15*10 |
12/50 |
180#/240#/320# |
130 |
15*10 |
12/50 |
180#/240#/320# |

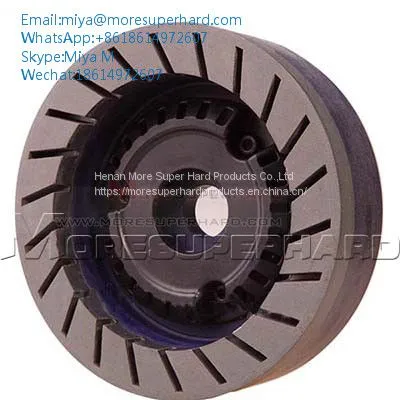

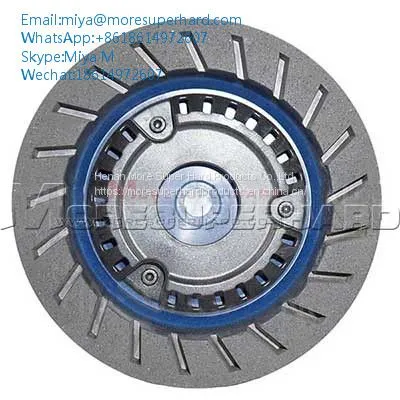

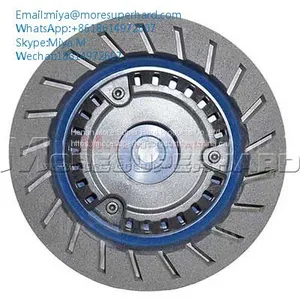

Turbo Rein Cup Wheel (Bakelite plate)
Code |
Diameter(MM) |
Bore(MM) |
Working Rim(W*X) MM |
Grit |
|
|
HYD208
|
150 |
12/22//50 |
16x10 |
240#,320#,400#,500#,600# |
|
150 |
12/22/50 |
20x10 |
|||
Remark : Customized service is available | |||||
|
For machine All Chinese glass machines and Italian glass machines. ADA-BOTTERO-BAVELLONI-BOVONE-BUSETTI-LATTUADA- SCHIATTI-ZAFFERANI | |||||
|
Application:Turbo Resin cup wheel (Bakelite plate) is mainly used for double edger machine and beveling machine | |||||
Wheel Type:Diamond grinding wheel, Resin bond wheel, 10S/ BD/ BK /X3000 /X5000 Polishing wheel, fetl wheel etc. | |||||
Our products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine
Please don't hesitate to contact me if you have any needs:miya AT
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
