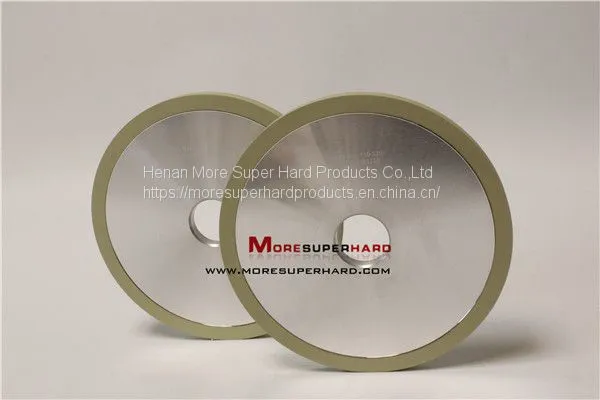

1A1 vitrified bond diamond bruting wheel for polishing natural diamond miya@moresuperhard.com
- 5000 Piece / Pieces per Month
- shanghai
- T/T PayPal Other
- 7 days
Product Details
Brand Name: | Moresuperhard | Place of Origin: | China | Model Number: | 1A1 |
Size: | 175D | Type: | Abrasive Pad |
Product Description
Name : vitrified bond diamond grinding wheel for polishing natural diamond
Introduction:
Vitrified bond diamond grinding wheels possess pretty high abrasive resistance , especially in polishing hard and brittle workpiece. It has many advantages like small grinding force, low operating temperature, high grinding precision, excellent workpiece's surface grinding, etc. Therefore, vitrified bond diamond grinding wheel will express the better advantages in the future. It is recognized as a high performance grinding wheel with the higher speed, higher efficiency, higher precision, lower abrading cost and lower pollution. Based on these superiorities, vitrified bond diamond bruting wheel is widely used in wafer, PDC, PDC, diamond cutter, CBN, cemented carbide, new engineering structural ceramic, diamond, jewel, crystal, rare earth materials and another hard-brittle materials' machining operation.
Application : Mainly used for machining tungsten carbide, ceramic, cermets, optical glass, PCD, PCBN, CVD, natural diamond, stones and so on.
Type:6A2 1A1 14A1 3A1
Features: 1. high speed,
2.high efficiency,
3.high precision,
4.low grinding cost performance,
Specifications of vitrified diamond grinding wheel:
Model | D(mm) | T (mm) | H (mm) | W (mm) | X (mm) |
6A2 | 150 | 40 | 32, 40 | 5, 10, 15, 20 | 10 |
125 | 40 | 32, 40 | 5, 10, 15, 20 | 10 | |
100 | 40 | 20, 32, 40 | 3, 5, 10, 15, 20 | 10 | |
Grit: 325/400, W40(500#), W28(600#), W20(800#) , W10(1500#),W5(3000#),W3(5000#) |
Model | D (Mm) | T (Mm) | H (Mm) | X (Mm) | U (Mm) |
| 300 | 20 | 127 | 10 | 10 |
350 | 20 | 127 | 10 | 6 | |
400 | 35 | 152.4 | 10 | 7 | |
Other Specification Can Be Made According To Customers Requirement. Sales AT Moresuperhard DOT Com |
Grain Size Selection Of Vitrified Diamond Grinding Wheel:
Grain Size | Machining Type | Application |
W40 (500#, D35),W28 (600#, D20) | Rough | Regrinding A Blade Edge Profiling And Sharpening Of Much Worn Inserts |
W14 (1200#,D15) | Universal | Standard Grain Size-Can Also Getting A High Sharpening Efficiency, Good Quality Machined Surfaces . |
W10 (1500#, D15) | Finish | Finishing Grinding – Getting A Very Good Quality Of Machined Surfaces. |
W5 (4000#, D3) W3.5 (5000#,D1) | Super Finish | Super Finish Grinding – Getting A Brilliant Quality Of Machined Surfaces. |
Others Grit Can Be Made According To Customer’s Requirements: Sales AT Moresuperhard DOT Com |
Model | D (Mm) | T (Mm) | H (Mm) | X (Mm) | U (Mm) |
1A1 | 80 | 10 | 32 | 8, 10 | |
150 | 10 | 32 | 10 | ||
155 | 10 | 32 | 10 | ||
160 | 10 | 32 | 10,12 | ||
170 | 10 | 32 | 10, 12, 14 | ||
175 | 10 | 32 | 10 | ||
220 | 10 | 32 | 20 | ||
14A1 | 170 | 10 | 32 | 10, 12, 14 | 5 |
175 | 10 | 32 | 10, 15 | 5 | |
Grain Size :MD20, MD40, MD60, MD80 MD-20: Fine Polishing,Perfect Shining Performance And Long Life For Polishing Small Diamond (10 Points- 1carat) MD-40, MD-60: Rough Polishing,High Efficiency Polishing And Sharp Cutting For Big Diamond.(1ct ,1.2ct And 1.3 Carat,Etc) MD-80: Rougher Polishing, Higher Efficiency And Sharp Cutting For Bigger Stones.(2 Carat And 3 Carat,Etc) |
Advantages of vitrified diamond wheels for PCD and PCBN tools :
* The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality
* Accurately control geometric tolerances to make a good abrasive layer
* Good Self-Sharpening, High Grinding Efficiency,High Wear Resistance And Less Abrasive Grain Consumption
* High Precision Workpiece. PCD Tools Can Reach High Efficiency , Good Surface Finish And Edge No Chipping
* Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine
Material:Diamond /CBN
Size:150x20x40x40x10
Our products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine
FAQ:
Q1. Can I negotiate the price
A: yes, you can. We will give some discount according to your quantity.
Q2. How can know my order’s production progress?
A: we will keep closely track the production and shipment progress. And we will inform you with the newest progress about producing and shipping.
Q3. How can you ensure the quality of your products?
A: We have pass the ISO 9001:2008. If there is any problem with our products, please send me the detailed picture of the problem, once we verify it, we will change the products for you within 30 days.
Q4: When I contact you is suitable?
You can contact Us at any time, we promise that we will reply you within 12 hours.
A:So, please contact me for more information about our product, service and related issues.
If you need any products, do not hesitate to contact
Email:miya@moresuperhard.com
WhatsApp:+8618614972607
Skype:Miya M
Wechat:18614972607
Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
