Name: Cylindrical diamond grinding wheel
Type: 1A1 , 14A1
Brief Introduction : vitrified diamond grinding wheel is used for PCD reamers grinding. It enjoys high grinding power,long working life, good surface quality.
Application: PCD reamers grinding
Details

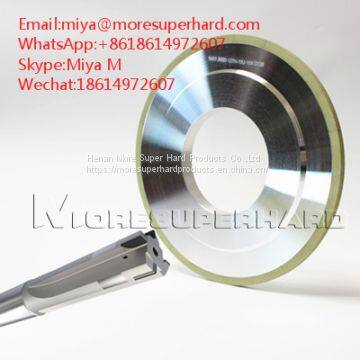

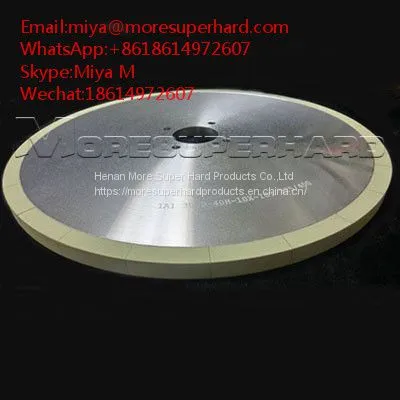

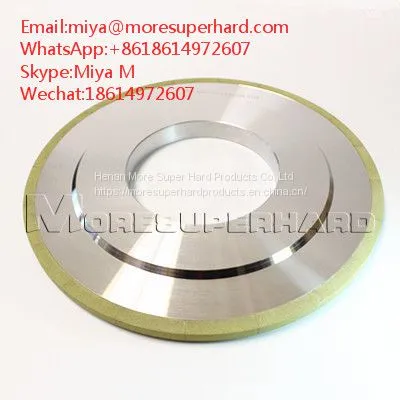

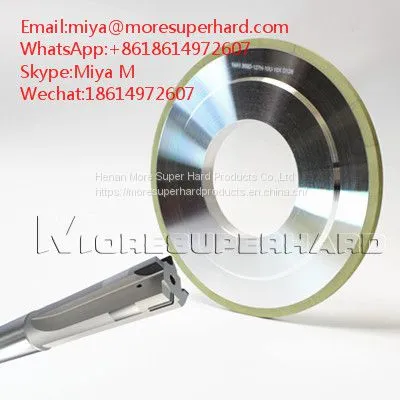

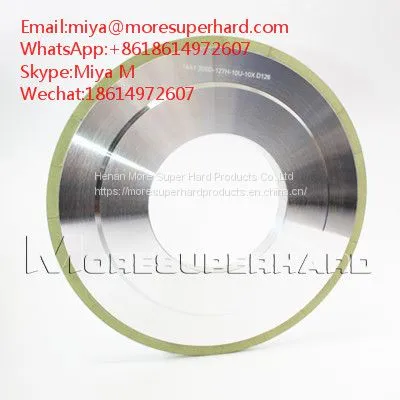

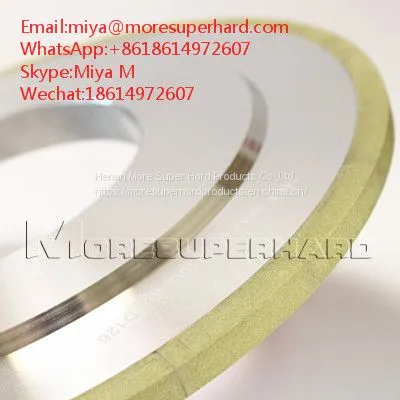

Introduction of Cylindrical Diamond Wheels
Vitrified diamond grinding wheel is used for PCD tools grinding with large cylindrical grinding machines.The PCD tools in automotive industry include PCD profile cutters, PCD reamers and PCD milling cutters.
Advantages Of Cylindrical Diamond WheelsEnjoys strong sharpness, high self-sharpening good surface finish after grinding.
High efficiency,Less dressing time,Long service life and stable quality.
Specifications Of Cylindrical Diamond WheelsModel |
D (mm) |
T (mm) |
H (mm) |
X (mm) |
U (mm) |
|
300 |
20 |
127 |
10 |
10 |
350 |
20 |
127 |
10 |
6 |
|
400 |
35 |
152.4 |
10 |
7 |
|
Other specification can be made according to customers requirement. | |||||
Model |
D (Mm) |
T (Mm) |
H (Mm) |
X (Mm) |
U (Mm) |
|
200 |
50 |
75 |
10 |
- |
250 |
50 |
75 |
10 |
- |
|
300 |
50 |
127 |
10 |
- |
|
350 |
50 |
127 |
10 |
- |
|
400 |
50 |
203 |
10 |
- |
|
450 |
50 |
228.6 |
10 |
- |
|
500 |
50 |
305 |
10 |
- |
|
|
300 |
20 |
127 |
10 |
10 |
350 |
20 |
127 |
10 |
6 |
|
400 |
35 |
152.4 |
10 |
7 |
|
Other Specification Can Be Made According To Customers Requirement. | |||||
Advantages of vitrified diamond wheels for PCD and PCBN tools :
* The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality
* Accurately control geometric tolerances to make a good abrasive layer
* Good Self-Sharpening, High Grinding Efficiency,High Wear Resistance And Less Abrasive Grain Consumption
* High Precision Workpiece. PCD Tools Can Reach High Efficiency , Good Surface Finish And Edge No Chipping
* Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine
Material:Diamond /CBN
Size:150x20x40x40x10
Please don't hesitate to contact me if you have any needs:miya AT
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
