Wetblast Cabinte

Remark: The final prices should be subject to the negotiated prices.

Wet blast cabinets consist of Cabinet enclosure, exhauster and filter, and polyurethane sand pump, can available with cabinet eith reinforced fiber glass or 100% stainless steel. Cabinet enclose water and blasting environment to provide efficient blast cleaning while maintaining a clean surrounding work area. Wet blasting can be used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright appearance. This processing is also non-hazardous, dust-free and prevents hours of messy cleaning...


Product Feature
1. Dust-free wetblasting reduces worker exposure to dust and static electricity build-up generated by dry blasting.

2. 24" long blast gloves wear resistane rubber and protect oprtator hands.

3. stineless Steel cabinet or reinforced fiber glass cabinet provide rust-free blasting environment.

4. Safety interlocks interrupt blasting if either door is opened.

5. Sopylights brightly illuminates work chamber.

6. exhauster maximizes visibility nside cabinet.

7. Electric powered Windscreen wipers maintains clean window for clear view of work.

8. Foot pedal activates blast process and minimizes operator fatigue.

9. Built-in fingertip-activated squirt gun rinses the parts inside the working cabinet.

10. Pressure regulator, gauge, and electric switch mounted within easy reach.

Product Specification/Models
Model 6868W
Dimension ,mm 690x690x1560
Blast chamber, mm 660x540x400
Door opening, mm 650 x340 (front-top)
view Window, mm 650x340
Window wiper 60w
Illuminance 18W
Pump motor 0.55KW
Exhauster Fan 38W
Media tank water 20kg+ media 4kg
Blast gun 1pc, nozzle B4C, dia. 8mm
Squirt gun 1 pc, nozzle dia. 2mm.
Air source 5-7bar(kg/cm2), 0.8-1.2m3/min
Cabinet materials reinforced fiberglass

Model 9065W
Dimension,mm 900x650x1680
Blast chamber,mm 870x630x650
Door opening,mm 470x610 (side)
view Window,mm 570x230
Window wiper 60W
Illuminance 18W x 2
Pump motor 1.1KW
Exhauster Fan 38WX2
Media tank water25kg + media 5kg
Blast gun 1pc, nozzle B4C, dia 8mm
Squirt gun 1 pc, dia 2mm.
Air source 5-7bar(kg/cm2), 0.8-1.2m3/min
Cabinet materials reinforced fiberglass
Optional turntable dia 500mm manual

Model 9090W
Dimension, mm 900x900x1850
Blast chamber, mm 870x870x8300
Door opening, mm 570x630 (side)
view Window, mm 570x230
Window wiper 60W
Illuminance 18W x 2
Pump motor 1.1KW
Exhauster Fan 38WX2
Media tank water25kg + media 5kg
Blast gun 1pc, nozzle B4C, dia 8mm
Squirt gun 1 pc, dia 2mm.
Air source 5-7bar(kg/cm2), 0.8-1.2m3/min
Cabinet materials reinforced fiberglass
Optional turntable dia 600mm manual , stainless steel cabinet

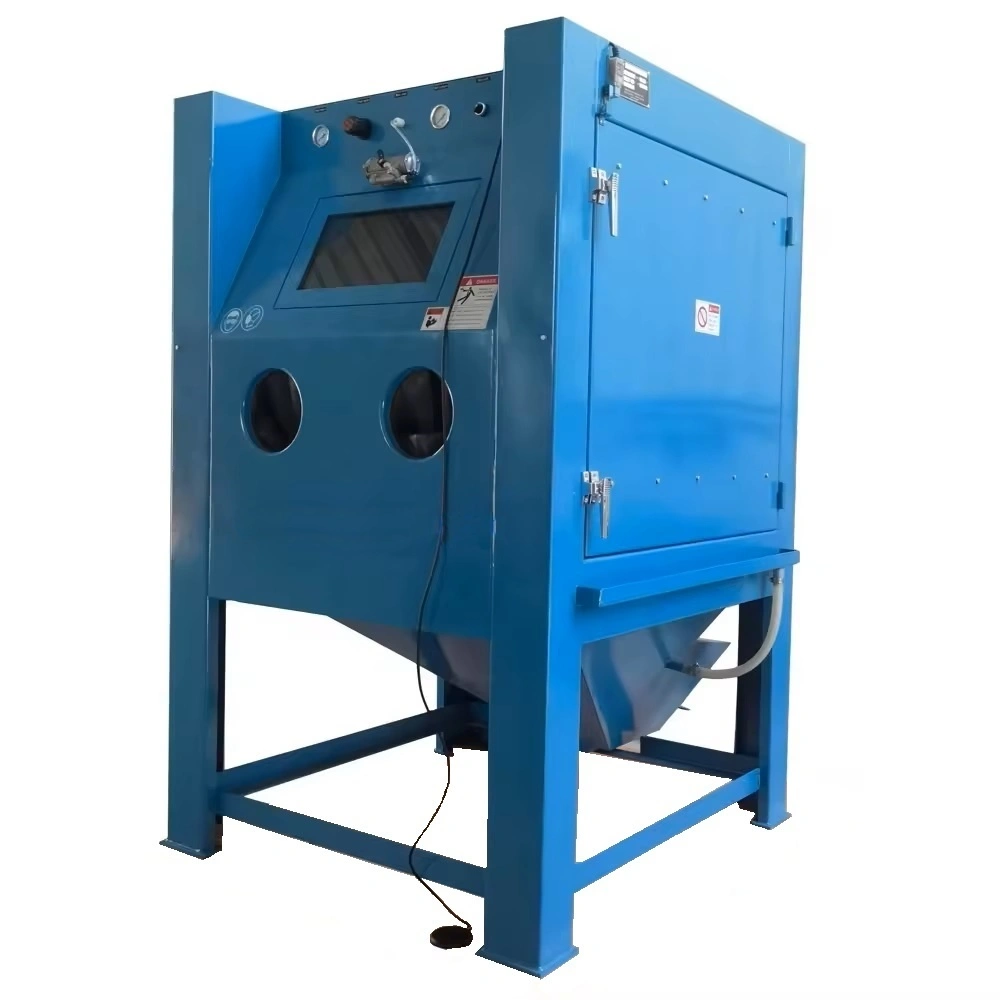

Model: 1212W
Cabinet material: stainless steel

CabinetDimension: 1200mm x1200mmx1900mm

Working Cabinet: 1050mmx1050mmx1050mm

Side door opening: 950mmx950mm

Window: 300mmx500mm
Window wiper: pneumatic operated

illuminance: 18W x 2, spotlight

Pump Motor Power: 1.1kw
Exhauster Fan power: 220V, 38wX2

Blasting Gun: 1 pc, with boron carbide nozzle, dia 8mm.
Aquire gun: 1 pc

Air souce pressure 5-7bar(kg/cm2)flow 0.8-1.2m3/min.

Optional

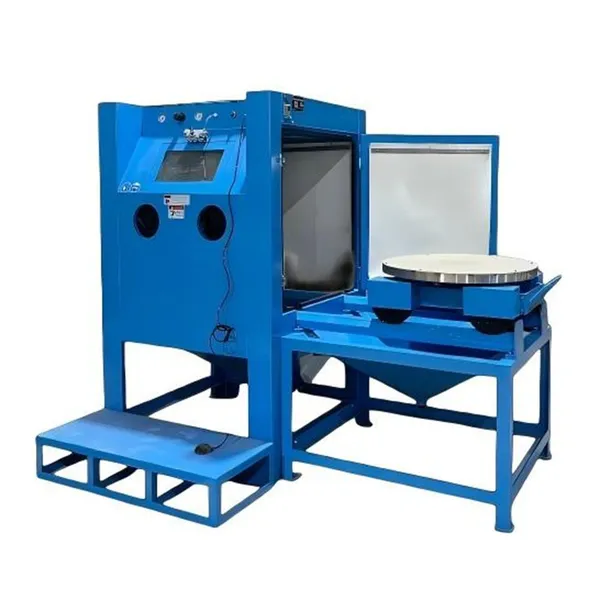

1/. turntable dia 800mm, manual or powered
1. Work car manual or powered & track assembly
2. Pneumatic vertical lift side door
3. Adjustable gun mount
