Portable Sand Blast Machines

Portable sand blast machines are mainly used to clean bigger components on-site, like steel structure, bridge, big tank body, used for big tanks vessel repaire, pipe rust removing at oil field, container renew, etc, and generally used in open, or used in very big blast rooms.
The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting.
Portable pressure blasting machines  4040P, 4720P, 6230P to be supplied with pressure blast machine fitted with remote control system, abrasive valve, moisture separator, 10 meter remote control hose, 10 meter heavy duty blast hose with nozzle holder, coupling and venturi boron carbide blast nozzle.
623092) to be supplied with two outlets allows two operators to work without interference.
Portable suction blasting machines 4848A,6060A to be supplied with suction blast machine fitted with electric remote control system, moisture separator, 4 meter remote control line, 4 meter blast hose with nozzle holder, coupling and straight bore boron carbide blast nozzle.
4040P. 4720P, and 6060A are mobiled on 3 wheels or 2 wheels and one leg or in stationary upon request, 6230P and 6230(2)P are supplied in stationary only.
Options: 1. Cover ; 2. Screen


Product Specification/Models

Model:4040P
Diameter (mm):400
Heigh (mm) :1000
Weight (kg) :65
Pot valume (L):80
Outlet :1
Blast hose ID (mm) :3/4"
Compressed air consumption (m3 /min) :3.5
Woking pressure (bar):5-7
Remote control :Pneu. or elec.
portable or Stationary :portable

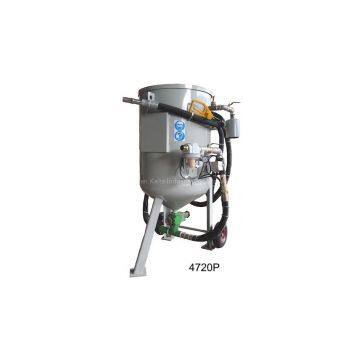

Model:4720P
Diameter (mm):620
Heigh (mm) :1400
Weight (kg) :105
Pot valume (L):270
Outlet :1
Blast hose ID (mm) :3/4" or 1-1/4"
Compressed air consumption (m3 /min) :4.5
Woking pressure (bar):5-7
Remote control :Pneu. or elec.
portable or Stationary :portable


Model:6230P
Diameter (mm):940
Heigh (mm) :1840
Weight (kg) :400
Pot Volume (L):600
Outlet : ,
Blast hose ID (mm) :3/4" or 1-1/4"
Compressed air consumption (m3 /min) :  4.5;
Woking pressure (bar):5-7
Remote control :Pneu.
portable or Stationary :Stationary

Model:6230 (2)P
Diameter (mm):940
Heigh (mm) :1840
Weight (kg) :430
Pot volume (L):600
Outlet : 2,
Blast hose ID (mm) :3/4" or 1-1/4"
Compressed air consumption (m3 /min) :  9
Woking pressure (bar):5-7
Remote control :Pneu.
portable or Stationary :Stationary



Model:BTA6060
Diameter (mm):600
Heigh (mm) :1100
Weight (kg) :55
Pot volume (L):200
Outlet :1
Blast hose ID (mm) :1/2"
Compressed air consumption (m3 /min) :1.5
Woking pressure (bar):4-7
Remote control :Elec.
portable or Stationary :portable
