Help Center31mm Square Diffuse Retro-Reflective Photoelectric Sensor
Related Products
-
Through-Beam 30m Distance Photoelectric Optical Infrared SensorUS$ 15 - 20MOQ: 50 Pieces -
M12 Diffuse Photoelectric SensorUS$ 10 - 15MOQ: 50 Pieces
-
M8/M12/M18/M30 Diffuser Photoelectric Optical Sensor/SwitchUS$ 15 - 20MOQ: 50 Pieces
-
240VAC Photoelectric Optical Infrared Sensor SwitchUS$ 10 - 15MOQ: 50 Pieces
-
M8mm Short Steel Body Flush Inductive Proximity Sensor/SwitchUS$ 10 - 15MOQ: 50 Pieces
High Stability
Dust-Proof,Water-Proof and Oil-Proof
Multi-type Sensors, Match Personalized Needs
Strict Inspection, High Quality

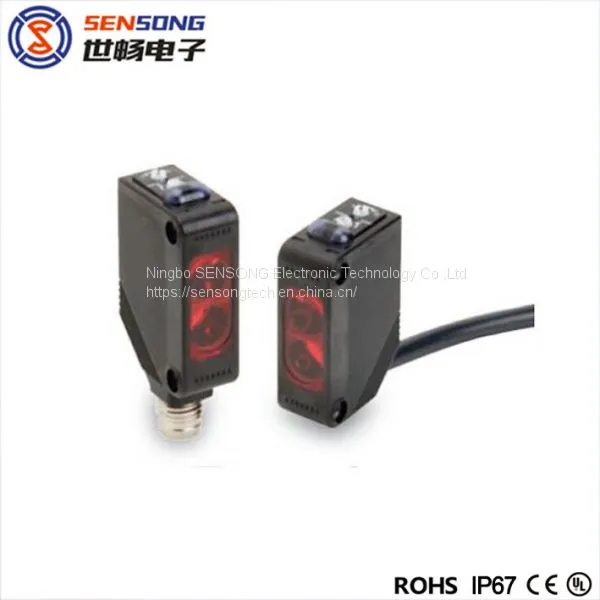

31mm Square Mini Photoelectric Sensor
Square Type Optical Sensor
Square Type Photoelectric Sensor
Mini Type Optical Sensor
Mini Type Photoelectric Sensor
Sensing Mode:Diffuse Mode, Through-beam Mode, Retro-Reflective Mode
Dimension:31.5mm*20.2mm*12mm
Switching Distance:
110mm / 350mm /800mm (diffuse mode)
5m /10 m (through-beam mode)
0.1m~4m (retro-reflective mode)
0.1m~1m (retro-reflective mode with polarizing filters)
0.1m~0.7m (retro-reflective mode for transparent)
Voltage:10-30VDC
Residual Ripple:≤10%
Tolerance:±10% Sn
Hysteresis :Emission:
Infrared 880nm
660nm (retro-reflective mode with polarizing filters)
Output Function:NPN or PNP(Programmable)
Output:Light on or Dark on(Programmable)
Max.Output Current:200mA
No Load Current:30mA or less
Voltage Drop(Sensor On):≤2.5V
Sensitivity Adjustment:Trimmer 1 tum
Response Time:1ms
Short Circuit Protection:YES
Electronic Protection:YES
Temperature:-25 - +55°C
Ambient Humidity:35 to 85% RH
Light Immunity:≤10.000Lux
Protection Degree:IP65
Housing Material:ABS Plastic
Sensing Object:10x250px white paper / 20x500px white paper
Diffuse-PNP Light on + Dark on:
PA2P-D310800IP-C4W2(cable) / PA2P-D310800IP-CPW4(M8 connector)
Diffuse-NPN Light on + Dark on:
PA2P-D310800IN-C4W2(cable) / PA2P-D310800IN-CPW4(M8 connector)
Through-beam Mode-PNP Light on + Dark on:
PA2P-C31010MIP-C4W2(cable) / PA2P-C31010MIP-CPW4(M8 connector)
Through-beam Mode-NPN Light on + Dark on:
PA2P-C31010MIN-C4W2(cable) / PA2P-C31010MIN-CPW4(M8 connector)
Retro-Reflective Mode-PNP Light on + Dark on:
PA2P-R314000IP-C4W2(cable) / PA2P-R314000IP-CPW4(M8 connector)
Retro-Reflective Mode-NPN Light on + Dark on:
PA2P-R314000IN-C4W2(cable) / PA2P-R314000IN-CPW4(M8 connector)
Retro-Reflective Mode(With Polarizing Filters)-PNP Light on + Dark on:
PA2P-F311000RP-C4W2(cable) / PA2P-F311000RP-CPW4(M8 connector)
Retro-Reflective Mode(With Polarizing Filters)-NPN Light on + Dark on:
PA2P-F311000RN-C4W2(cable) / PA2P-F314000RN-CPW4(M8 connector)
Retro-Reflective Mode(For Transparent)-PNP Light on + Dark on:
PA2P-T310700RP-C4W2(cable) / PA2P-T310700RP-CPW4(M8 connector)
Retro-Reflective Mode(For Transparent)-NPN Light on + Dark on:
PA2P-T310700RN-C4W2(cable) / PA2P-T310700RN-CPW4(M8 connector)
Connection: 2m PVC cable / 4 Pin M8 Pico-style connector
Weight(g):
Approx. 42g(2m cable) / Approx. 35g(4 Pin M8 connector)
