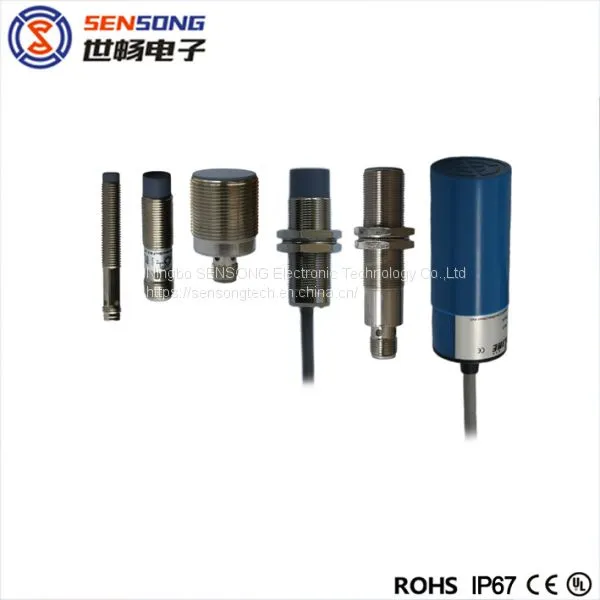

Analog Inductive Sensor SENSONG Factory
Non-Flush /Non-Shielded Mounting Analog Inductive Sensor, also Analog Output Inductive Proximity Sensor, Analog Output Inductive Sensor,Analog Output Inductive Switch, Analog Output inductance sensor, Analog Output inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch. An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed. SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications. Usually it have a operting voltae range of 18-30Vdc with 4-20mA Current Output, 0-10Vdc Voltge Output function.The sensor have up to 3% Linerity between -30C to +70C with a 40mm Sensing Distance.
Diameter |
M12mm/M18mm/M30mm/40x40x65mm/80x80x40mm |
Output Signal |
PNP-Analog |
Output |
4-20mA Output/0-10V Output |
Switching Distance |
2...40mm |
Housing Material |
PBT Resin/Nickel Plated Brass |
With LED |
No |
Operating Voltage |
18-30VDC |
Rated Insulation Voltage |
75VDC |
Ripple |
10% |
No Load Current |
mA |
Switching Frequency |
|
Linerity |
3% |
Repeat Accuracy |
0.02mm |
Protection Category |
IP67/IP68 |
Operating Temperature |
-25℃-+70℃ |
Temperature Drift |
10%(Sr) |
Reverse polarity protection |
Yes |
Certifications |
CE,ROHS,UL |
| Connection | 2m PVC Cable, M8 Connector,M12 Connector,PG terminal |
Package: 100pcs/CTN
Gross weight: 10kgs/CTN
Volume: 0.027CBM/CTN
Delivery Detail: Shipped in 10 days after payment
1.Delivery:
A.Fast Delivery:3 to 5 days.
B.Cheap Delivery:15 to 25 days.
2.Modes of Transportation
UPS/DHL/FEDEX/TNT/EMS/Aramex, Door To Door, Door To Airport.
3.Refound/warranty Policy
We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.
4.Payment Terms: T/T, Paypal, Western Union,L/C
What is our MOQ?
Sample: 1pcs (charged)
Order:100 pcs
OEM item: Depends on your Qty.
How to purchase our products?
Step-1,Please tell us the model No.you are interested in ,Quantity,sensing distance,out put function and other specification
Step-2,Please tell us your installation environment,working temperature,we could recommend the most suitable products.
Step-3,Proforma Invoice with order details as your requested will be sent to your mailbox,goods will be delivered upon receipt of your full payment and shipping instruction
