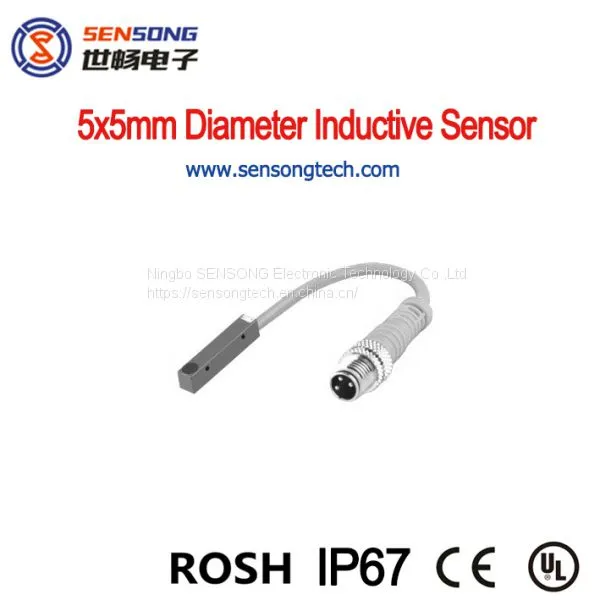

Help CenterRecutangular 5x5mm Diameter Brass Body Flush Ultra-Mini Inductive Proximity Sensor 10-30VDC NPN PNP NO NC M8 Pigtail
Related Products
-
M18 x 55mm Brass Body Non-Flush Cylinderical Inductive Proximity Sensor/Switch 20mm Long Sensing Distance NPN PNP 2m PVC CableUS$ 10 - 15MOQ: 50 Pieces -
Sensong Factory Metal Face Inductive SensorUS$ 10 - 15MOQ: 50 Pieces
-
M8/M12/M18/M30 Full Metal Inductive Proximity Sensor /SwitchUS$ 10 - 15MOQ: 50 Pieces
-
Analog Inductive Sensor SENSONG FactoryUS$ 10 - 15MOQ: 50 Pieces
-
M8 Inductive Sensor 3mm Flush Mounting Steel BodyUS$ 10 - 15MOQ: 50 Pieces
Recutangular Q5x5mm diameter brass Body Ultra-Mini Inductive Proximity Sensor, also inductive switch, inductance sensor, inductance switch,Inductive proximity sensor,inductive proximity switch, is based on Faraday's law of induction and is one type of proximity sensor/switch. An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed. SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications. It incluses NPN and PNP two output and NO / NC two output function with 10-30VDC operating voltage.
Diameter |
5x5mm |
Switching Distance |
0.8mm / 1.0mm /1.5mm(Flush) |
Housing Material |
Nickel plated brass |
With LED |
Yes |
Operating Voltage |
10-30VDC |
Ripple |
10% |
No Load Current |
mA |
Max.Load Current |
200mA |
Leakge Current |
0.01mA |
Voltage Drop |
1.5V |
Switching Frequency |
2KHZ |
Response Time |
0.1ms |
Switching Hysteresis |
15%(Sr) |
Repeat Accuracy |
1.0%(Sr) |
Protection Category |
IP67 |
Operating Temperature |
-25℃-+70℃ |
Temperature Drift |
10%(Sr) |
Short circuit protection |
Yes |
Reverse polarity protection |
Yes |
Overload Trip Point |
220mA |
Certifications |
CE,ROHS,UL |
| Connection | 2m Cable,3 Pin M8 Pigtail |
