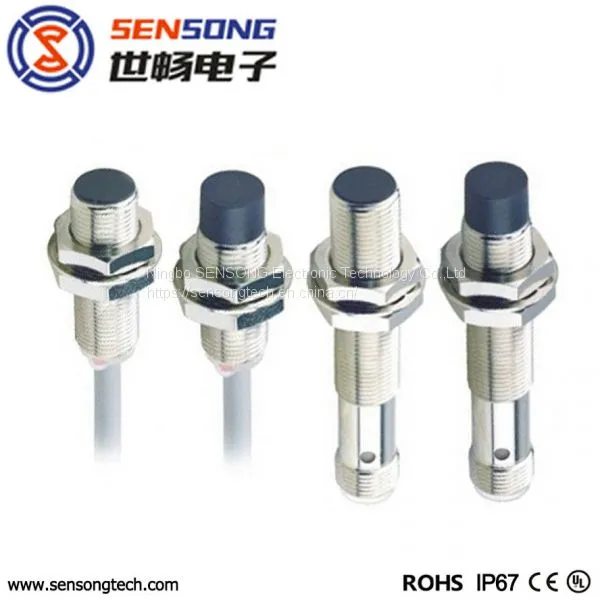

M12x30mm Length Flush Mounting Brass Body Cylinderical Inductive Proximity Sensor, also inductive proximity switch, inductance sensor, inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch. An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed. SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications. Usually it have a operting voltae range of 10-30Vd with NPN-NO, NPN-NC,PNP-NO,PNO-NC output function and 3 connection versions that include 2m PVC cable version and 4 Pins Euro Style M12 Connector version.
| Diameter | M12 |
| Switching Distance | 2mm / 4mm / 6mm (Flush) |
| Housing Material | Nickel plated brass |
| With LED | Yes |
| Operating Voltage | 10-30VDC |
| Ripple | |
| No Load Current | |
| Max.Load Current | 200mA |
| Leakge Current | |
| Voltage Drop | |
| Switching Frequency | 2KHz / 1KHz / 500Hz |
| Response Time | 0.1ms |
| Switching Hysteresis | |
| Repeat Accuracy | |
| Protection Category | IP67 |
| Operating Temperature | -25ºC-+70ºC |
| Temperature Drift | |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Overload Trip Point | 220mA |
| Certifications | CE,ROHS,UL |
| Connection | 2m Cable |
Packaging & Shipping
Package: 100pcs/CTN Gross weight: 10kgs/CTN
Volume: 0.027CBM/CTN Delivery Detail: Shipped in 10 days after payment
Our Services
1.Delivery: A.Fast Delivery:3 to 5 days. B.Cheap Delivery:15 to 25 days.
2.Modes of Transportation: UPS/DHL/FEDEX/TNT/EMS/Aramex, Door To Door, Door To Airport.
3.Refound/warranty Policy
We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.
4.Payment Terms: T/T, Paypal, Western Union,L/C
FAQ
What is our MOQ?
Sample: 1pcs (charged)
Order:100 pcs
OEM item: Depends on your Qty.
How to purchase our products?
Step-1,Please tell us the model No.you are interested in ,Quantity,sensing distance,out put function and other specification
Step-2,Please tell us your installation environment,working temperature,we could recommend the most suitable products.
Step-3,Proforma Invoice with order details as your requested will be sent to your mailbox,goods will be delivered upon receipt of your full payment and shipping instruction
Company Information
Located in the Ningbo City that the first "Made in China 2025" pilot cities and also one of the Yangtze Delta economic center, Ningbo SENSONG Electronic Technology Co., Ltd is a professional manufacturer of sensors for industrial automation equipment. SENSONG is founded by a group of senior experts and engineers with decades of sensor experience, and earlier in 2013 our marketing engineers began to provide customers high-quality new sensors and established new "SENSONG" brand in 2017 with up to 1,500.000USD to scale up the production.
SENSONG committed to the industrialization and the localization of industrial automation sensors that with independent intellectual property rights, to provide industry customers low-cost while high-performance technology solutions , non-standard or customized products and industrial automation subsystems.Now SENSONG industrial sensors mainly are Inductive Proximity Sensors, Metal Face Inductive Proximity Sensors, Analog Output Inductive Proximity Sensors, Corrosion Resistance Proximity Sensors, Weld Field Immune Inductive Proximity Sensors, Namur Inductive Proximity Sensors, Ring Inductive Proximity Sensors, High Pressure Resistance Inductive Proximity Sensors, Magnetic Hall Sensors, Capacitive Proximity Sensors, Photoelectric Sensors, Laser Sensors, Safety Light Curtain, sensor connectors, etc.
SENSONG will continue to work and grow together with customers and bring long-term value growth and potentiality growth, finally to make SENSONG grown into one of the world's industrial sensors and automation leading manufacturers.
