Help CenterM8 Inductive Sensor 3mm Flush Mounting Steel Body
Related Products
-
Rectangular Inductive Sensor/Switch NPN PNP SENSONG BrandUS$ 10 - 15MOQ: 50 Pieces -
6mm Inside Diameter Ring Shape Inductive SensorUS$ 10 - 15MOQ: 50 Pieces
-
M5 Inductive Sensor With Diameter Stainless Steel Body FlushUS$ 10 - 15MOQ: 50 Pieces
-
40x40x118mm PBT Body Non-Flush Rectangular Inductive Proximity Sensor/Switch NPN PNPUS$ 15 - 20MOQ: 50 Pieces
-
M5mm Diameter Stainless Steel Body Flush Ultra-Mini Inductive Proximity Sensor 10-30VDC NPN-PNP-NO-NC 2m PVC CableUS$ 10 - 15MOQ: 50 Pieces

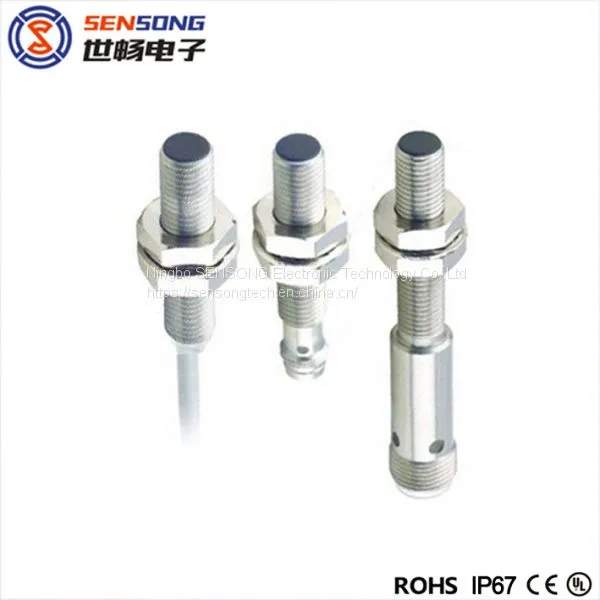

M8 Inductive Sensor/Switch NPN PNP OutputSENSONG Brand
M8 Inductive Sensor, also M8 inductive proximity switch, M8 inductance sensor,M8 inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch. An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed. SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications. Usually it have a operting voltae range of 10-30Vdc with NPN-NO, NPN-NC,PNP-NO,PNO-NC output function and 2 connection versions that include Cable version,3 Pins M8 Connector version and 4 Pins Euro Style M12 Connector version.
Diameter |
M8mm |
Response Time |
1ms |
Switching Distance |
1-6mm |
Switching Hysteresis |
15%(Sr) |
Housing Material |
PBT Resin/Brass/Steel |
Repeat Accuracy |
1.0%(Sr) |
With LED |
Yes |
Protection Category |
IP67/IP68 |
Operating Voltage |
10-30VDC |
Operating Temperature |
-25℃-+70℃ |
Ripple |
10% |
Temperature Drift |
10%(Sr) |
No Load Current |
mA |
Short circuit protection |
Yes |
Max.Load Current |
200mA |
Reverse polarity protection |
Yes |
Leakge Current |
0.01mA |
Overload Trip Point |
220mA |
Voltage Drop |
2.0 |
Certifications |
CE,ROHS,UL |
Switching Frequency |
500Hz-2000Hz |
Connection |
Cable/M8 Connector M12 Connector |
Package: 100pcs/CTN Gross weight: 10kgs/CTN
Volume: 0.027CBM/CTN Delivery Detail: Shipped in 10 days after payment
1.Delivery: A.Fast Delivery:3 to 5 days. B.Cheap Delivery:15 to 25 days.
2.Modes of Transportation: UPS/DHL/FEDEX/TNT/EMS/Aramex, Door To Door, Door To Airport.
3.Refound/warranty Policy
We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.
4.Payment Terms: T/T, Paypal, Western Union,L/C
What is our MOQ?
Sample: 1pcs (charged)
Order:100 pcs
OEM item: Depends on your Qty.
How to purchase our products?
Step-1,Please tell us the model No.you are interested in ,Quantity,sensing distance,out put function and other specification
Step-2,Please tell us your installation environment,working temperature,we could recommend the most suitable products.
Step-3,Proforma Invoice with order details as your requested will be sent to your mailbox,goods will be delivered upon receipt of your full payment and shipping instruction
