BS11-1985 Standard BS90A Steel Rail

BS11-1985 Standard BS90A Steel Rail thumbnail-1
BS11-1985 Standard BS90A Steel Rail thumbnail-2
BS11-1985 Standard BS90A Steel Rail thumbnail-3
BS11-1985 Standard BS90A Steel Rail photo-1
BS11-1985 Standard BS90A Steel Rail photo-2
BS11-1985 Standard BS90A Steel Rail photo-3
US$ 800 - 830 MOQ: 400 Tons
Key Specifications
Get Latest Price
Brand Name:
BISG
Place of Origin:
China
Model Number:
BS90A (45E1)
Contact Supplier Request Quote Chat Now
Shanghai Yueqi Industrial Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BISG
Place of Origin China
Model Number BS90A (45E1)
Length 12-36m
Type Heavy Rail
Weight 45.1 kg/m
Application Railway Rail
Standard BS
Grade 900A/1100
Secondary Or Not Non-secondary
Bolt Hole Diameter Non
Head Width 66.67mm
Web Thickness 13.89mm
Bottom Width 127mm
Rail Heigth 142.88mm

BS11-1985 Standard BS90A steel rail



This type of rail usually is used in English country, such as England, Europe, India, Bangladesh and Pakistan etc.

This rail is used in mining plant and low speed railway line, most is used for factory railroad line.

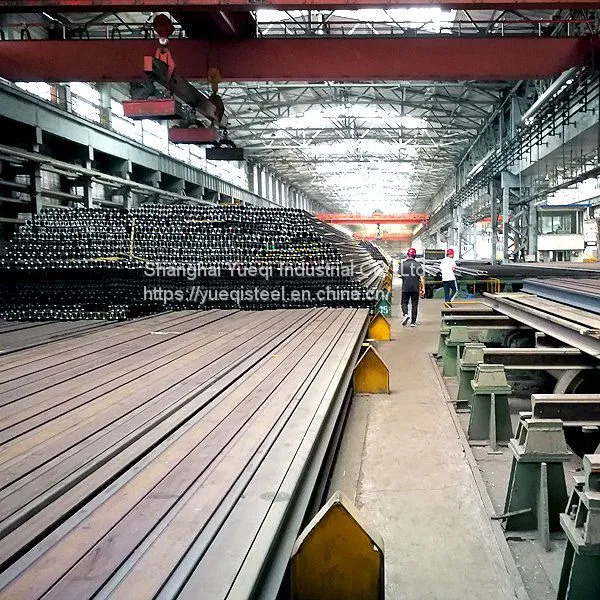

We have some stock of this rail, if the required quantity more than 400 tons, we can specially produce it for you, the length can be 12-25 meters.



Rail Type Rail Height Flange Width Head Width at Top Head Width at Base Head Height Web Thickness Flange Thickness at Edge Flange Thickness at Center Weight (per meter)
RH FW HT HB HH WT FE FM kg
BS 75A rail 128.6 114.3 61.9 63.75 30.5 12.7 8.3 15.48 37.46
BS 90A rail 142.9 127 66.7 68.83 33.5 13.9 9.1 17.07 45.10
BS 100A rail 152.4 133.35 69.85 72.14 35.81 15.08 9.52 16.27 50.18

BS 90 A.jpgUIC STEEL RAIL HARDNESS.jpg

Our products had passed through the inspection of Lloyd's regiester, any data all be qualified. If you are interested, please contact us to get the certificate 3.2.

Inspecting by Lloyd's-8.jpgInspecting by Lloyd's-9.jpg

chemical components-3.jpgchemical components-1.jpgchemical components-2.jpg


Product Tags: BS11-1985 Standard , BS90A steel rail , steel rail
