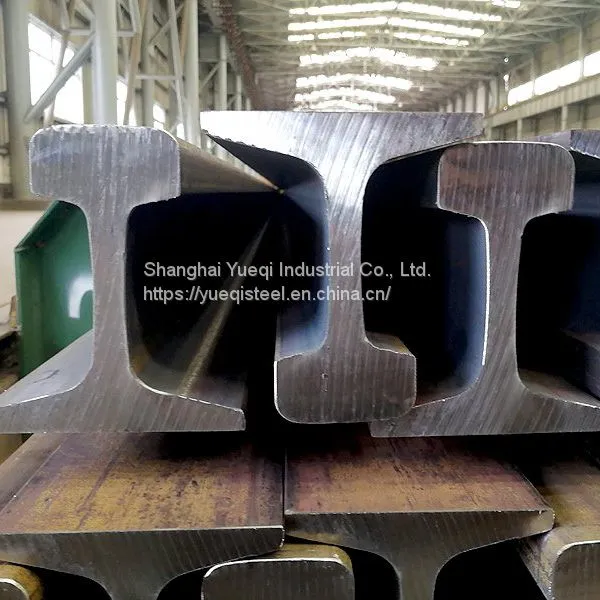

BS100A 900A Railway Steel Rail

BS100A 900A Railway Steel Rail thumbnail-1
BS100A 900A Railway Steel Rail thumbnail-2
BS100A 900A Railway Steel Rail thumbnail-3
BS100A 900A Railway Steel Rail thumbnail-4
BS100A 900A Railway Steel Rail photo-1
BS100A 900A Railway Steel Rail photo-2
BS100A 900A Railway Steel Rail photo-3
BS100A 900A Railway Steel Rail photo-4
US$ 800 - 830 MOQ: 400 Tons
Key Specifications
Get Latest Price
Brand Name:
Baogang
Place of Origin:
China
Model Number:
BS100A BS11 standard steel rail
Contact Supplier Request Quote Chat Now
Shanghai Yueqi Industrial Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baogang
Place of Origin China
Model Number BS100A BS11 standard steel rail
Length 12-36m
Type Heavy Rail
Weight 50.18 kg/m
Application Railway Rail
Standard BS
Grade 900A
Secondary Or Not Non-secondary
Bolt Hole Diameter Non
Head Width 69.85mm
Web Thickness 15.08mm
Bottom Width 133.35mm
Rail Heigth 152.4mm

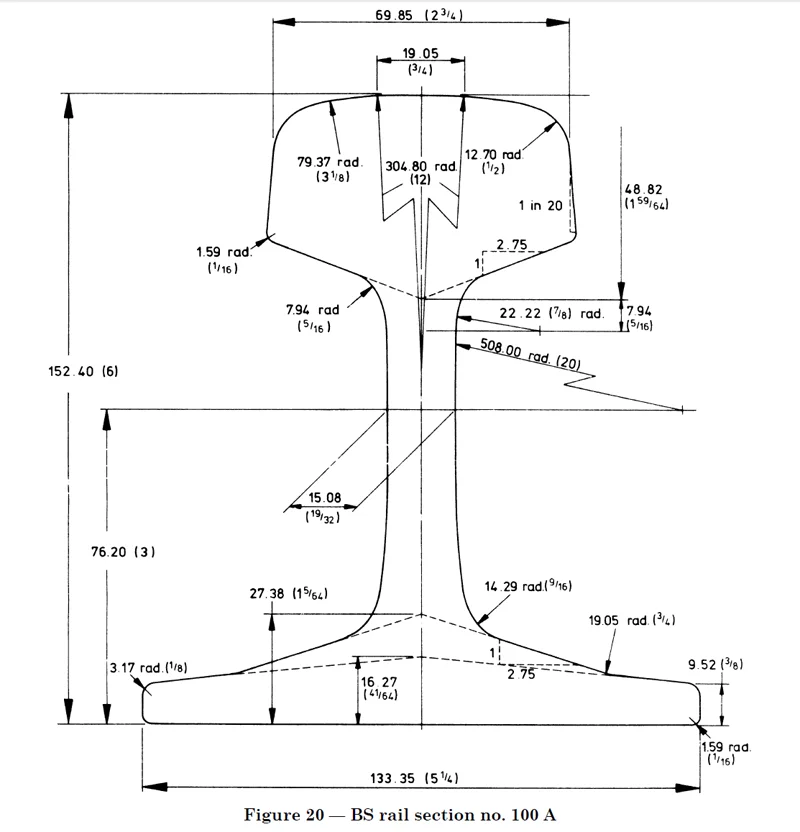

BS11-1985 BS100A steel rail




Rail Type Rail Height Flange Width Head Width at Top Head Width at Base Head Height Web Thickness Flange Thickness at Edge Flange Thickness at Center Weight (per meter)
RH FW HT HB HH WT FE FM kg
BS 75A rail 128.6 114.3 61.9 63.75 30.5 12.7 8.3 15.48 37.46
BS 90A rail 142.9 127 66.7 68.83 33.5 13.9 9.1 17.07 45.10
BS 100A rail 152.4 133.35 69.85 72.14 35.81 15.08 9.52 16.27 50.18
R0900A Mechanical property Chemical composition
Yield strength Tensile strength Elongation Hardness C Si Mn S P
MPa kg/mm² MPa kg/mm² min HB ≤ ≤


880min
10% 260 0.6-0.8 0.1-0.5 0.8-1.3 0.04 0.04



Lloyd's regiester inspection:

Inspecting by Lloyd's-1.jpgInspecting by Lloyd's-8.jpgInspecting by Lloyd's-9.jpg

chemical components-1.jpg

chemical components-4.jpg


Product Tags: BS100A 900A , railway steel rail
