60R2(Ri 60N) Grooved Rail
US$ 830 - 850
MOQ: 400 Tons
Key Specifications
Get Latest Price
Brand Name:
Baogang
Place of Origin:
China
Model Number:
60R2/Ri 60N
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
30 days
Related Products
-
BS75A Steel RailUS$ 780 - 850MOQ: 400 Tons -
EN13674-1 European Standard UIC54/54E1 900A Railway Steel RailUS$ 810 - 850MOQ: 500 Tons
-
EN13674-1 European Standard UIC60/60E1 900A Railway Steel RailUS$ 810 - 850MOQ: 500 Tons
-
A100 Crane RailUS$ 1000 - 1100MOQ: 10 Tons
-
A120 Crane RailUS$ 1000 - 1100MOQ: 10 Tons
Brand Name
Baogang
Place of Origin
China
Model Number
60R2/Ri 60N
Length
12m
Type
Heavy Rail
Weight
59.75 kg/m
Application
Railway Rail
Standard
BS
Grade
U75V
Secondary Or Not
Non-secondary
Bolt Hole Diameter
Non
Head Width
113mm
Web Thickness
13mm
Bottom Width
180mm
Rail Heigth
180mm

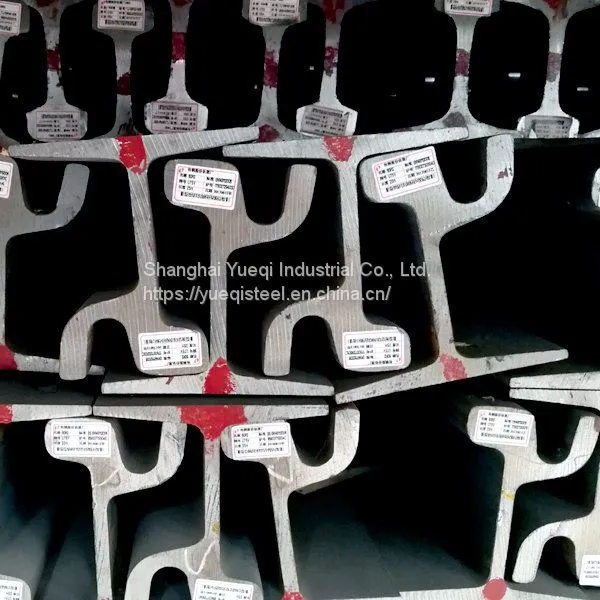

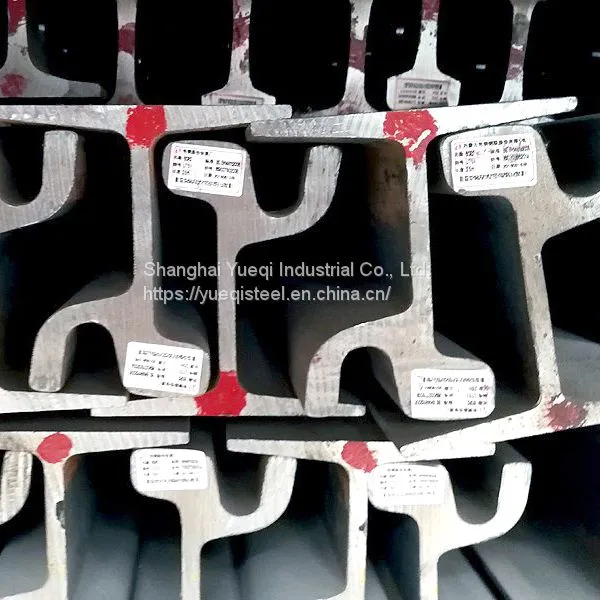

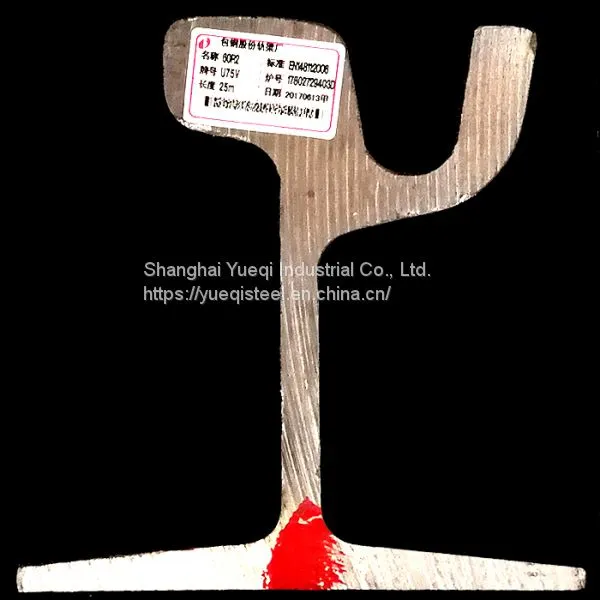

60R2(Ri 60N) Grooved rail
Standard: EN 14811:2006
This rail is used for city ground light railway line, the top just same as ground, after carriage passed though it, peoples can walk to over it.
| U75V | Mechanical property | Chemical composition | ||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | V | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | |||||
| 980min | 8% | 0.72-0.80 | 0.65-0.90 | 0.75-1.05 | 0.05-0.12 | 0.04 | 0.04 | |||||
