Help CenterQU100/KP100 Crane Rail
US$ 716 - 780
MOQ: 10 Tons
Key Specifications
Get Latest Price
Brand Name:
Baogang
Place of Origin:
China
Model Number:
QU100/KP100
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
10 days
Related Products
-
18 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons -
15 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons
-
12 Kg/m Chinese Standard Light Steel RailUS$ 740 - 800MOQ: 10 Tons
-
8 Kg/m Chinese Standard Light Steel RailUS$ 740 - 800MOQ: 10 Tons
-
24 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons
Brand Name
Baogang
Place of Origin
China
Model Number
QU100/KP100
Length
12m
Type
Heavy Rail
Weight
88.96kg/m
Application
Railway Rail
Standard
DIN, GB
Grade
U71Mn
Secondary Or Not
Non-secondary
Bolt Hole Diameter
Non
Head Width
100mm
Web Thickness
38mm
Bottom Width
150mm
Rail Heigth
150mm

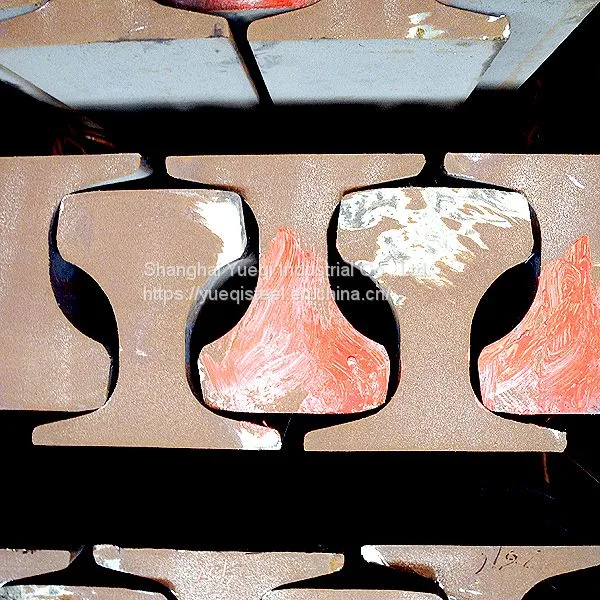

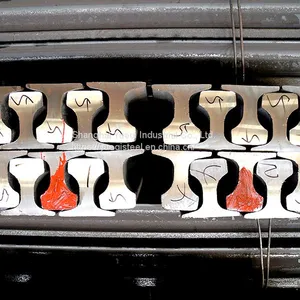

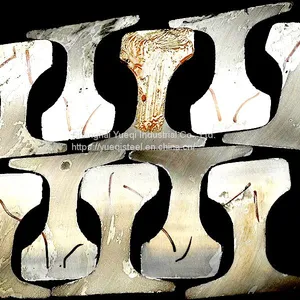

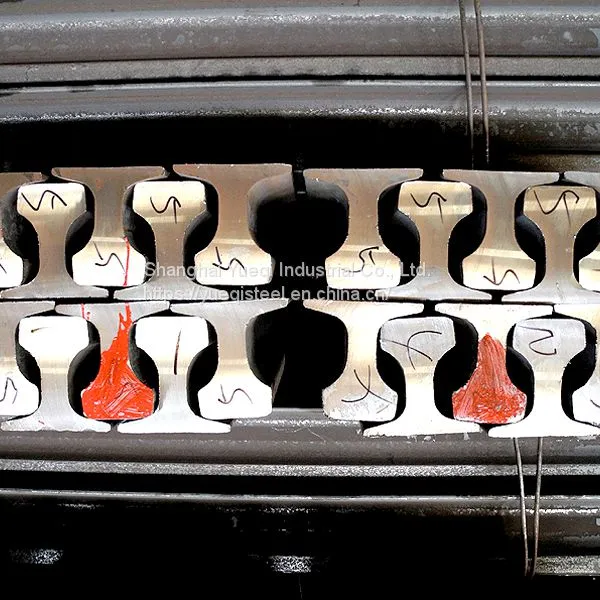

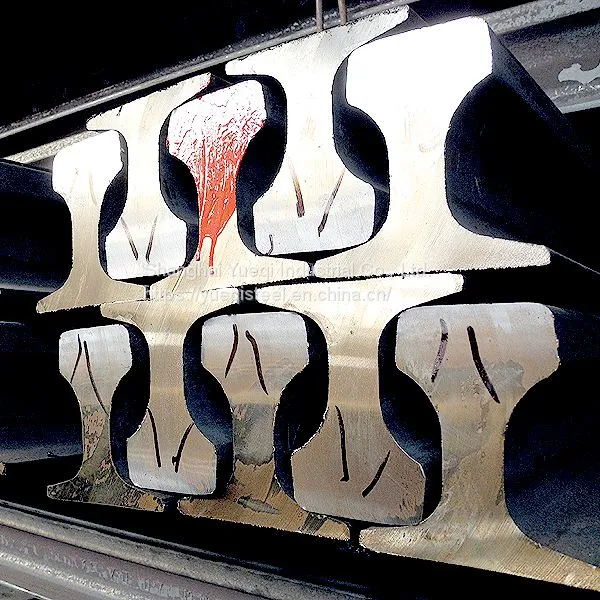

QU100/KP100 Crane rail
We can supply all kinds of Chinese standard steel rails in stock, can supply other special international standard type of rails, also can make mold to produce special type of steel rails in larger quantity.
We can design railroad line as your requirement, also can build small type mining railway line and crane moving line, also can supply the all workable fasteners.
| Crane rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) |
| QU70 | 120 | 120 | 70 | 28 | 12 | 52.8 |
| QU80 | 130 | 130 | 80 | 32 | 12 | 63.69 |
| QU100 | 150 | 150 | 100 | 38 | 12 | 88.96 |
| QU120 | 170 | 170 | 120 | 44 | 12 | 118.1 |
| U71Mn | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| 880min | 9% | 260 | 0.65-0.77 | 0.15-0.35 | 1.10-1.50 | 0.04 | 0.04 | ||||
Weldable rail clamp and rubber pad:
