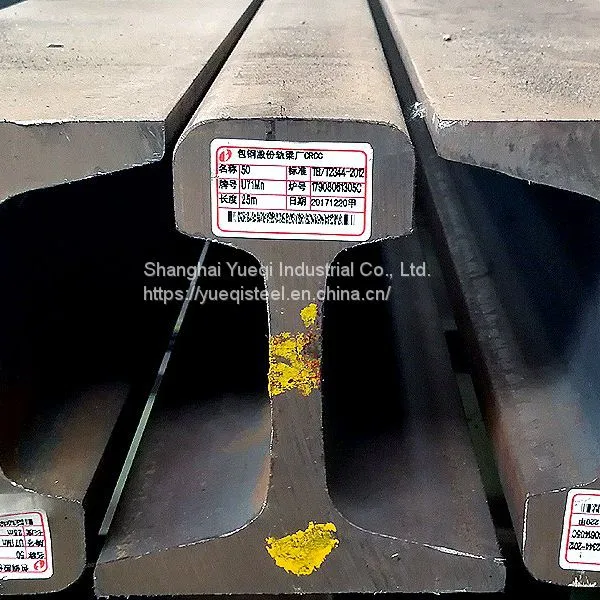

75kg/m Heavy Railway Steel Rail
US$ 785 - 850
MOQ: 50 Tons
Key Specifications
Get Latest Price
Brand Name:
Baogang
Place of Origin:
China
Model Number:
P75
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
15 days
Related Products
-
50kg Chinese Standard U71Mn Heavy Steel RailUS$ 730 - 780MOQ: 20 Tons -
43kg Chinese Standard U71Mn Heavy Steel RailUS$ 730 - 780MOQ: 20 Tons
-
38kg Chinese Standard U71Mn Heavy Steel RailUS$ 730 - 780MOQ: 20 Tons
-
P43 Q235 Weldable Mine Using Steel RailUS$ 730 - 780MOQ: 20 Tons
-
QU120/KP120 Crane RailUS$ 716 - 780MOQ: 10 Tons
Brand Name
Baogang
Place of Origin
China
Model Number
P75
Length
12-36m
Type
Heavy Rail
Weight
74.41kg/m
Application
Railway Rail
Standard
DIN, GB
Grade
U71Mn/U75V
Secondary Or Not
Non-secondary
Bolt Hole Diameter
31mm
Head Width
75mm
Web Thickness
20mm
Bottom Width
150mm
Rail Heigth
190mm
75kg/m heavy railway steel rail
This rail usually is used for national railway line, the most length is 100 meters. Russia also use this type of rail, they named P75.
We can supply all kinds of Chinese standard steel rails in stock, can supply other special international standard type of rails, also can make mold to produce special type of steel rails in larger quantity.
| Heavy rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 60 | 176 | 150 | 73 | 16.5 | 12-25 | 60.64 | TB |
| 75 | 192 | 150 | 75 | 20 | 12-25 | 74.41 | TB |
| U71Mn | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| 880min | 9% | 260 | 0.65-0.77 | 0.15-0.35 | 1.10-1.50 | 0.04 | 0.04 | ||||
