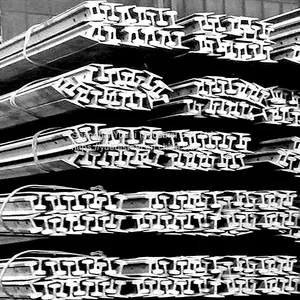

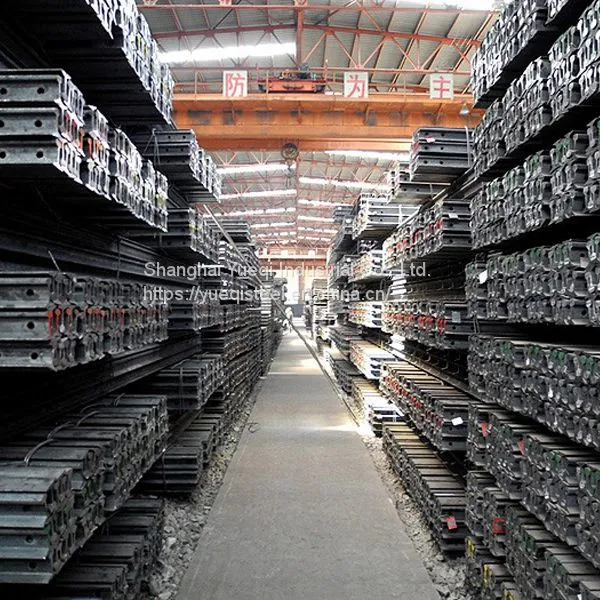

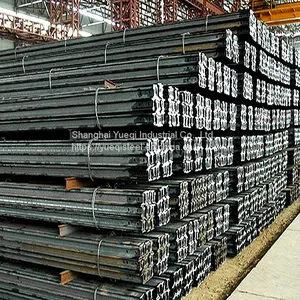

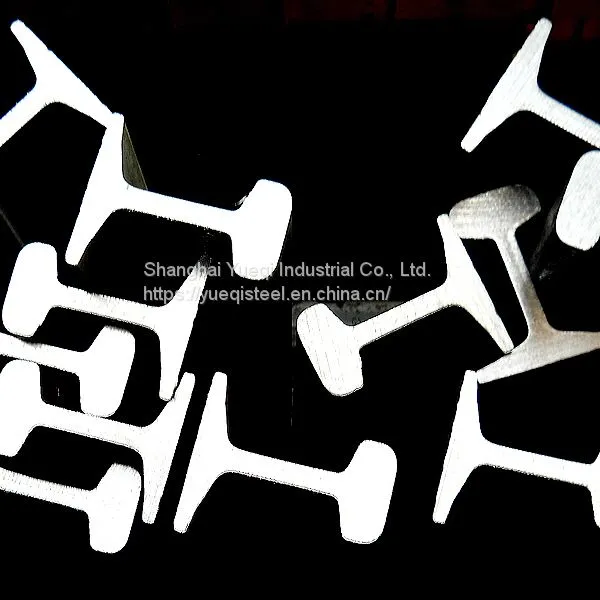

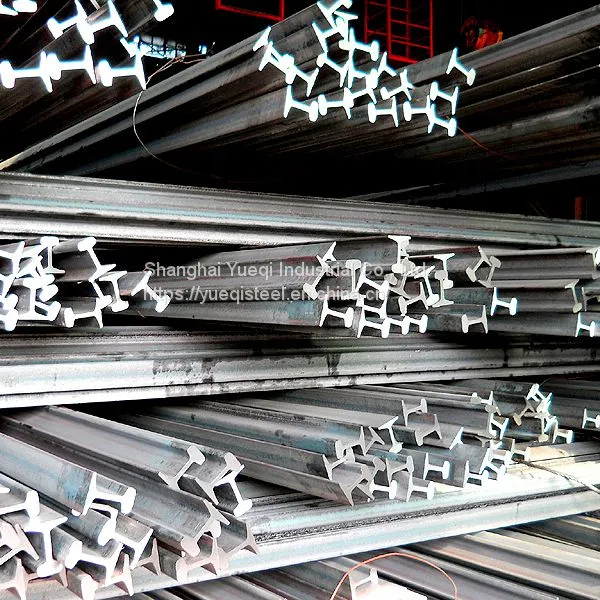

12 Kg/m Chinese Standard Light Steel Rail
US$ 740 - 800
MOQ: 10 Tons
Key Specifications
Get Latest Price
Brand Name:
Hangang
Place of Origin:
China
Model Number:
12kg/m
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
10 days
Related Products
-
8 Kg/m Chinese Standard Light Steel RailUS$ 740 - 800MOQ: 10 Tons -
24 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons
-
30 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons
-
22 Kg/m Chinese Standard Light Steel RailUS$ 720 - 800MOQ: 10 Tons
-
60kg/m National Railway Steel RailUS$ 785 - 850MOQ: 50 Tons
Brand Name
Hangang
Place of Origin
China
Model Number
12kg/m
Length
6m
Type
Light Rail
Weight
12.2kg/m
Application
Railway Rail
Standard
GB
Grade
Q235
Secondary Or Not
Non-secondary
Bolt Hole Diameter
16mm
Head Width
38.1mm
Web Thickness
7.54mm
Bottom Width
70mm
Rail Heigth
70mm
12 kg/m Chinese standard light steel rail
We can supply many kinds of steel rails, also produce steel rails according your order, usually the quantity of one kinds should more than 50 tons, for special type of rail, if we don't have mould, we can make the mould as your design drawing, but the quantity should upto 500 ton.
Light Rail
Size: 8kg/m-30kg/m
Length: 8-10m or Other Length Accord Requirement
Material: 55Q/Q235
Standard: GB/T11264-89,YB222-63 or Other
| Q235 | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.3 | 0.30-0.70 | 0.05 | 0.045 | |||
| Light rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 8 | 65 | 54 | 25 | 7 | 6 | 8.42 | YB |
| 18 | 90 | 80 | 40 | 10 | 6 & 8 | 18.06 | YB |
| 24 | 107 | 92 | 51 | 10.9 | 8 | 24.46 | YB |
| 12 | 70 | 70 | 38.1 | 7.54 | 6 | 12.2 | GB |
| 15 | 79 | 79 | 42.86 | 8.33 | 6 & 8 | 15.2 | GB |
| 22 | 93.66 | 93.66 | 50.8 | 10.72 | 8 & 10 | 22.3 | GB |
| 30 | 108 | 108 | 60.33 | 12.3 | 8 & 10 | 30.1 | GB |
