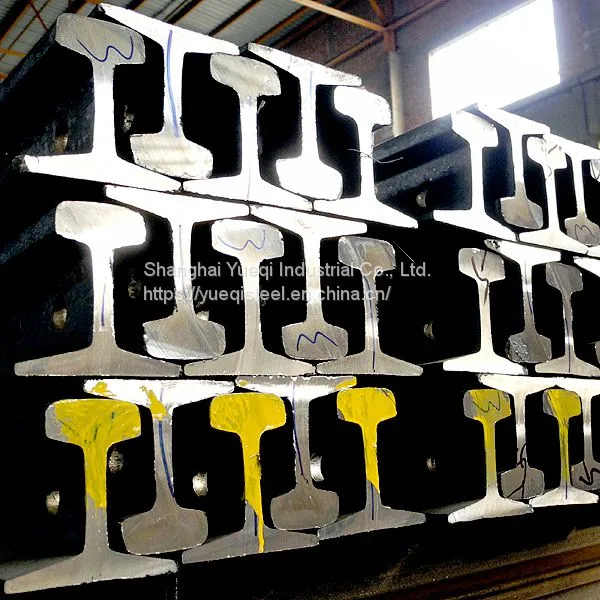

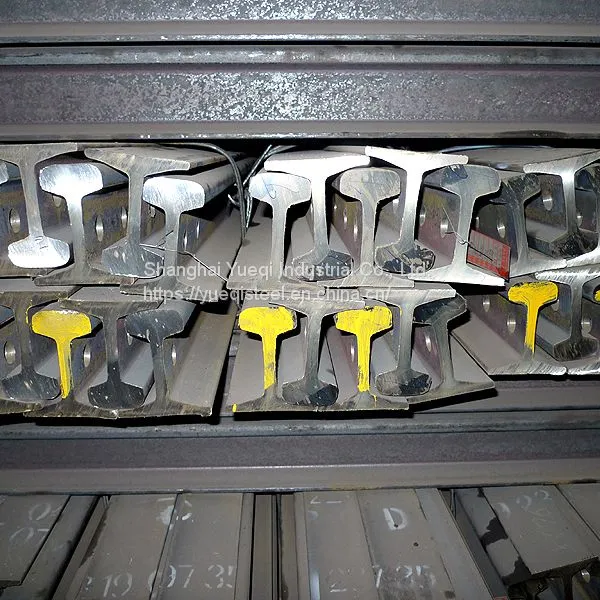

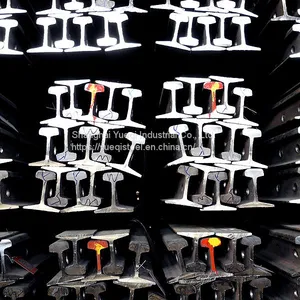

P43 Q235 Weldable Mine Using Steel Rail
US$ 730 - 780
MOQ: 20 Tons
Key Specifications
Get Latest Price
Brand Name:
Hangang
Place of Origin:
China
Model Number:
P43
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
10 days
Related Products
Brand Name
Hangang
Place of Origin
China
Model Number
P43
Length
12-36m
Type
Heavy Rail
Weight
44.65kg/m
Application
Railway Rail
Standard
DIN, GB
Grade
U71Mn/50Mn
Secondary Or Not
Non-secondary
Bolt Hole Diameter
29mm
Head Width
70mm
Web Thickness
14.5mm
Bottom Width
114mm
Rail Heigth
140mm
P43 Q235 weldable mine using steel rail
We can supply all kinds of Chinese standard steel rails in stock, can supply other special international standard type of rails, also can make mold to produce special type of steel rails in larger quantity.
Please notice the material of Q235, this is weldable rail, can be used in special field, Austrialian customer like to use it for welding.
Heavy Rail
Size: 38kg/m,43kg/m,50kg/m
Length: 12-36m or Other Length Accord Requirement
Material: 50Mn/U71Mn
Standard: GB/T699-1999,GB2585-2007 or Other
Materials:
| U71Mn | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| 880min | 9% | 260 | 0.65-0.77 | 0.15-0.35 | 1.10-1.50 | 0.04 | 0.04 | ||||
| Q235 | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.3 | 0.30-0.70 | 0.05 | 0.045 | |||
| Heavy rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 38 | 134 | 114 | 68 | 13 | 12 | 38.73 | GB |
| 43 | 140 | 114 | 70 | 14.5 | 12 | 44.65 | TB |
| 50 | 152 | 132 | 70 | 15.5 | 12-25 | 51.51 | TB |
| 60 | 176 | 150 | 73 | 16.5 | 12-25 | 60.64 | TB |
| 75 | 192 | 150 | 75 | 20 | 12-25 | 74.41 | TB |
