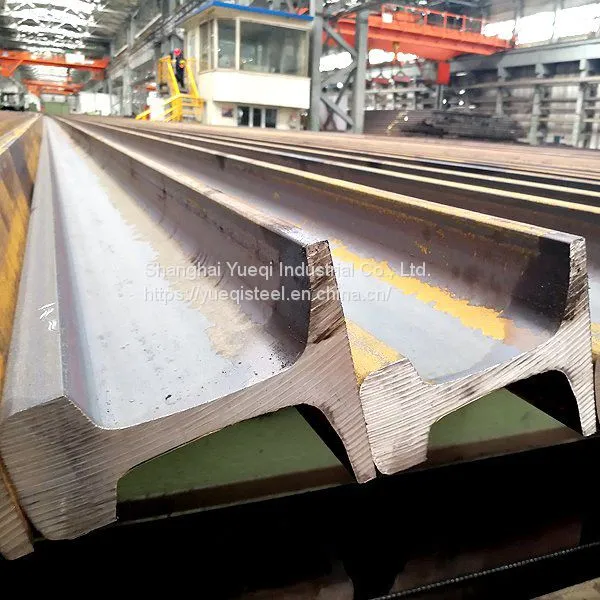

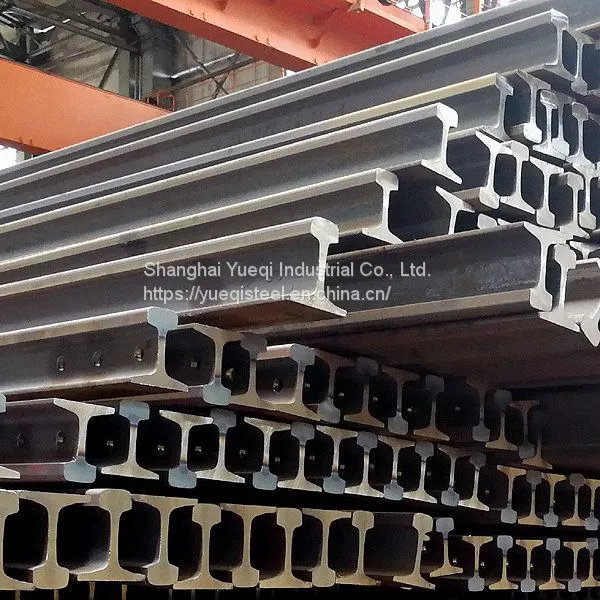

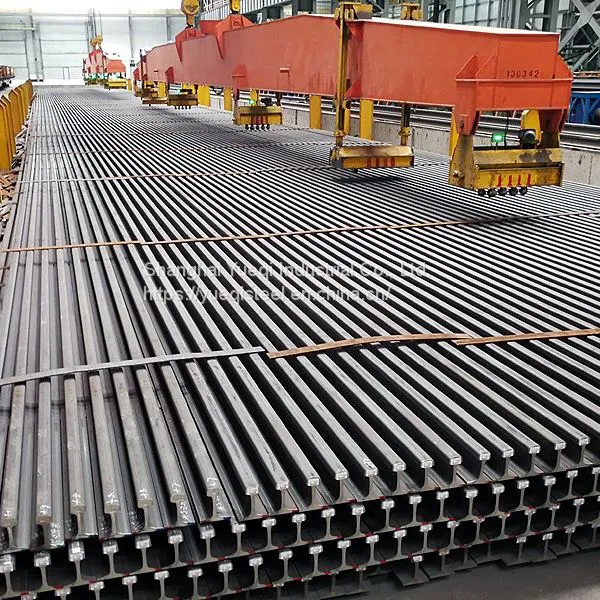

50kg Chinese Standard U71Mn Heavy Steel Rail
US$ 730 - 780
MOQ: 20 Tons
Key Specifications
Get Latest Price
Brand Name:
Baogang
Place of Origin:
China
Model Number:
P50
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
10 days
Related Products
-
43kg Chinese Standard U71Mn Heavy Steel RailUS$ 730 - 780MOQ: 20 Tons -
38kg Chinese Standard U71Mn Heavy Steel RailUS$ 730 - 780MOQ: 20 Tons
-
P43 Q235 Weldable Mine Using Steel RailUS$ 730 - 780MOQ: 20 Tons
-
QU120/KP120 Crane RailUS$ 716 - 780MOQ: 10 Tons
-
QU80/KP80 Crane RailUS$ 716 - 780MOQ: 10 Tons
Brand Name
Baogang
Place of Origin
China
Model Number
P50
Length
12-36m
Type
Heavy Rail
Weight
51.51kg/m
Application
Railway Rail
Standard
DIN, GB
Grade
U71Mn/50Mn
Secondary Or Not
Non-secondary
Bolt Hole Diameter
31mm
Head Width
70mm
Web Thickness
15.5mm
Bottom Width
132mm
Rail Heigth
152mm
50kg Chinese standard U71Mn heavy steel rail
Materials:
We can supply all kinds of Chinese standard steel rails in stock, can supply other special international standard type of rails, also can make mold to produce special type of steel rails in larger quantity.
We can design railroad line as your request, also can build small type mining railway line and crane moving line, also can supply the all workable fasteners.
Heavy Rail
Size: 38kg/m,43kg/m,50kg/m
Length: 12-36m or Other Length Accord Requirement
Material: 50Mn/U71Mn
Standard: GB/T699-1999,GB2585-2007 or Other
| Heavy rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 38 | 134 | 114 | 68 | 13 | 12 | 38.73 | GB |
| 43 | 140 | 114 | 70 | 14.5 | 12 | 44.65 | TB |
| 50 | 152 | 132 | 70 | 15.5 | 12-25 | 51.51 | TB |
| 60 | 176 | 150 | 73 | 16.5 | 12-25 | 60.64 | TB |
| 75 | 192 | 150 | 75 | 20 | 12-25 | 74.41 | TB |
