Help Center230*72*43 Adjustable Link Harvester Rubber Track , Rubber Tracks For Combine Harvesters
Related Products
-
Rubber Tracks 230 x 72 x 45 With Wide 230mm; Pitch 72mm; Links 45US$ 40 - 80MOQ: 1 Piece -
Rubber Tracks 230 x 72 x 47 for KOMATSU (PC07.7FR.1) / YANMAR (SV17CR) / IHI (12J)US$ 40 - 80MOQ: 1 Piece
-
Rubber Tracks 230 x 72 x 50 for YANMAR / YAMAGUCHI / WINBULL / HUTTER Mini ExcavatorUS$ 40 - 80MOQ: 1 Piece
-
Rubber Tracks / Rubber Crawler 230 x 96 x 31 for Excavator With Brand Komatsu / Airmann / Case / CaterpillarUS$ 40 - 80MOQ: 1 Piece
-
180x72x31 High Performance Excavator Parts Rubber Tracks With Steel and Fiber InsideUS$ 40 - 80MOQ: 1 Piece
| Width: | 230mm | Pitch: | 72mm |
|---|---|---|---|
| Link: | 43 | Material: | Rubber And Steel |
| Overall Length: | 3096mm | Weight: | 46.87kg |
80B.4 rubber track 230w* 72p* 42l for mini-Excavator/Harvester/crawler loader/
Commodity: Excavator Track(230*72*43)
Size:Width230*Pitch72*Links43
Weight:46.87kg
Link and lenght can be adjustable
Warranty:Guarantee one year under normal use
1.Appliciation:
mainly used in excavator and other model number can be used
in snowblower,snowmobile,robot,wheelchair,(mini) excavators,track loaders,pitch
paver,agricultural,harvest,dumpers...etc.
2. Characteristics of rubber track:
1). Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration;
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Easy to change
3. Parameters:
| size width*pitchlinkABCDFpatternguiding130*7229-402364.5282815AF1A2150*6032-40226422.524.515ACA2150*7229-402364232315ACA2170*6030-401957222213CEA1180*6030-4023.5642121.515AMA1180*7231-432568292915BKA2180*72K32-4820612219.517BB1B2B180*7231-432366302915BB1B2H180*7230-502364272617BKA2190*6030-4023.5642121.514AMA1190*7231-41216827.526.515BFA2200*7234-47237628.526.518BB1A2200*72K37-47216929.52918BMA2 |
4. Rubber Track Characteristic
1.Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2.A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3.Rubber tracks permit machines to travel at a higher speed than steel tracks
4.Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases.(Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference.(Rubber crawlers are easily deformed; if it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4.Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

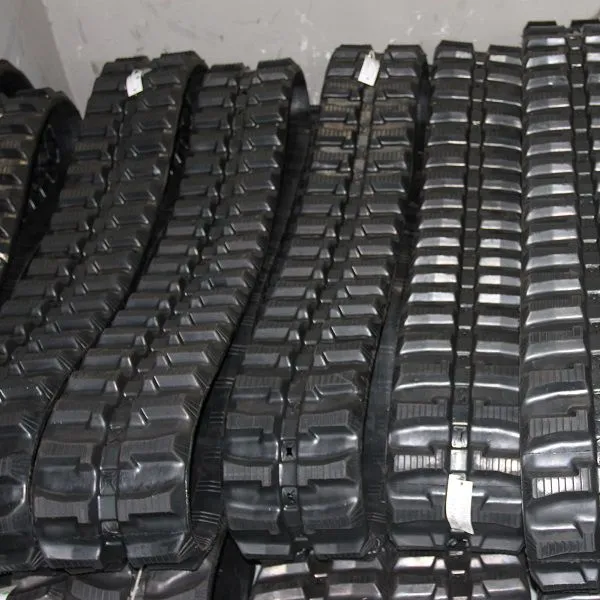

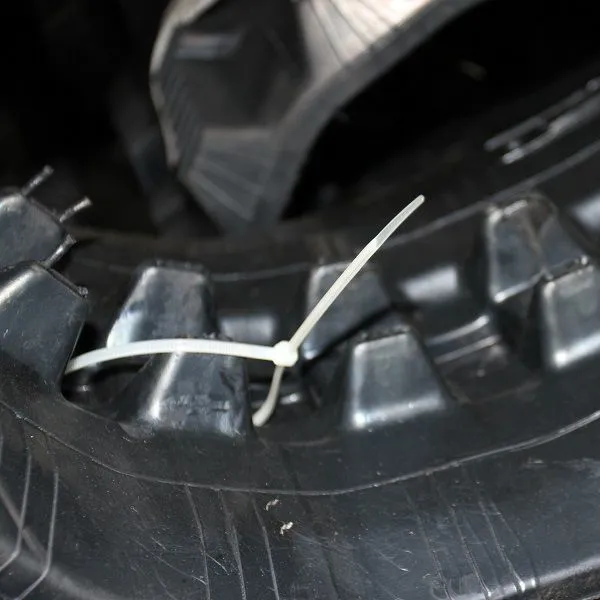

6. Rubber Track Packing and QC
7. About us:
We supply Rubber Tracks,Rubber Tracks for Truck,Small Rubber Track,Mini Asphalt Paver
Rubber Track,Rubber Track for Harvesting Excvavtor,Rubber Track for Skid Steer
Loader,Rubber Track for snowmobile,Rubber Track for snowblower,Rubber track for robot,etc.
