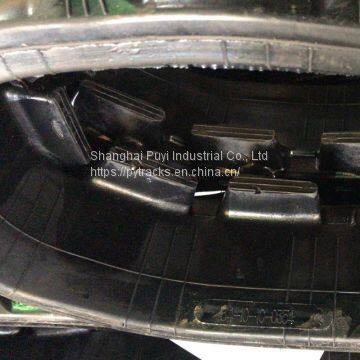

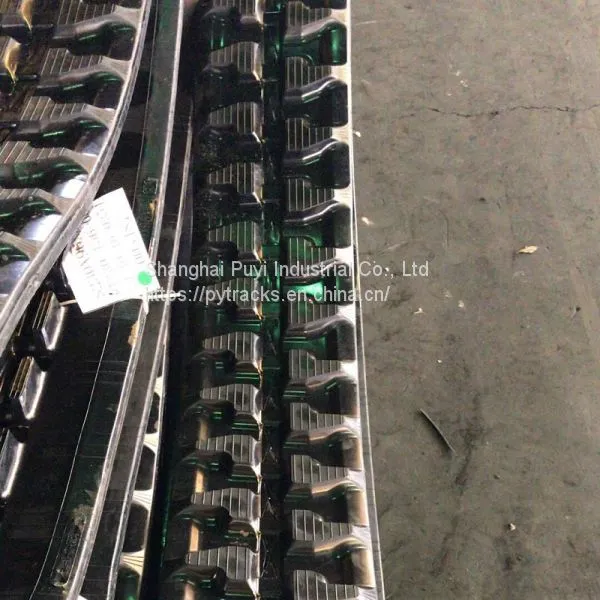

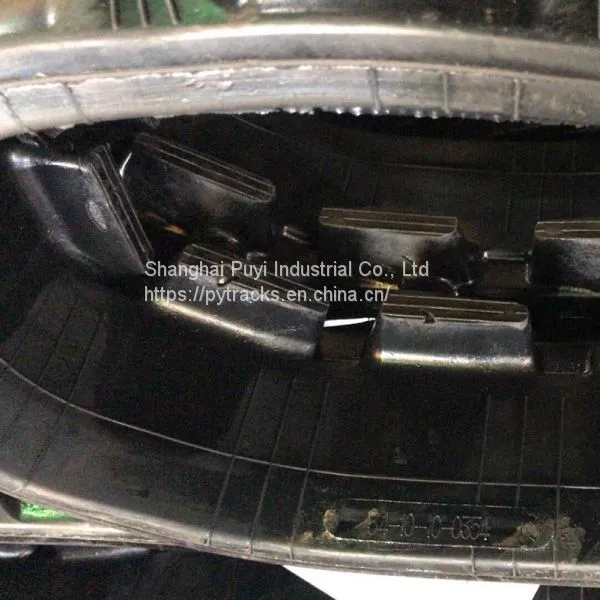

Help CenterRubber Tracks / Rubber Crawler 230 x 96 x 36 for Caterpillar 301.7D / Neuson ET18
Related Products
-
Small Size Excavator Rubber Tracks Low Noise 230mm X 96mm X 41 LinksUS$ 50 - 500MOQ: 1 Piece -
Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel CordsUS$ 50 - 500MOQ: 1 Piece
-
250mm Width Excavator Rubber Tracks For Mini Excavator Takeuchi TB23US$ 50 - 500MOQ: 1 Piece
-
Joint Free Mini Caterpillar Tracks , 48mm Pitch Rubber Tank Tracks 250 X 48 X 72 SizeUS$ 50 - 500MOQ: 1 Piece
-
250mm Width Rubber Track for Yanmar Vio Series Excavator (250X48.5KX84)US$ 50 - 500MOQ: 1 Piece
1.Product Information
| 1.Name of commodity | Rubber Track 230 x 96x 36 for mini excavators |
| 2.Width | 230mm |
| 3.Pitch | 96mm |
| 4.Links | 36 |
| 5.Total Length | 3456mm |
| 6.Weight | 55kg |
| 7.Material | Rubber & Steel |
| 8.Steel cord type | Continuous inner steel cord with joint free |
| 9.Warranty | Guarantee one year under normal use |
Application
| Brand | Original Size | POOYERT Size1 | Roller |
| 301.7D (CATERPILLAR) | 230x96x36 | 230x96x36 | B1 |
| 301.7DCR (CATERPILLAR) | 230X96X36 | 230x96x36 | B1 |
| 153 (GEHL) | 230x96x36 | 230x96x36 | B1 |
| GE222 (GEHLMAX) | 230x96x36 | 230x96x36 | B1 |
| SK15SR (KOBELCO) | 230x96x36 | 230x96x36 | B1 |
| ME1503 (MUSTANG) | 230x96x36 | 230x96x36 | B1 |
| ME1902 (MUSTANG) | 230x96x36 | 230x96x36 | B1 |
| ME2202 (MUSTANG) | 230x96x36 | 230x96x36 | B1 |
| 1503 (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 1503RD (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 1703 (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 1902 FORCE (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 1902RD (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 1902RD FORCE (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 2002 FORCE (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 2002RDV (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 2202RD (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| 2202RD FORCE (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| ET18 (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| EZ17 (NEUSON) | 230x96x36 | 230x96x36 | B1 |
| ET18 (WACKER) | 230x96x36 | 230x96x36 | B1 |
3.Production process
Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord
Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as
rubber block
2.Steel cord coverd with kevlar fibe
3.Metal parts will be injected with special compounds which can improve their performance
3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered
4.The mould with materials will be deliver in to the big production machine, the machinery use high
temperature and high volume press to make all the material together.
4. Packing
The goods will be packed by wrapping film then bundle on the wooden pallet by strong rope in order to make sure the safe transportation
5.Company introduction
Our firm established in 2000, with almost 20 years production and administration experience. With register capital around 2 billion yuan. Through 18 years develop, our company has producted various rubber tracks and related rubber product for our clients. Our goods share with good quality and exported to more than 100 countries and region.
