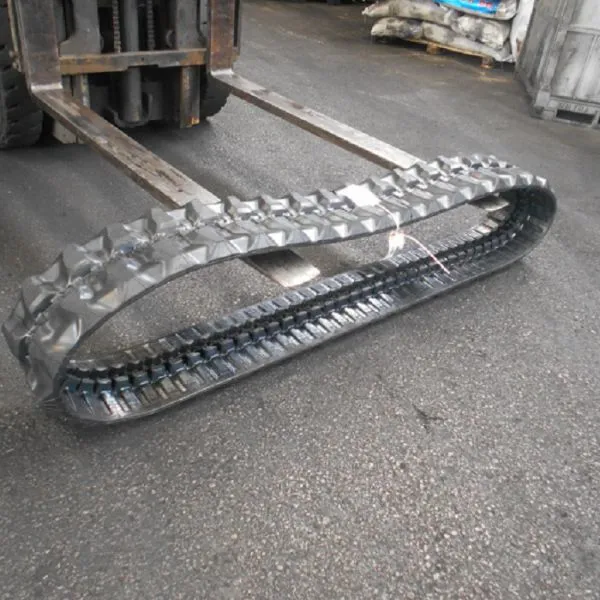

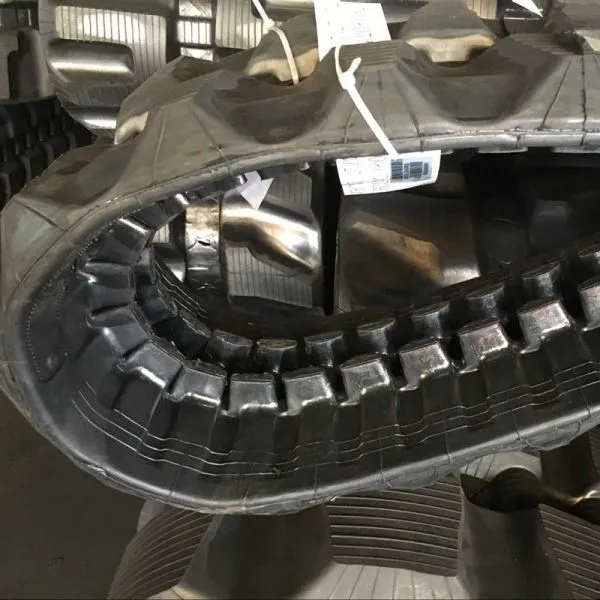

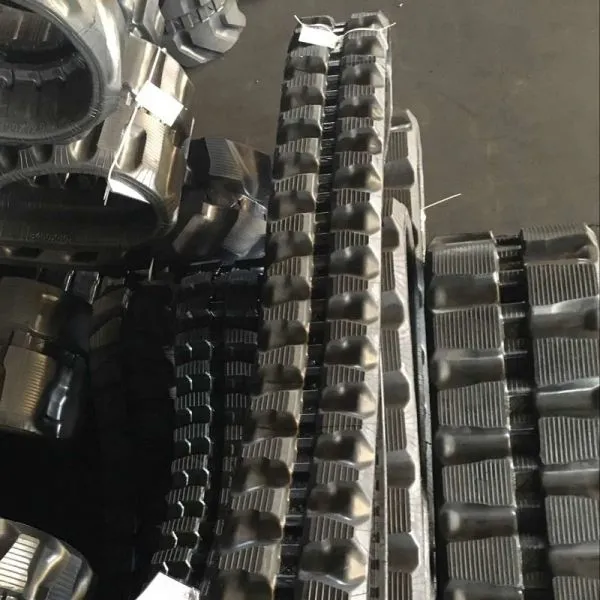

250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2

Shanghai Puyi Industrial Co., Ltd
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 thumbnail-1
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 thumbnail-2
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 thumbnail-3
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 photo-1
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 photo-2
250 * 52.5 * 73 Excavator Rubber Tracks Special For Airmann Ax18.2 / Hitachi Ex20.2 photo-3
US$ 50 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
POOYERT
Place of Origin:
China
Model Number:
250 * 52.5 * 73
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name POOYERT
Place of Origin China
Model Number 250 * 52.5 * 73
250*52.5*73 rubber tracks / rubber crawlers special for airmann ax18.2 / hitachi ex20.2



1.Product Information

1.Name of commodityRubber Track 250 x 52.5x 73 for mini excavators
2.Width250mm
3.Pitch52.5mm
4.Links73
5.Total Length3832.5mm
6.Weight75kg
7.MaterialRubber & Steel
8.Steel cord typeContinuous inner steel cord with joint free
9.WarrantyGuarantee one year under normal use




2.Application


BrandOriginal SizePOOYERT Size1Roller
AX18.2 (AIRMANN)250x52,5x73250x52,5x73NB1
AX22 (AIRMANN)250x52,5x73250x52,5x73NB1
AX22CGL (AIRMANN)250x52,5x73250x52,5x73NB1
AX25.3 (AIRMANN)250x52,5x73250x52,5x73NB1
FH22 (FIAT HITACHI)250x52,5x73250x52,5x73NB1
FH22.2 (FIAT HITACHI)250x52,5x73250x52,5x73NB1
EX18.2 (HITACHI)250x52,5x73250x52,5x73NB1
EX20.2 (HITACHI)250x52,5x73250x52,5x73NB1
EX22 (HITACHI)250x52,5x73250x52,5x73NB1
ZX25 (HITACHI)250x52,5x73250x52,5x73NB1
ZX25CLR (HITACHI)250x52,5x73250x52,5x73NB1


3.Production process


Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord

Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as

rubber block

          2.Steel cord coverd with kevlar fibe

          3.Metal parts will be injected with special compounds which can improve their performance

          3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered

          4.The mould with materials will be deliver in to the big production machine, the machinery use high

temperature and high volume press to make all the material together.





4. Packing

The goods will be packed by wrapping film then bundle on the wooden pallet by strong rope in order to make sure the safe transportatio

5.Parameter for more size
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580
300*52.5N72-98Y400*72.5K72-74

6.Company introduction

Our firm established in 2000, with almost 20 years production and administration experience. With register capital around 2 billion yuan. Through 18 years develop, our company has producted various rubber tracks and related rubber product for our clients. Our goods share with good quality and exported to more than 100 countries and region.



Product Tags: Rubber Track , rubber crawler , Construction machinery parts , spare parts , machinery , excavator
