Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords

Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords thumbnail-1
Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords thumbnail-2
Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords thumbnail-3

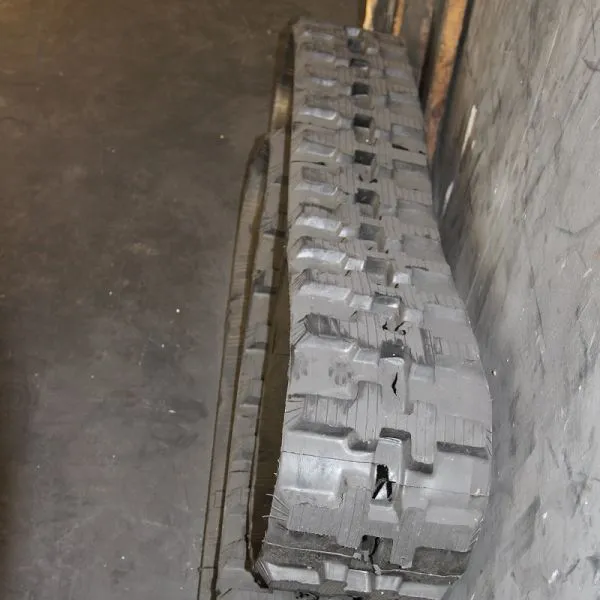

Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords photo-1

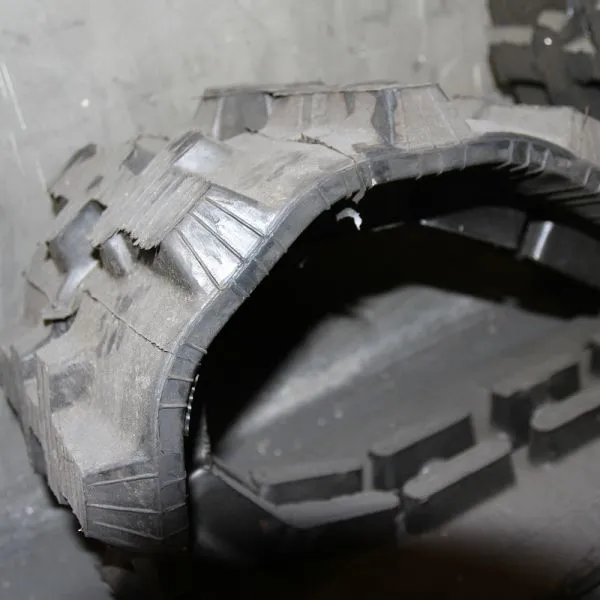

Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords photo-2

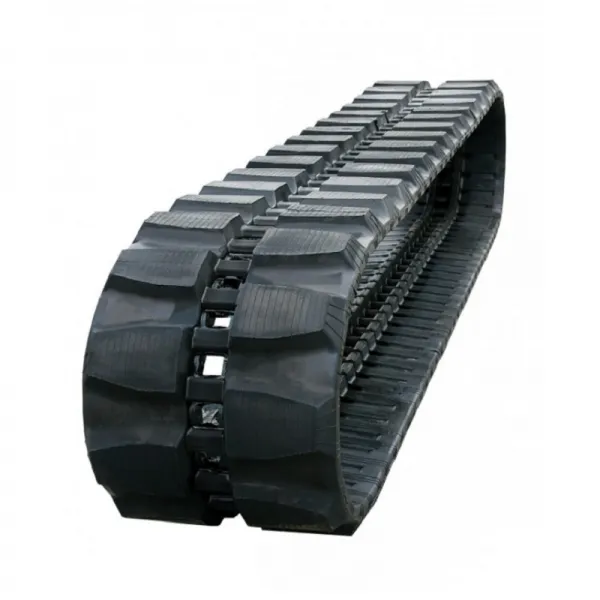

Less Vibration Rubber Crawler Tracks With 53 % Metal Parts 7 % Steel Cords photo-3
US$ 50 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
POOYERT
Place of Origin:
China
Model Number:
230 x 101 x 31
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name POOYERT
Place of Origin China
Model Number 230 x 101 x 31
230 x 101 x 31 rubber track with metal parts 53 % / steel cords 7 % / natural rubber 25 % for HINOWA excavator



1.Product Information

1.Name of commodity Rubber Track 230 x 101x 31 for mini excavators
2.Width 230mm
3.Pitch 101mm
4.Links 31
5.Total Length 3131mm
6.Weight 60kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free
9.Warranty Guarantee one year under normal use




2.Application

Brand Original Size POOYERT Size1 Roller POOYERT Size2 Roller
E1500 (EUROCOMACH) 230x101x31 230x101x31 B1 230x96x32 B1
DM15 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
DM15M (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
PT15G (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
VT1550 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
VT1650 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1


3.Production process


Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord

Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as

rubber block

          2.Steel cord coverd with kevlar fibe

          3.Metal parts will be injected with special compounds which can improve their performance

          3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered

          4.The mould with materials will be deliver in to the big production machine, the machinery use high

temperature and high volume press to make all the material together.


4. Packing

The goods will be packed by wrapping film then bundle on the wooden pallet by strong rope in order to make sure the safe transportation.

5.Parameter for more size
Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74

6.Company introduction

Our firm established in 2000, with almost 20 years production and administration experience. With register capital around 2 billion yuan. Through 18 years develop, our company has producted various rubber tracks and related rubber product for our clients. Our goods share with good quality and exported to more than 100 countries and region.

Contact person: JackieTel: 0086 21 37580296Cell: 0086 18217419579


Product Tags: Rubber Track , rubber crawler , Construction machinery parts , spare parts , machinery , excavator
