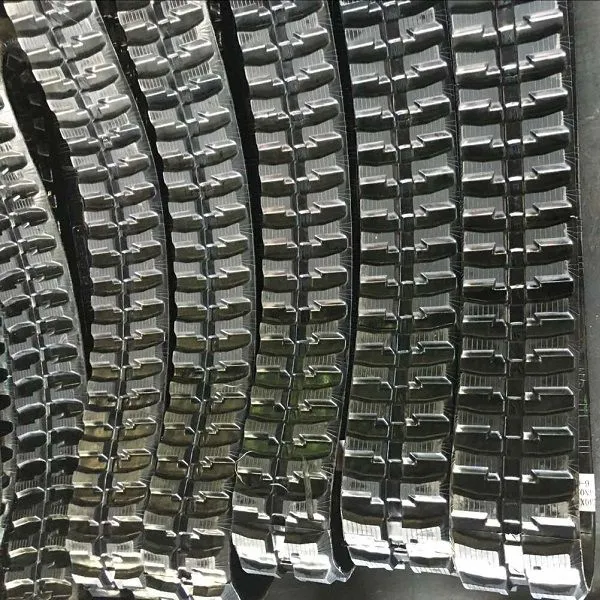

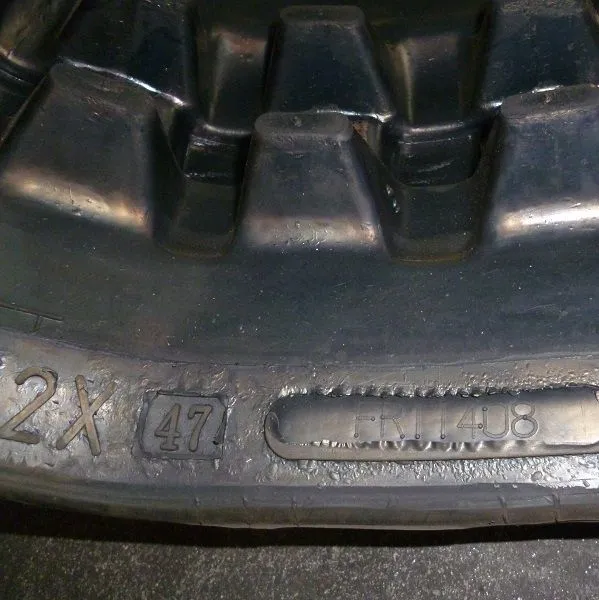

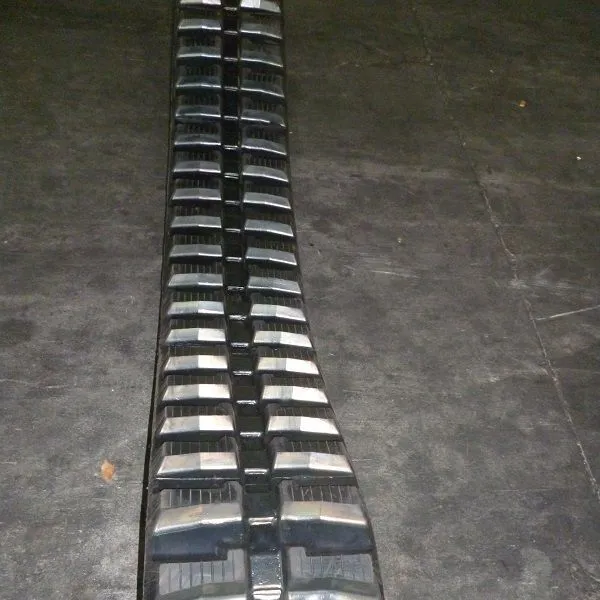

Rubber Tracks 230 x 72 x 47 for KOMATSU (PC07.7FR.1) / YANMAR (SV17CR) / IHI (12J)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

1.Product Information

----------------------------------------------------------------------------------------------------------------------------------------------------------------------
2. State of art technology

Thanks for endless our clients believe us and place the order to us. So we have enough found to invest on R&D every year.
With several years research, we applied the Continuous Rubber Track inside the rubber track.

Continuous rubber track means the steel inside the rubber in process is coherent which means there are no weld joint between the steel. Comparing with common rubber track, Continuous Rubber track has some Performance Advantages as follow:

1: Good tensile strength
The framework of the continuous rubber track is wind-up by one, single steel wire which offers a uniform a uniform tensile strength for which increase the whole track's tensile stength.

2: Low elongation
Cause of the continuous structure of the track, the steel wire internal hard to be elongated so that gives the track a very low elongation.

3: Good anti-slip ability for steel wire internal
The steel wire under the continuous structure forced uniform during the process of manufacture which makes the steel wire internal has a good ability of anti-slip during the rubber track's working.

4: Stable dimension for pitch
The continuous structure assures low elongtion for rubber track which makes the dimension of the pitch more stable.

5. Steel wire not easy to break
The continuous structure can offer a uniform tensile strength for the steel wire internal which makes the steel wire not easy to break and appear on the surface of the rubber track.

Since years, POOYERT makes use of the continuous steel-cable technology in order to enlarge strength and resistance. POOYERT rubber tracks are 40% stronger and long lasting, and the costs for the customers are reduced.
-----------------------------------------------------------------------------------------------------------------------------------------------

3.Production process

Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord

Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as

rubber block

          2.Steel cord coverd with kevlar fibe

          3.Metal parts will be injected with special compounds which can improve their performance

          3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered

          4.The mould with materials will be deliver in to the big production machine, the machinery use high

temperature and high volume press to make all the material together.
