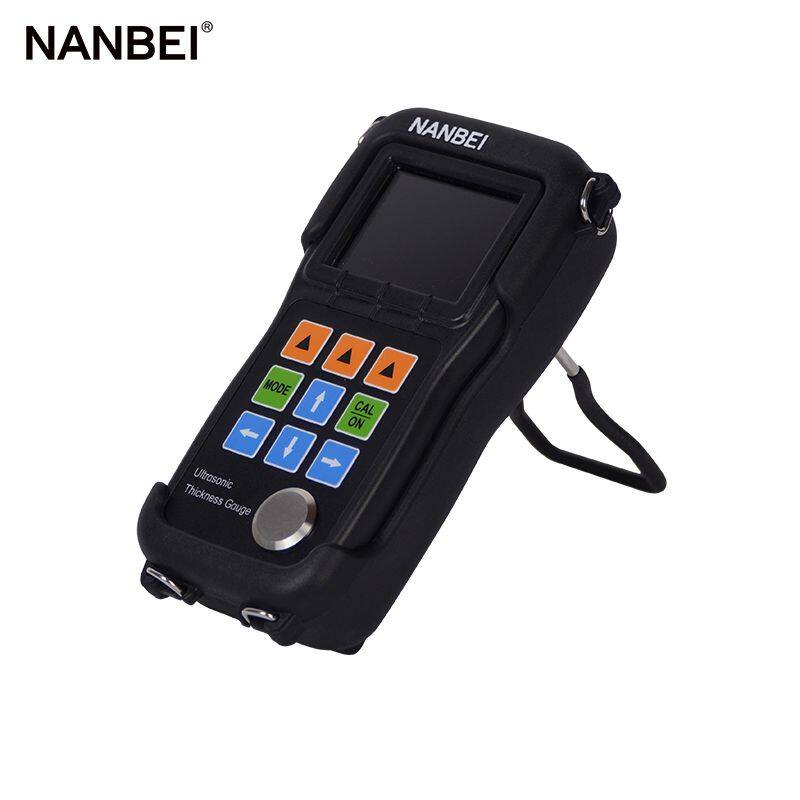

Specifications and accessories of UM-2D ultrasonic thickness gauge
Operating principle:
| Standard mode | P-E (pulse-echo) method with dual-crystal probes |
| Coating mode | E-E (echo-echo) method with dual-crystal probes |
Probe Zero Adjustment:
| Selectable | 1-point calibration: normal measurement |
| 2-point calibration: curve surface measurement or other special application with a high precision |
V-path correction: Automatic
Measuring range(Depending on probe, material and surface condition):
|
1.0mm to 300mm in standard mode |
| 3.0mm to 18.0mm in through coating mode |
Resolution:
| H | 0.01mm/0.1mm |
| H≥100.0mm | 0.1mm |
Units:
Selectable: inch or mm
Display:128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)
Measurement update rate: 4 Hz
Material velocity range: 1000 -- 9999 m/s;
Power: Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating time:Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode
Auto shut-off:After 5 minutes of non-use
Operating temperature:-10ºC to +50ºC; (Specification to -20ºC on request)
Size: 149mm×73mm×32mm (H×W×D)
Weight: 200g; 7oz (including batteries)
Data logger capacity:Up to 500 readings can be divided into a maximum of 5 files (user-selectable)
Operating language:English and Chinese
Measuring error:
Up to 10mm: ±0.05mm
Above 10mm: ±(0.5%H+0.01)mm
Repeatability: ±0.05mm
Application software: UMVIEW
Interfaces:Serial RS 232C port in combination with a communicative cable;
Standard Package:
| UM-2D thickness gauge |
| Standard probe (PT-08) |
| Carrying case |
| Two 1.5V AA alkaline batteries |
| Couplant |
| Operating manual |
| Certification of quality |
| Packaging list |
Optional accessories:
| Attachable Rubber Sheath |
| Numerous special probes on request |
| Couplants and high-temperature couplant |
| 4-step/5-step/6-step calibration block |
| Application software with Data transmission cable |
