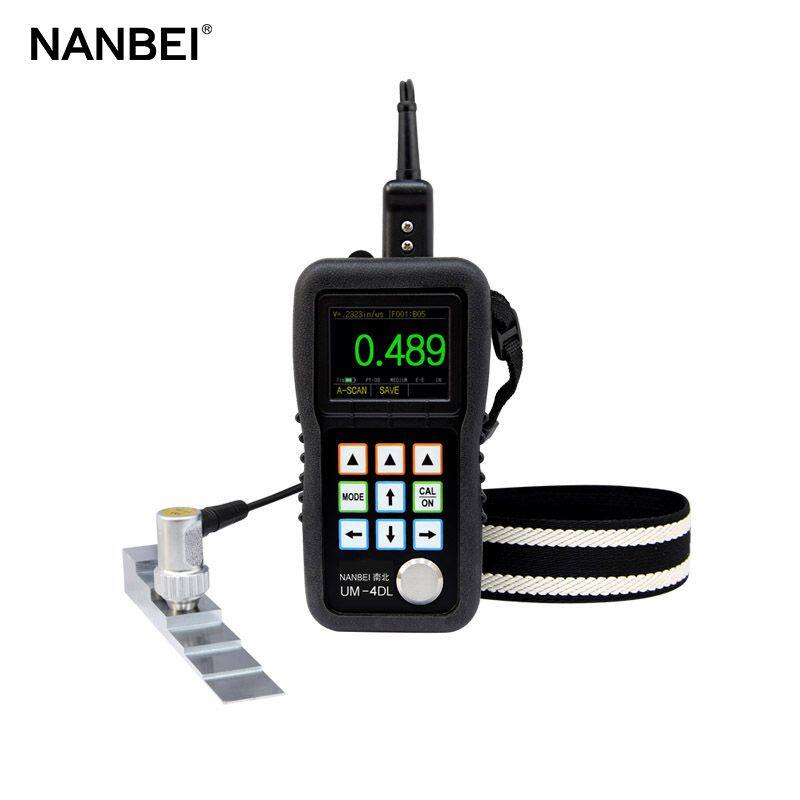

Industrial parts ceramic ultrasonic steel plate pipe wall thickness gauge
The UM-4 series is a new generation of gage, breakthrough technology for the same budget to provide better performance of the instrument, which greatly improved the performance of the previous ultrasonic thickness, with better measurement stability and repeatability. Widely used in petrochemical, power, boat and pipe, pressure vessel and storage tank wall thickness measurement. Can measure the thickness of metal materials, pipes, pressure vessels, sheet (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials;
The main function
2.4-inch QVGA (320 × 240 dot matrix) color OLED screen, contrast 10000: 1, A-scan snapshot,
Zero-crossing measurement technology, gain third gear adjustable, maximum / minimum capture, difference / reduction rate mode,
High / low alarm, built-in multiple probe compensation line, the thickness of the color with the coupling or alarm and dynamic changes.
Penetration coating function: for the removal of the paint layer of the substrate net thickness measurement
Large capacity storage function: can store 100,000 thickness value
Technical Parameters
| Display screen | 2.4QVGA (320 × 240) color OLED screen, contrast 10000: 1 |
| working principle | Ultrasonic pulse / echo method and echo / echo method using a twin crystal probe |
| Measuring range | Standard mode: 0.6 to 508 mm (0.025 to 20.00 inch) Coating mode: 3-25mm (for the removal of the paint layer of the substrate net thickness measurement) Coating thickness less than 2mm Depending on the probe used, the material to be measured and the surface condition |
| Pipe measurement lower limit (steel) | Φ20×3mm(PT08 Probe) Φ15×2mm(PT06 Probe) The indication error does not exceed ±0.1mm |
| Measure the resolution | 0.01 or 0.1mm(0.001 or 0.01in) |
| Unit | mm or inches |
| Indication error | ±0.05mm (H≤10mm) ±(0.5% H+0.01 ) (H>10mm) Note: H is the thickness of the measured object |
| Indication stability | Using a breakthrough zero-crossing measurement technique, the thickness measurement is not affected by the attenuation strength of the material, the gain and the gate height, and has high measurement stability and reliability. |
| Repeatability | 0.05mm |
| Gain | High, medium and low third gear adjustable |
| storage | Grid format storage, can store 100,000 thickness value, can be connected to the computer to export data, data can be statistics, analysis, archiving, printing reports and other operations. |
| Communication Interface | USB 2.0 Full Speed interface |
| Display mode | Thickness value mode, minimum / maximum capture mode, difference / reduction rate mode |
| V path correction | Automatic V sound path correction, compensation for dual crystal probe non-linearity |
| Measure the update rate | 4HZ per second, 8HZ, 16HZ optional |
| Material sound velocity range | 500-9999m/s,0.0179-0.3937in/us |
| Working language | Chinese, English, Japanese, German, French five languages to choose from |
| Alarm settings | Maximum / minimum alarm, dynamic changes in the thickness of the alarm when reading the color |
| Power | Two 1.5V AA batteries |
| Operating time | Two AA batteries, the use of time is greater than 35 hours |
| Turned off | Optional 5,10,20 minutes without operation after the automatic shutdown, or can only manually shut down |
| Operating temperature | -10 to +50 ºC, with special requirements up to -20 ºC |
| Dimension | 153mm×76mm×37mm(H×W×D) |
| Wight | Containing the battery 280g |
| warranty period | 1year |
Standard configuration
| Number | Name | Model | Quantity |
| 1 | Thickness gauge host | UM-4DL | 1 |
| 2 | Standard probe | TC510 | 1 |
| 3 | Instrument box | None | 1 |
| 4 | Alkaline batteries | 1.5V | 2 |
| 5 | Coupling agent 50g | None | 1 |
| 6 | USB cable | USB2.0 | 1 |
| 7 | Communication software CD | DataView | 1 |
Option
Rubber jacket;
Numerous selectable probes;
Calibration ladder test block;
Coupling agent and high temperature coupling agent
Interface cable and communication software
Packing and Shipping
Carton Case

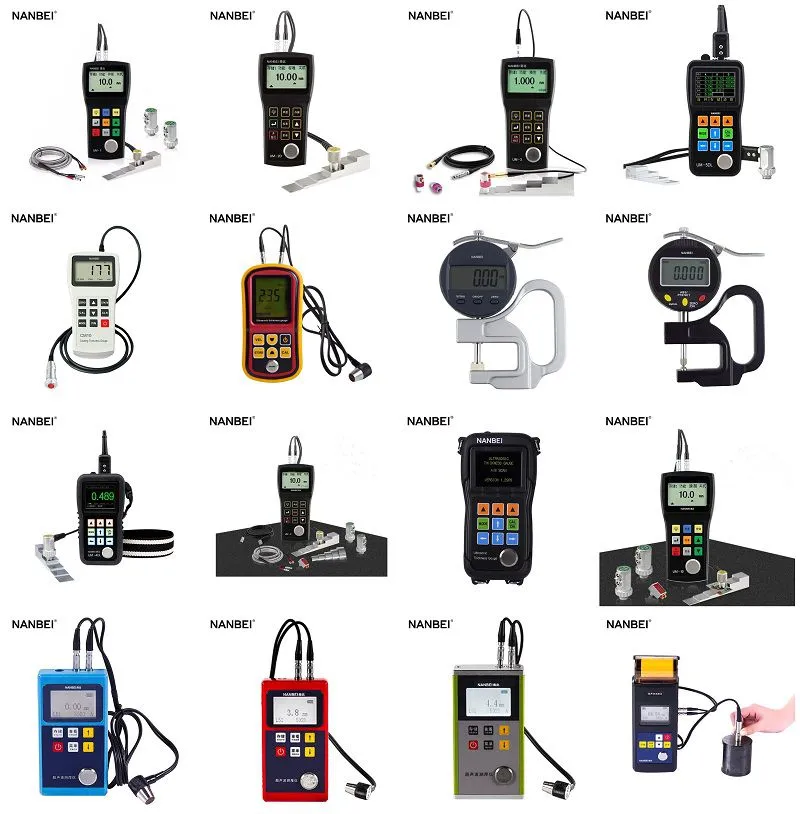

Other types
