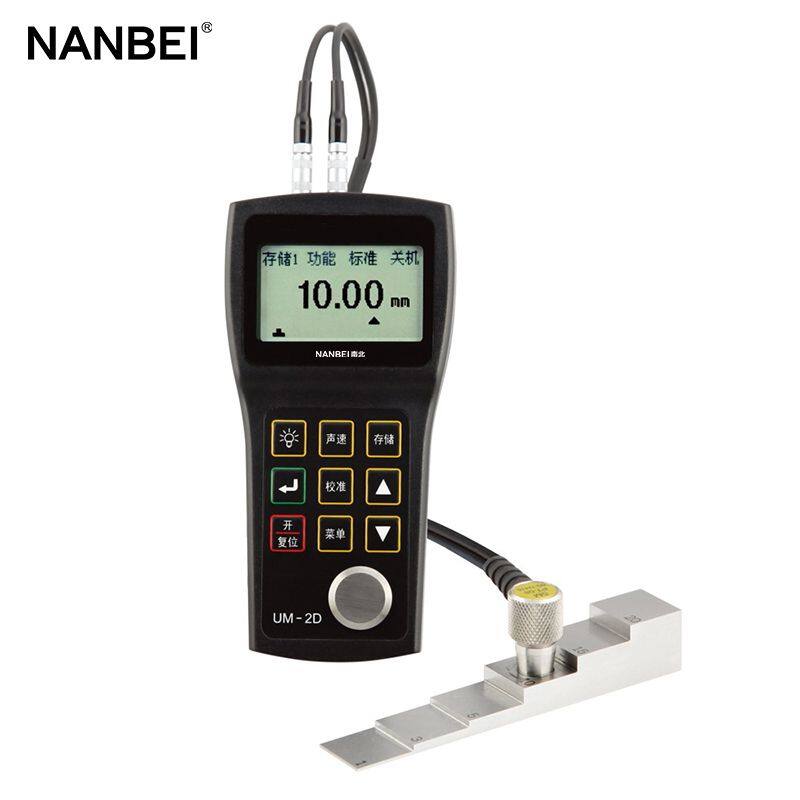

Portable Ultrasonic Thickness Gauge for Test Metal
US$ 476 - 1156
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
UM-2D
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days
Related Products
-
Ce Approval New Digital Auto Pipe Ultrasonic Thickness Gauge for SaleUS$ 525 - 769MOQ: 1 Set -
Industrial Parts Ceramic Ultrasonic Steel Plate Pipe Wall Thickness GaugeUS$ 776 - 1610MOQ: 1 Set
-
LCD Display High Precision Electric Balance With CE ApprovedUS$ 383 - 615MOQ: 1 Set
-
High Precision Penetrating Coating Ultrasonic Thickness GaugeNegotiableMOQ: 1 Set
-
Car Paint Ultrasonic Thickness Gauge Portable Coating Thickness GaugeNegotiableMOQ: 1 Set
Brand Name
NANBEI
Place of Origin
China
Model Number
UM-2D
Portable ultrasonic thickness gauge for test mental
Feature
UM-2 series ultrasonic thickness gauge is a high accuracy, hand-held thickness meter of high stability.Domestically, we are the first to develope the ultrasonic thickness meters which can penetrate the coating in 2006.
The UM-2D offers through-coating thickness measuring capability. It measures the thickness of an object by precisely calculating the times of the probe sending ultrasonic pulse to the object and passing through the object until the probe receiving the reflection from the boundary.
It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features zero drift,reliable and stable reading,and no need of zero calibration.You can now test painted objects without needing to remove the paint or make corrections for the paint thickness.Specification
| Display Type | 128×64 dot-matrix LCD screen with EL backlight |
| Operating Principle | P-E (pulse-echo) , E-E (echo-echo) with dual-crystal probes (Only UM-2D) |
| Measuring Range | Std. mode: 0.8mm to 300mm, depending on material and probes Through coating: 3mm-20mm with PT-08 probe(Only UM-2D) |
| Measuring Limits of Tube (Steel): | Φ20mm×3.0mm(PT-08 probe) |
| Φ15mm×2.0mm(PT-06 probe) | |
| The measuring error is up to ±0.1mm | |
| Measuring Error | Low limit to 10mm: ±0.05mm |
| 10mm to high limit: ± (0.5%H+0.01) mm | |
| Note: H is the actual thickness of the testing material | |
| Repeatability: | 0.05mm |
| Display Resolution | 0.01mm (0.001in) |
| Units | Inch or Millimeter |
| Calibration Method | Zero calibration,Two-point calibration |
| V-Path Correction | Automatic |
| Update Rate | 4Hz |
| Material Velocity Range | 1000 ~ 9999 m/s (0.0394 to 0.3937 in/us) |
| Memory Function | 5 arrays are divided to store 500 thickness values |
| Minimum | Move the probe along the surface of the testing material, the gauge is able to find the |
| Checking | thinnest point automatically. |
| Warning Function | If the measured value exceeds the pre-set thickness limit,the warning tone will start. |
| Velocity Storage | Velocities of 5 different materials can be stored totally |
| Languages | English and Chinese |
| Communication Port | USB port or Serial RS 232C port (Optional) |
| Application Software | UmVIEW Software for transmission,storage,analysis and documents editing (Optional) |
| Power Requirements | Two 1.5V AA alkaline batteries (Warning with low battery voltage) |
| Operating Time | Up to 200 hours with alkaline batteries (without backlight) |
| Instrument Shut-off | AUTO OFF after 5 minutes of inactivity |
| Operating Temperature | -10°C to +50°C ,-20°C in special requirements |
| Size | 149mm X 73mm X 32mm(H X W X D) |
| Weight | 210g including batteries |
