Home > Instruments & Meters > Weighing & Measuring Apparatus > Gauge > Digital Coating Thickness Tester Plastic Car Paint Thickness Gauge

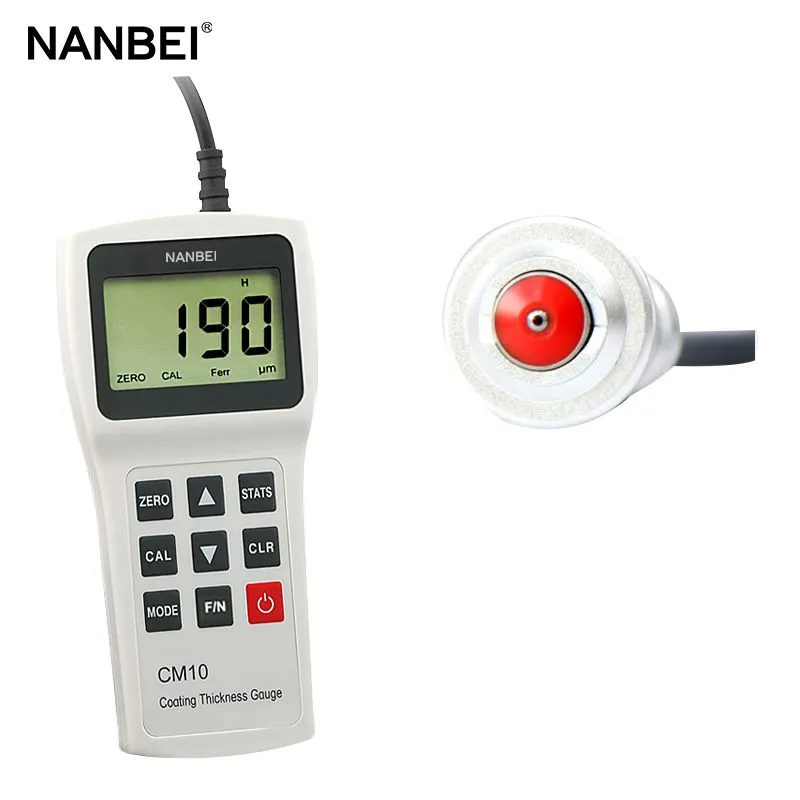

Digital Coating Thickness Tester Plastic Car Paint Thickness Gauge
US$ 462 - 883
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
CM10FN
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days
Related Products
-
Portable Ultrasonic Thickness Gauge for Test MetalUS$ 476 - 1156MOQ: 1 Set -
Ce Approval New Digital Auto Pipe Ultrasonic Thickness Gauge for SaleUS$ 525 - 769MOQ: 1 Set
-
Industrial Parts Ceramic Ultrasonic Steel Plate Pipe Wall Thickness GaugeUS$ 776 - 1610MOQ: 1 Set
-
LCD Display High Precision Electric Balance With CE ApprovedUS$ 383 - 615MOQ: 1 Set
-
High Precision Penetrating Coating Ultrasonic Thickness GaugeNegotiableMOQ: 1 Set
Brand Name
NANBEI
Place of Origin
China
Model Number
CM10FN
Digital coating thickness tester plastic car paint thickness gauge
Measuring principle
Magnetic induction principle (Fe): measuring steel, iron and other ferromagnetic metal substrate on the non-magnetic coating thickness, such as paint layer, all kinds of anti-corrosion coating, paint, powder coating, plastic, rubber, synthetic materials, Chromium, zinc, lead, aluminum, tin, cadmium and so on.
Eddy current principle (NFe): measurement of copper, aluminum, stainless steel and other non-ferromagnetic nature of all non-conductive layer thickness, such as paint layer, all kinds of anti-corrosion coating, paint, powder coating, plastic, rubber, synthetic materials, , Phosphating film and so on.
Technical parameters
| Model | CM10FN | working principle | Magnetic induction |
| Measuring range(um) | 0-10000 | Low resolution | 1 |
| Test Conditions | Minimum radius of curvature(mm) | 10 | |
| The smallest area of the diameter(mm) | 40 | ||
| Matrix critical thickness(mm) | 2 | ||
| Indication error(um) | ±(2%H+10) | ||
| display | High contrast segment code LCD screen (LED backlight) | ||
| Statistical function | The number of measurements, the maximum, the minimum, the average, the standard deviation | ||
| Calibration method | Zero point, one point, two points calibration | ||
| Operating temperature | -10ºC to +50ºC | ||
| Automatic shut-down | 3 minutes after no operation automatically shut down | ||
| power supply | Two 1.5V AA batteries, when the battery power is low, there is a low voltage prompt | ||
| weight | Containing battery 200g | ||
| size | 149mmX73mmX32mm(HxWxD) | ||
Standard configuration
| Standard configuration | Option |
| CM10 Coating Thickness Gauge | Calibration film |
| Calibration film | Aluminum plate zero plate |
| Iron-based / aluminum-based zero plate | Iron-based zero plate |
| Operation Manual | |
| Two AA batteries | |
| Certificate, packing list | |
| Instrument box | |
| Discs, data lines |
Packing and Shipping
Carton Case
