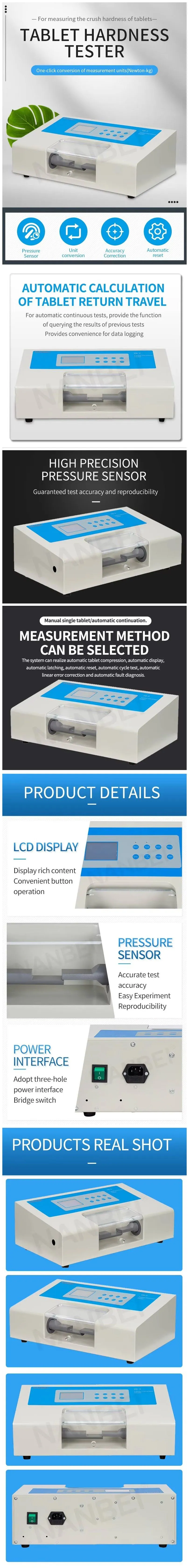

Laboratory automatic tablet hardness tester
Introduction:
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard(Tablet hardness tester )Q/12XQ0186-2010
Model:YD-1
Features:
The tablet is loaded and pressed artificially.
It has high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously.
Test data is displayed and locked automatically, so can test be reset and cycled.
Automation: auto-test, auto-diagnose, auto-alarm
Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Moving distance of probe 20mm
Power 220V/ 50Hz/ 10W or 110V/ 60Hz/ 10W
Dimension (320*200*100)mm3
Model:YD-2
Features:
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test data is displayed and locked automatically, so can test be reset and cycled.
It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
The parameters can be preset at any time. Either preset or real data is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Probe procession range (3~40)mm
Test period 20S/P
Max number in each group 100P
Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension (500*300*160)mm3
Model:YD-3
Features:
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test data is displayed and locked automatically, so can test be reset and cycled.
It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
The parameters can be preset at any time. Either preset or real data is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Probe procession range (3~40)mm
Test period 20S/P
Max number in each group 100P
Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension (400*240*160)mm3
