Home > Instruments & Meters > Test Instrument > Test Machine > Disintegration Tester for Tablet Testing

Disintegration Tester for Tablet Testing

Disintegration Tester for Tablet Testing photo-1
US$ 521 - 679 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
BJ-2
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
5 days
Brand Name NANBEI
Place of Origin China
Model Number BJ-2
Power Electronic
Usage Auto Testing Machine

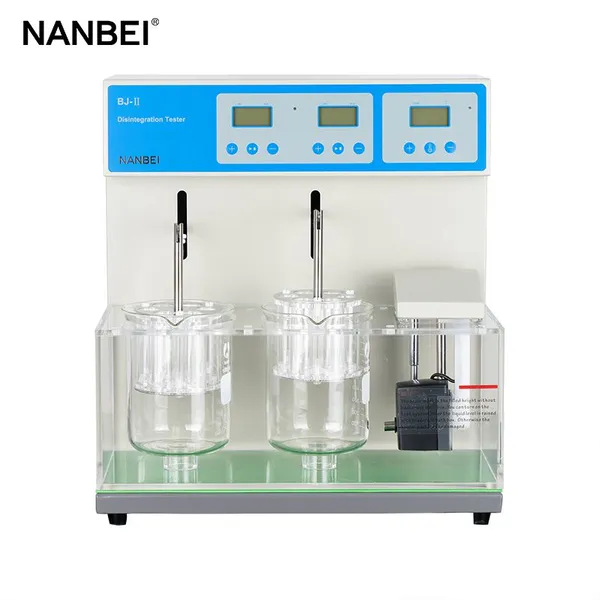

Disintegration Tester for Tablet Testing

Description

There are twelve tubes in two basket assembly.
Each test station is driven independently. Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.

Technical data

Basket assembly 2
Nacelle back and forth frequency (30~32) /min
Nacelle back and forth range (55±1)mm
Automatic time range (5~120)min
Accuracy of controlling temperature (37±0.5)ºC
Power 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W
Dimension (400×300×420)mm

Model comparison

Model
BJ-1
BJ-2
BJ-3
Basket assembly
1
2
3
Nacelle back and forth frequency
 (30~32) /min
(30~32) /min
(30~32) /min
Nacelle back and forth range
(55±1)mm
(55±1)mm
(55±1)mm
Automatic time range
(5~120)min
(5~120)min
(5~120)min
Accuracy of controlling temperature
(37±0.5)℃
(37±0.5)℃
(37±0.5)℃
Power
 600W
 600W
 600W
Dimension(mm)
 260×300×420
400×300×420
540×300×420





Product Tags: Disintegration Tester , Drug Disintegration Tester , Tablet Disintegration Tester , Auto Disintegration Tester , Disintegration Tester BJ , Disintegration Test Apparatus , Pharmacy Disintegration Tester , Lab Disintegration Tester , Solid Disintegration Tester
