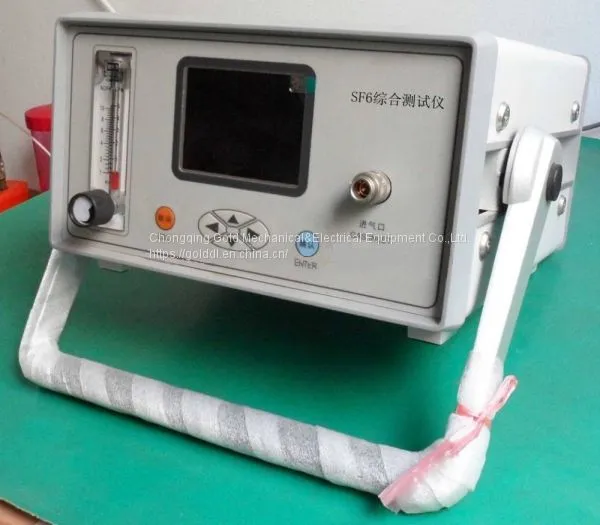

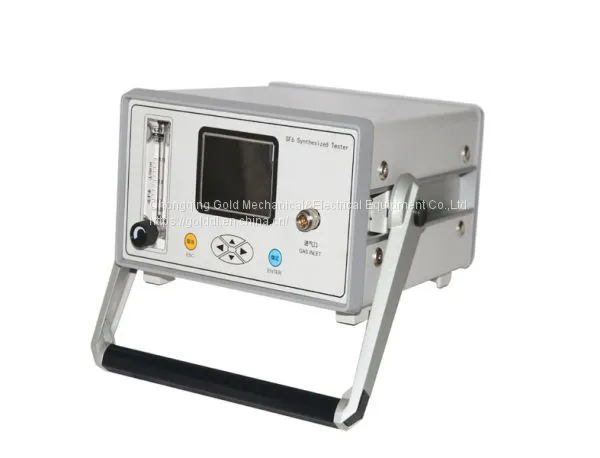

GDZH-2H SF6 Gas Dew Point and Decomposition Multifunctional Tester
Introduction:
SF6 synthesized tester integrates SF6 micro-water detector, SF6 purity tester, and SF6 decomposition analyzer as one, it can test dew point, micro-water content(ppm), SF6 purity, concentration of SO2, H2S, CO(optional) and HF(optional);
Specifications:
Purity |
Measuring range: 0%～100% |
|
Accuracy: ±0.5% | ||
Measuring time: | ||
Dew point |
Measuring range: －80℃～+20℃ |
|
Accuracy: ±0.5℃（－80℃～－60℃） | ||
Response time(+20℃) |
63% need 5S, 90% need 45S (－60℃～＋20℃) |
|
63% need 10S，90% need 240S (+20℃～－60℃) | ||
H2S |
Measuring range: 0～200ppm |
|
The minimum detectable amount: ≤0.1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0～200ppm | ||
Repeatability: ≤2% | ||
SO2 |
Measuring range: 0～200ppm |
|
The minimum detectable amount: ≤0.1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0～200ppm | ||
Repeatability: ≤2% | ||
HF(optional) |
Measuring range: 0～20ppm |
|
The minimum detectable amount: ≤0.01ppm | ||
Accuracy: ±0.5% | ||
Stability: 0～20ppm | ||
Repeatability: ≤2% | ||
CO(optional) |
Measuring range: 0～1000ppm |
|
The minimum detectable amount: ≤1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0～1000ppm | ||
Repeatability: ≤2% | ||
Temperature |
－40℃～＋60℃ |
|
Humidity |
0～100%RH |
|
Power supply |
AC 220V |
|
Built-in rechargeable battery | ||
Battery |
Charging time: 20 hours; can work for 10 hours |
|
Weight |
5kg |
|
Dimension |
250×150×300mm3 |
|
Working temperature |
－40℃～＋80℃ |
|
Features:
Fast and save gas: It can complete the detection for water content, purity and gas concentration simultaneously. After set-up and start the test, the measuring time of dew point is about 5min and SF6 purity and gases concentration is about 2min;
Self-lock joint: The self-lock joint is imported from German which is safe, reliable and without gas leakage.
Data storage: It can store 200 groups test results.
Curve display: Large-screen curve display the process of dew point measurement;

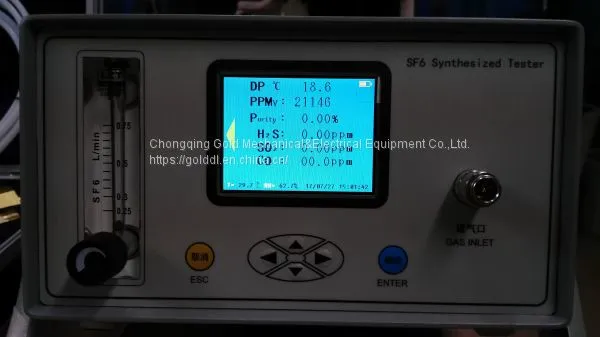

Clearly display: Dew point, micro-water(ppm), SF6 purity, SO2, H2S, CO(optional) and HF(optional) concentration, temperature, humidity, time, date, etc, are displayed by LCD.
Built-in power supply: built-in 4Ah chargeable lithium battery, can work for 10 hours.
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
