Help Center155M 1X9 WDM Optical Transceiver With With 1310/1550nm
Related Products
-
1310/1550 WDM SFF Transceiver BIDI SFF ModuleUS$ 6 - 10MOQ: 1 Piece -
155M 100KM 1550nm Dual Fiber SFP Optical TransceiverUS$ 15 - 25MOQ: 1 Piece
-
1000Base-T SFP Transceiver Copper RJ45 Module With SGMII InterfaceUS$ 8 - 15MOQ: 1 Piece
-
2.67G 10KM LC DWDM SFP Optical TransceiverUS$ 15 - 25MOQ: 1 Piece
-
3G HD-SDI Video SFP Optical Transceiver With 1310nm 40km DDMUS$ 100 - 135MOQ: 1 Piece
Description:

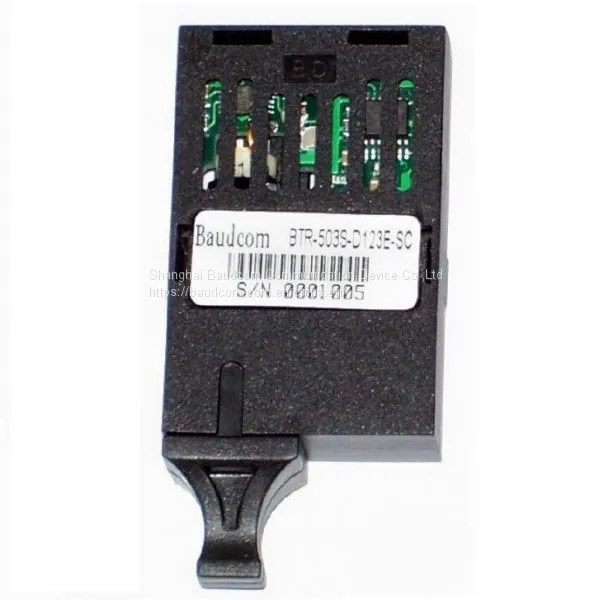

Baudcom, BDTR-303 transceiver is a series single mode single fiber module designed for optical data communication applications. It is electrically
compatible with the two fibers MSA transceiver.Integrated with 1310/1550nm WDM coupler to achieve up to 80km point-to-point single fiber application, the transceiver modules support data
rates up to 155Mbps.The transceiver module supplies the Differential
PECL of 3.3/5.0 Voltage. Together with BDTR-5** series module, they can provide the system designer with products to implement a range of FDDI and
ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3、SDH/STM-1 for Telecommunication.The transceiver has excellent reliability.
Commercial level transceiver module which operating at 0℃ to 70℃ and Industrial level which operating extended temperature as -40℃ to +85℃
for available.
Features:
Multi-sourced 1X9 package with single SC/PC receptacle;
1310nm FP-LD/1550nm Rx with 1310/1550nm WDM,
Single mode single fiber bi-directional transmission
Up to 80km with 9/125μm SMF;
PECL signal input and output;
Single +3.3V or +5V power supply;
Wave solderable and washable with process plug inserted;
Two temperature ranges: 0°C to +70°C for commercial level, -40°C
to +85°C for industrial level;
Operates at data rates of 155Mbps;
