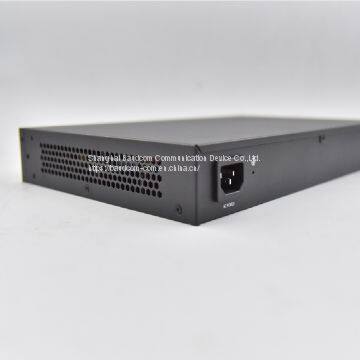

Help CenterFTTX FTTH 2 PON Ports GEPON OLT
Related Products
-
Fiber to Home New Version Cost Effective 8Ports GPON OLTUS$ 1150 - 1250MOQ: 1 Piece -
Optical Line Terminal 2 PON Ports GEPON OLTUS$ 280 - 380MOQ: 1 Piece
-
19 Inch Rack Mount 4PON Port EPON OLT With 4GE+4SFP UplinkUS$ 400 - 450MOQ: 1 Piece
-
4 Ports Mini GEPON OLT System With 4GE+4SFP UplinkUS$ 360 - 400MOQ: 1 Piece
-
Fiber to Home 8 Ports GEPON OLT With 8GE+4GE SFP+4*10G SFP UplinkUS$ 680 - 725MOQ: 1 Piece
1.Introduction
BD-OLT-2000L is designed for chassis OLT device which provides 2 downlink GE- PON ports, 4 uplink GE SFP ports and 2 10/100/1000M RJ45 ports. The height is only 1U for easy installation and space saving. Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration. BD-OLT-2000L is applied for commercial and grid network digital management to provide perfect, smart, strong, advanced, professional solutions for “automatic distribution” and “electricity information collection” in the implemented project for the national grid.
Ordering information
| BD-OLT-2000L | 2 port OLT, 2PON ports,4*10/100/100 optical SFP slot uplink ports and 2 copper gigabit uplink ports, advanced Layer 2 features, EMS GUI manager |
| BD-4311S-E2CDA | EPON OLT SFP PON module , Tx1490nm/ Rx1310nm ,1.25Gbps/1.25Gbps, 1000BASE-PX20 |
| BDTRP413L1SN-20 | 1.25G Optical SFP,used for uplink optic port |
2.Features:
Carrier-class stability and network resiliency
Support PON fiber redundancy protection and device redundancy protection protocol
Dual power supply input and power redundancy
-
All PON and GE ports provide L2 full-line speed without losing packets
Full PON service
Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU)
Hot plug PON fibber module design, the farthest 40Km transmission distance
Support 128bits triple churning function to ensure the confidential for the data transmission
-
Support dynamic bandwidth distribution DBA algorithm
Powerful OAM
Use packet forwarding based on hardware to be effective for feature detection and packet filtering
Support auto protection and user blocking for ARP attack based on MAC address
3.Specifications
| Item | BD-OLT-2000L |
| PON features
|
IEEE 802.3ah EPON
China telecom/Unicom GEPON standard 20Km for single fibber Access 64 terminals for single fibber PON Uplink and downlink triple churning encrypted function ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade PON transmit and inspect receiving optical power |
| L2 features | 4K MAC address
4K VLAN entries Port-based QinQ and Selective QinQ (StackVLAN) ONU remote loop detecting alarm Bi-directional bandwidth control |
| Security features | Port Isolation
MAC address binds to port and port MAC address filtration |
| Reliability | Loopback-detection
Double fault-tolerant backup of host program and configuration file 1+1 power hot backup |
| Maintenance | Telnet-based statistics
802.3ah Ethernet OAM Ping Command-line interface（CLI）, Console, Telnet and LCT configuration System configuration with SNMP |
| Switching capacity | 32Gbps |
| Service port | 2*PON，4*GE SFP+2 10/100/1000M BASE-T |
| Redundancy design | Dual power supply, support AC input |
| Power supply | AC：90～260V，47～63Hz ； |
| Power consumption | ≤25W |
| Outline dimensions (mm) (W*D*H) | 340mm×220mm×44mm |
| Weight (in maximum configuration) | ≤3kg |
| Environmental parameter | Working temperature：0°C～45°C
Storage temperature：-40°C～70°C Relative humidity：10%～90%，no condensing |
Application:
