4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink

4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink thumbnail-1
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink thumbnail-2
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink thumbnail-3
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink thumbnail-4
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink photo-1
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink photo-2
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink photo-3
4 Ports Mini GEPON OLT System With 4GE+4SFP Uplink photo-4
US$ 360 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-OLT-4000L
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baudcom
Place of Origin China
Model Number BD-OLT-4000L
1U Pizza-Box OLT Series

BD-OLT-4000 OLT is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment .

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.

4PON Ports 1U Pizza-Box OLT

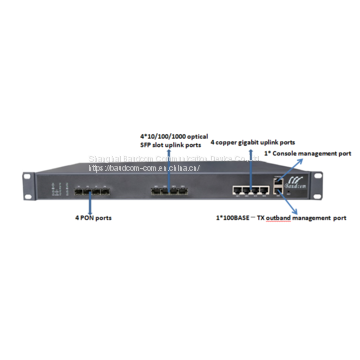

4PON Ports 1U Pizza-Box OLT provides 4GE(copper) and 4SFP slots Combo interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.

Specifications


Item

4 PON Ports OLT

Chassis

Rack

1U   19 inch standard box

Slots

NA

Uplink Port

QTY

8

Copper

10/100/1000M   auto-negotiable,RJ45:8pcs

SFP

4   SFP slots（Combo）

PON Port

QTY

4

Physical   Interface

SFP   Slots

Connector   Type

1000BASE-PX20+

Max splitting ratio

1:64

Management   Ports

1*100BASE－TX   outband port

1   CONSOLE port

PON Port Specification

（Apply   to BAUDCOM Pon module）

Transmission   Distance

20KM

PON   port speed

Symmetrical   1.25Gbps

Wavelength

1490nm   TX,1310nm RX

Connector

SC/PC

Fiber   Type

9/125μm   SMF

TX   Power

+2～+7dBm

Rx   Sensitivity

-27dBm

Saturation   Optical Power

-6dBm

Management Mode

SNMP,Telnet,CLI management mode.

Management Function

Fan Group Detecting

Port Status monitoring and configuration management;

Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS,   etc;

EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU configuration and management

User management

Alarm management

Layer-two Switch

Support port VLan and protocol Vlan

Support Vlan tag/Untag ,vlan transparent transmission;

Support 4096 VLAN

Support 802.3dd trunk

RSTP

QOS based on port ,VID,TOS and MAC address

IGMP Snooping

802.x flow control

Port stability statistic and monitoring

EPON Function

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation   ,RSTP,etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration   .Different user and different service could provide different QoS by means of   different LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable   system

Support dynamic distance calculation on EMS online

Support RSTP,IGMP Proxy

Dimension

442mm(L)*315mm(W)*44mm(H)

Weight

4.2kg

4.5kg

Power   Supply

220VAC

AC:   90V～240V，47/63Hz

-48DC

DC:-36V～-72V

Power   Consumption

45W

48W

Operating   Environment

Working   Temperature

0～50℃

Storage   Temperature

-40～85℃

Relative   Humidity

5～90%(non-condensing)
Application:

Ordering information

BD-OLT-4000-Mini 4PON OLT,8PON ports(SFP slots),4GE uplink (SFP slots),1U,19inch rack mount,power AC 220V or DC 48V
BD-4311S-E2CDA EPON OLT SFP module , Tx1490nm/Rx1310nm ,1.25Gbps/1.25Gbps, 1000BASE-PX20, 0oC ~ +70oC,DDM
BDTR-GB-P1RC 10/100/1000M auto negotiable electric SFP ,used for uplink electric port


Product Tags: OLT , EPON OLT , 4PON Port EPON OLT
