Fiber to Home 16 Ports GEPON OLT

Fiber to Home 16 Ports GEPON OLT thumbnail-1
Fiber to Home 16 Ports GEPON OLT thumbnail-2
Fiber to Home 16 Ports GEPON OLT thumbnail-3
Fiber to Home 16 Ports GEPON OLT photo-1

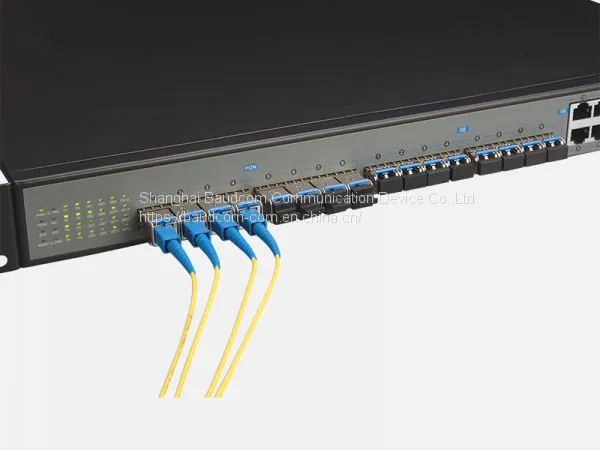

Fiber to Home 16 Ports GEPON OLT photo-2
Fiber to Home 16 Ports GEPON OLT photo-3
US$ 1350 - 1450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-OLT-1600
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baudcom
Place of Origin China
Model Number BD-OLT-1600

Overview:

Baudcom   EPON OLT series products  is 1U high 19   inch rack mount  product. The features   of the OLT are small,  convenient, flexible,  easy to    deploy, high  performance.  It is    appropriate  to deploy  in an

compact   room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera,   Enterprise LAN and IOT applications. It is a high

performance   products.

BD-OLT-1600   provides 4GE(copper)  and 4GE optical   interface,  2*10Gb uplink interface,   and 16  EPON

ports   for downstream. It can support 1024 ONUs under 1:64 splitter ratio.


Specification:



  ItemItem

 BO-OLT-1600

Chassis

Rack

1U 19 inch standard box





Uplink   Port

QTY

Copper

Optical   interface

10Gb uplink interface

10

10/100/1000M   auto-negotiable,RJ45:4pcs

4 GE

2*10Gb





  PON Port



QTY

Physical   Interface

Connector Type

Max splitting ratio

16

SFP Slots

1000BASE-PX20+

1000BASE-PX20+

Management   Ports



1*100BASE－TX outband port; 1CONSOLE port







PON   Port

Specification

（Apply   to

C-DataPON

module）



Transmission   Distance

PON port speed

Wavelength

Connector

Fiber Type

TX Power

Rx Sensitivity

SaturationOptical   Power

20KM

Symmetrical   1.25Gbps

1490nm   TX,1310nm RX

SC/PC

9/125μm SMF

+2～+7dBm

-27dBm

-6dBm



10Gb SFP+ Port

  Specification

  （Apply   to

    C-Data 10Gb

    module）

Transmission Distance

PON port speed

Wavelength

Connector

Fiber Type

TX Power

Rx Sensitivity

10KM

8.5-10.51875Gbps



1310nmTX，

LC

Single mode   with dual fiber

-8.2~+0.5 dBm

-12.6dBm





 Management Mode

 Management   Function



SNMP, Telnet,   CLI management mode.

Fan Group   Detecting

Port Status   monitoring and configuration management;

Layer-2 switch   configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;

EPON management   function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU   configuration and management

User management

Alarm   management



   Layer-two   Switch













     EPON Function



Support port   VLan and protocol Vlan

Support Vlan   tag/Untag ,vlan transparent transmission;

Support 4096 VLAN

Support 802.3dd   trunk

RSTP

QOS based on   port ,VID,TOS and MAC address

IGMP Snooping

802.x flow   control

Port stability   statistic and monitoring

Support   port-based rate limitation and bandwidth control;

In compliant   with IEEE802.3ah Standard

Up to 20KM transmission   Distance

Support  data     encryption,  group   broadcasting,  port     Vlan  separation,

RSTP, etc.

Support Dynamic   Bandwidth Allocation (DBA)

Support

oftware;ONU uto-discovery/Link detection/remote u pgrade   of

Support VLAN   division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration.Different   service could provide different QoS by means of different LLID channels

Support   power-off alarm function ,easy for link problem detection

Support   broadcasting storm resistance function

Support port   isolation between different ports

Support ACL and   SNMP to configure data packet filter flexibly

Specialized   design  for system  breakdown prevention  to maintain stable ystem

Support dynamic   distance calculation on EMS online

Support   RSTP,IGMP Proxy

      Dimension

Weight

440*350*44(mm*mm*mm）

6kg

      Power   Supply



220VAC

-48DC

AC: 90V～240V，47/63Hz

DC:-36V～-72V

  Power   Consumption

70w

     Operating

    Environment



Working   Temperature

Storage   Temperature

Relative Humidity

0～50℃

-40～85℃



5～90%(non-condensing)


Ordering information:

BD-OLT-1600     EPON OLT, 16PON ports(SFP slots), 4GE+2*10G uplink, 1U,19inch rack mount,power AC 220V or DC 48V.


Product Tags: OLT , GEPON OLT , 16 Ports GEPON OLT
