Automotive Interior Decorations Combustion Tester ISO 3795 Flame Performance Tester
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
gold
Place of Origin:
China
Model Number:
GD 3795
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
7 days
Related Products
-
Combustion Calorimeter of Building Material ISO 14402US$ 1 - 2MOQ: 1 Set -
Non-Combustibility Tester for Building Material ISO 1182US$ 1 - 2MOQ: 1 Set
-
Glow Wire Combustion Tester IEC 60695US$ 1 - 2MOQ: 1 Set
-
Vertical Cable VW-1 Flame Tester UL 1518/ISO 9772US$ 1 - 2MOQ: 1 Set
-
Needle Flame Tester IEC 60695US$ 1 - 2MOQ: 1 Set
Brand Name
gold
Place of Origin
China
Model Number
GD 3795
Product Description
Introduction:

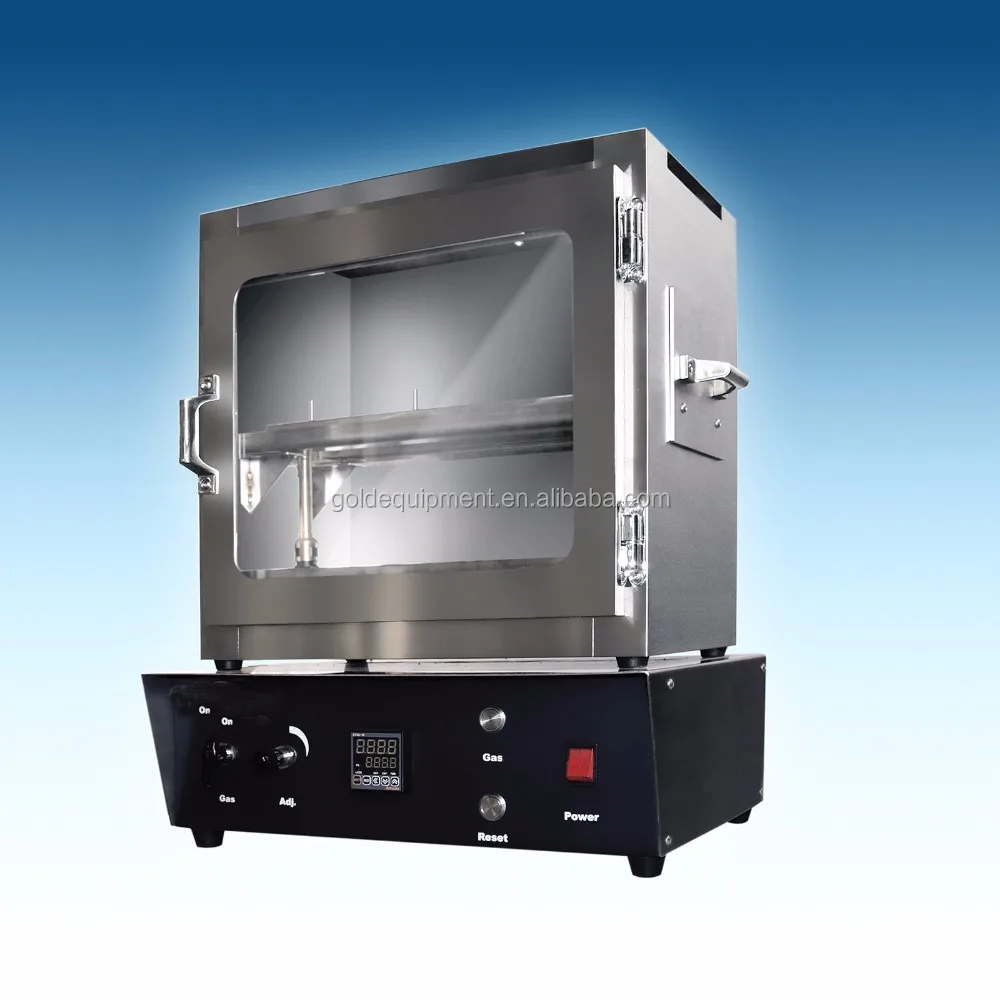

car inner decorations combustion test is designed and manufactured according to ISO3795 standards and relevant clauses. Apply to identify vehicles (cars, multipurpose passenger car, truck and bus) interior material horizontal burning test. A high degree of automation control system with automatic ignition. Temperature and time digital display, easy observation and records; stable and reliable to use.
Standard
1. GBT8410
2. ISO3795
3. FMVSS302
2. ISO3795
3. FMVSS302
Feature
1, Advanced industrial appearance and control design;
2, Model 304 Stainless steel structure housing; bottom ventilation hole spacing: horizontal 63.5mm, longitudinal 127mm.
3, The number of ventilation holes: 10, diameter 19mm.
4, an inner diameter of the burner Φ9.5mm. Blowtorch top center at the free end of the specimen from 19mm
6, Record time can be adjusted within the range of 0 to 9999 seconds.
7, Equipped with: stainless steel sample holder and sample templates;
8, Combustion chamber is assembled steel ruler; precision: 1mm; combustion length can be easily read; Do not remove the sample to measurement burn length;
9, The imported Bunsen burner from USA Humboldt, combustion flame higher precision, adjustment range 20mm ~ 100mm.
10, The flame measuring device; flame height 38mm
11, A high degree of test automation, test data accurate, easy to operate
2, Model 304 Stainless steel structure housing; bottom ventilation hole spacing: horizontal 63.5mm, longitudinal 127mm.
3, The number of ventilation holes: 10, diameter 19mm.
4, an inner diameter of the burner Φ9.5mm. Blowtorch top center at the free end of the specimen from 19mm
6, Record time can be adjusted within the range of 0 to 9999 seconds.
7, Equipped with: stainless steel sample holder and sample templates;
8, Combustion chamber is assembled steel ruler; precision: 1mm; combustion length can be easily read; Do not remove the sample to measurement burn length;
9, The imported Bunsen burner from USA Humboldt, combustion flame higher precision, adjustment range 20mm ~ 100mm.
10, The flame measuring device; flame height 38mm
11, A high degree of test automation, test data accurate, easy to operate
Specification
