Introduction:

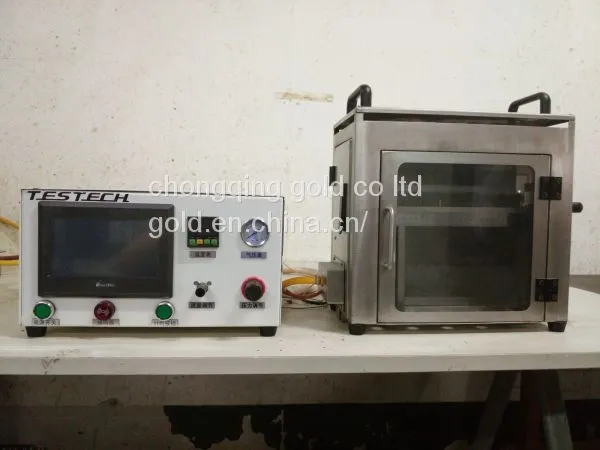

car inner decorations combustion test is designed and manufactured according to ISO3795 standards and relevant clauses. Apply to identify vehicles (cars, multipurpose passenger car, truck and bus) interior material horizontal burning test. A high degree of automation control system with automatic ignition. Temperature and time digital display, easy observation and records; stable and reliable to use.
International standards:
1. GBT8410
2. ISO3795
3. FMVSS302
Features:
1, Advanced industrial appearance and control design;
2, Model 304 Stainless steel structure housing; bottom ventilation hole spacing: horizontal 63.5mm, longitudinal 127mm.
3, The number of ventilation holes: 10, diameter 19mm.
4, an inner diameter of the burner Φ9.5mm. Blowtorch top center at the free end of the specimen from 19mm
6, Record time can be adjusted within the range of 0 to 9999 seconds.
7, Equipped with: stainless steel sample holder and sample templates;
8, Combustion chamber is assembled steel ruler; precision: 1mm; combustion length can be easily read; Do not remove the sample to measurement burn length;
9, The imported Bunsen burner from USA Humboldt, combustion flame higher precision, adjustment range 20mm ~ 100mm.
10, The flame measuring device; flame height 38mm
11, A high degree of test automation, test data accurate, easy to operate
specification
| Size | 200(W)×381(D)×356(H)mm |
| Power | AC 220V , 50/60Hz, 10A |
| Weight | 50KG |
| Model | GD8410 |
